UAD Powered Plug-Ins Manual - 62 - Chapter 4: Cooper Time Cube
Echo Volume
A/B
This control determines the volume of the delayed signal. Rotate the control
clockwise for louder echo. Up to +10 dB of gain is available at the maximum
setting. Reducing the control to its minimum value will mute the delay.
Tip: Click the “ECHO VOL” label text to mute/unmute the delayed output.
Cooper Time Cube Hardware

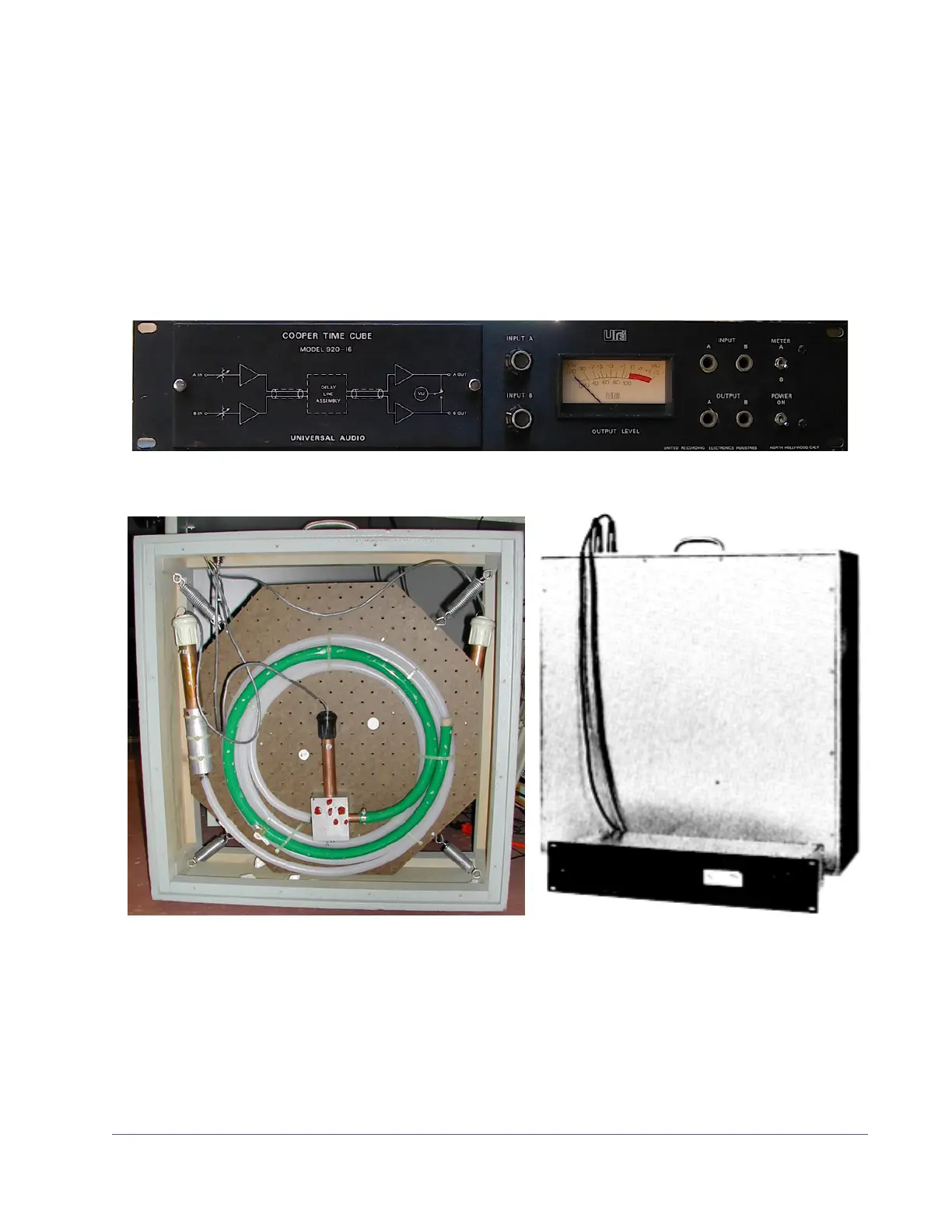

Figure 19. The original Cooper Time Cube hardware front panel
Figure 20. The opened acoustic module and the complete system
