Cambridge EQ Controls
Each feature of the Cambridge EQ interface is detailed below.
Response Curve
Display
The Response Curve Display plots the frequency response of the current Cam-
bridge EQ settings. It provides instant visual feedback of how audio is being
processed by the equalizer.
The entire audio spectrum from 20 Hz to 20 kHz is displayed along the hor-
izontal axis. Gain and attenuation of frequencies (up to ±40 dB) are dis-
played along the vertical axis. The vertical resolution of this display can be
modified with the Zoom buttons.
Response Curve Color
The color of the response curve depends on the value of the A/B Selector con-
trol. When A is active, the curve is yellow. When B is active, the curve is
green (see “A/B Selector Button” on page 49). When Cambridge EQ is dis-
abled, the response curve is grey.

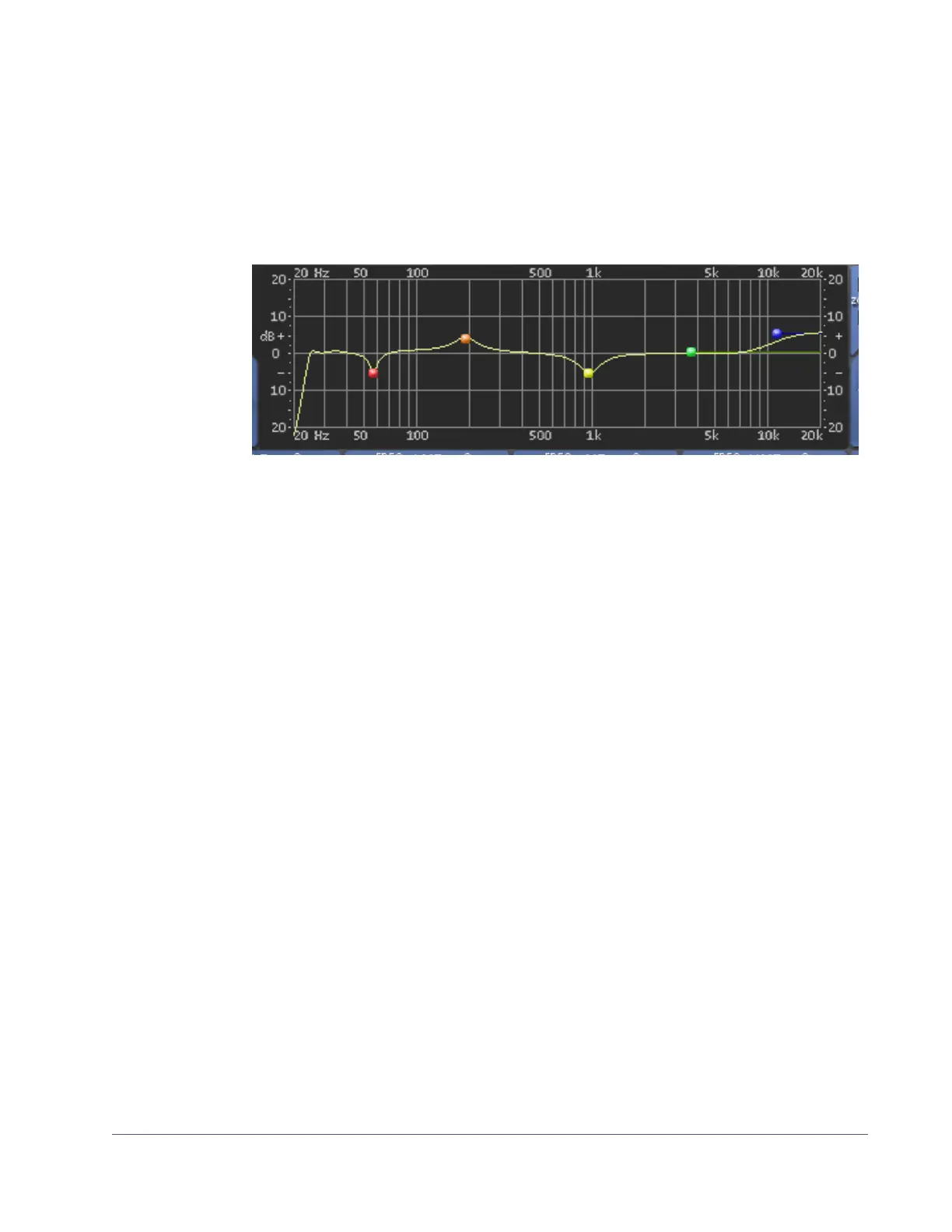

Figure 6. Cambridge EQ Response Curve display
