6 Operating Uponor Thermostats T-36 and T-38 and Timer I-36
6.1 Screen layout

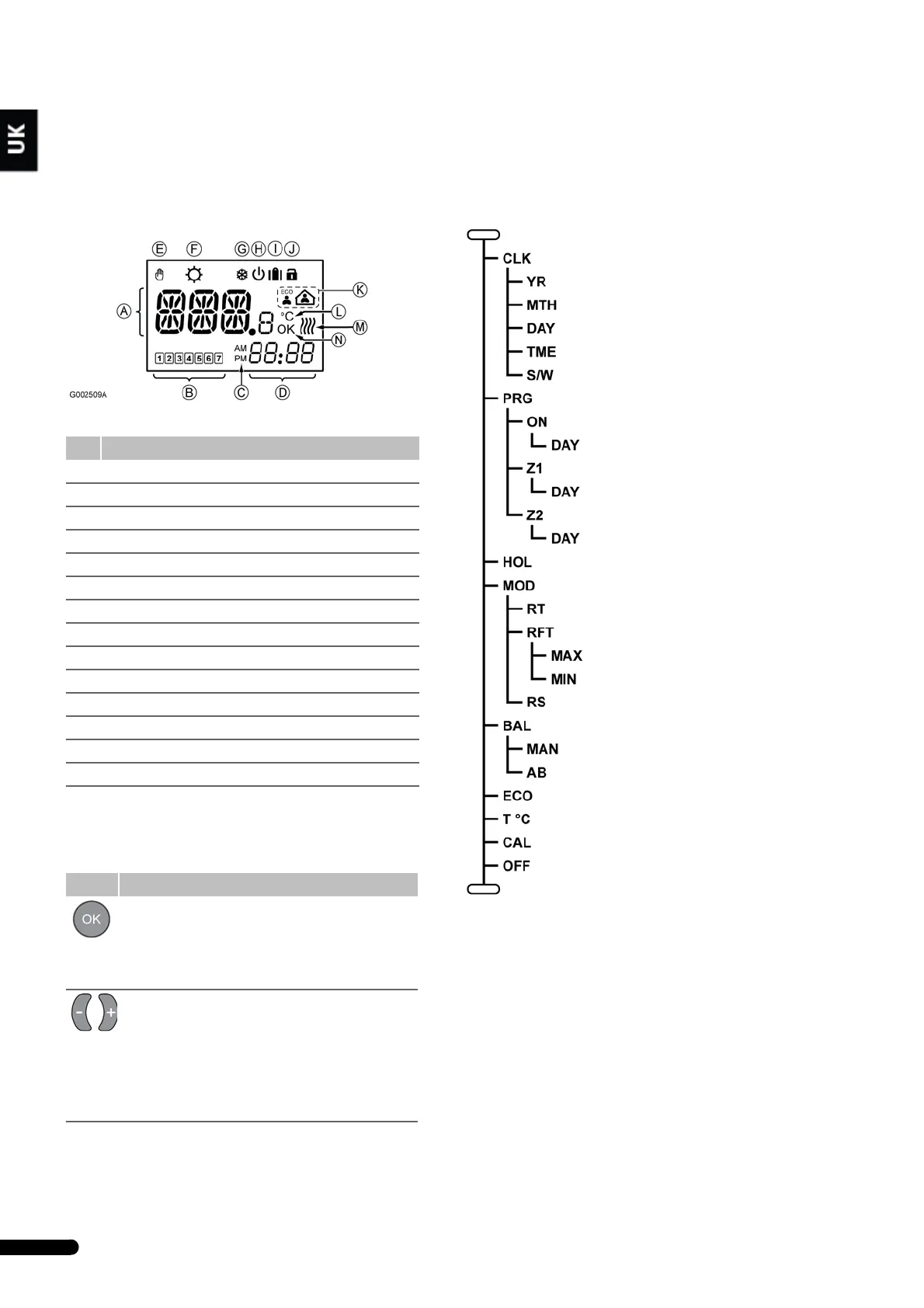

The figure below shows all possible symbols and characters that
can be displayed on the screen:
6.2 Operating buttons
The following three buttons are used to operate the Uponor
Digital Thermostats and Timer:
6.3 Screen menus
The screen menu below is used in Uponor Thermostats T-36 and
T-38 and Timer I-36
Pos. Description
A Temperature, menu, or message
B (T-38 and I-36 only) Weekday indicators
C (T-38 and I-36 only) AM/PM indicators
D (T-38 and I-36 only) Digital clock or software version
E Manual override
F Heating mode
G Cooling mode
H Standby mode
I Holiday mode
J Lock mode
K Comfort, economy, or holiday mode
L Temperature unit
M Heating/Cooling demand
N OK indicator
Button Description
The OK button is used to:
• Enter and exit the settings menu (press and hold)
• Confirm a setting
• Enter and exit comfort or economy mode
The minus and plus sign buttons are used to:
• Set the temperature setpoint
• Toggle between comfort and economy modes
• Modify settings in the settings menus
• Enter and exit the lock mode (press and hold
both)
A Run mode
BClock
B Year
B Month
BDay
BTime
BSummer-winter
BProgramming
DOn/off
DDay group
C Zone 1
CDay group
C Zone 2
BDay group
C Holiday
F Regulation
F Room temperature
F Room + floor
F Max.floor limit
F Min. floor limit
F Remote sensor
FBalancing
F Manual
F Auto
EEconomy mode
D Comf./Eco. temp.
F Calibration
A Standby
A Run mode
Notes
A = I-36, T-36, and T-38
B = I-36 and T-38 only
C = I-36 only
D = T-38 only
E = T-36 only
F = T-36 and T-38 only
