Vaillant ecoTEC plus VU Series Installation Manual

0020308120_02 Air/flue pipe installation manual 17
5.6 Installing terminal sets for 60/100 mm
diameter air/flue systems
5.6.1 Minimum clearances for the flue gas terminal
You must comply with the minimum clearances for the flue
gas terminal that are defined in BS 5440, unless the boiler's
manufacturer has given approval to use shorter minimum
clearances that are not considered to be safety-critical.
Vaillant has reduced the minimum clearances for the flue
gas terminal and specifies this in the installation instructions
for the boiler. These are minimum clearances that are to be
used for all types of installation, except for the installation of
the variable terminal set (VTK).
If a variable terminal set is connected to horizontal flue pipe-
work, terminal clearances are reduced for the air inlet. The
terminal clearances on the "new" flue outlet at the end of
VTK remain unchanged.
On the VTK, the minimum clearances for the air inlet A, B
and C (→ Installation instructions for the boiler) to openings
(e.g. a window) are reduced to 150 mm. This means that
the terminal will be at the horizontal flue pipework when a
variable terminal set is connected to the air inlet and can
therefore be installed at a clearance of less than 300 mm
from a window opening or a ventilation tile.

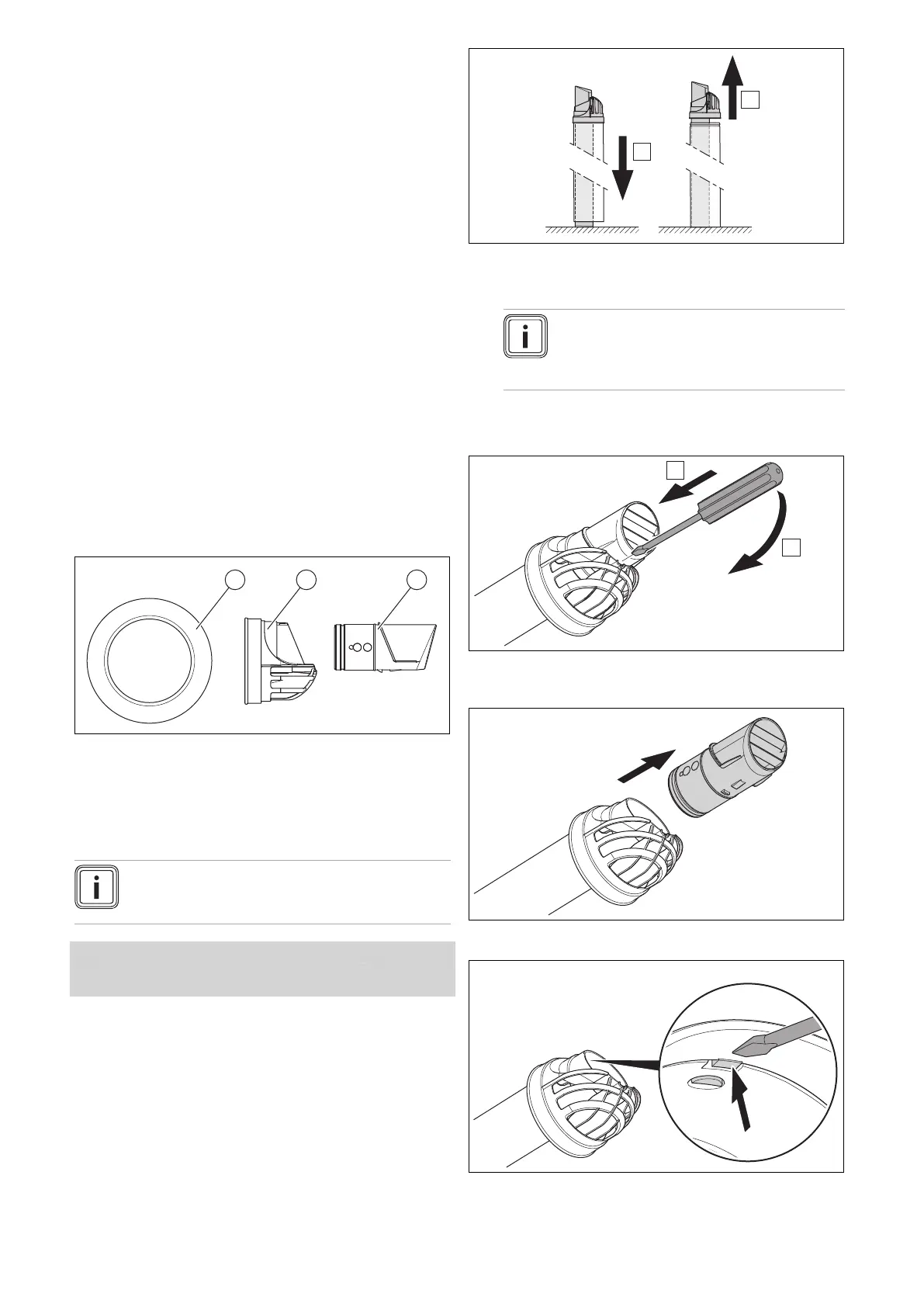

5.6.2 Black terminal set 0020219537
5.6.2.1 Scope of delivery
321
1 Wall collar
2 Terminal piece
3 End pipe
5.6.2.2 Installing the black terminal (change of
colour)
Note
You must install the terminal sets before installing
the flue pipework.
Condition: Terminal secured using screws
▶ Undo the lateral screws.
A
B
1. Detach the terminal with the flue pipe by pushing the
air pipe to the floor.
Note
You cannot reuse the terminal as detaching
the terminal damages the latching lugs in
the terminal.
2. Pull the terminal from the air pipe together with the flue
pipe.
A
B
3. Release the catch between the opening piece and the
end pipe.
4. Pull the end pipe from the opening piece.
5. Release the catch between the opening piece and the
flue pipe.
