52 Air/flue pipe installation manual 0020308120_02
Offset Length of
the air pipe
Height Offset Length of
the air pipe
Height in Offset Length of
the air pipe
Height in
> 100 to <
170
not possible not possible 360 379 480 565 669 685
365 386 485 570 676 690
165 103 285 370 393 490 575 683 695
170 110 290 375 400 495 580 690 700
175 117 295 380 407 500 585 697 705
180 125 300 385 414 505 590 704 710
185 132 305 390 422 510 595 711 715
190 139 310 395 429 515 600 719 720
195 146 315 400 436 520 605 726 725
200 153 320 405 443 525 610 733 730
205 160 325 410 450 530 615 740 735
210 167 330 415 457 535 620 747 740
215 174 335 420 464 540 625 754 745
220 181 340 425 471 545 630 761 750
225 188 345 430 478 550 635 768 755
230 195 350 435 485 555 640 775 760
235 202 355 440 492 560 645 782 765
240 209 360 445 499 565 650 789 770
245 216 365 450 506 570 655 796 775
250 224 370 455 513 575 660 803 780
255 231 375 460 520 580 665 810 785
260 238 380 465 528 585 670 818 790
265 245 385 470 535 590 675 825 795
270 252 390 475 542 595 680 832 800
275 259 395 480 549 600 685 839 805
280 266 400 485 556 605 690 846 810
285 273 405 490 563 610 695 853 815
290 280 410 495 570 615 700 860 820
295 287 415 500 577 620 705 867 825
300 294 420 505 584 625 710 874 830
305 301 425 510 591 630 715 881 835
310 308 430 515 598 635 720 888 840
315 315 435 520 605 640 725 895 845
320 323 440 525 612 645 730 902 850
325 330 445 530 620 650 – – –

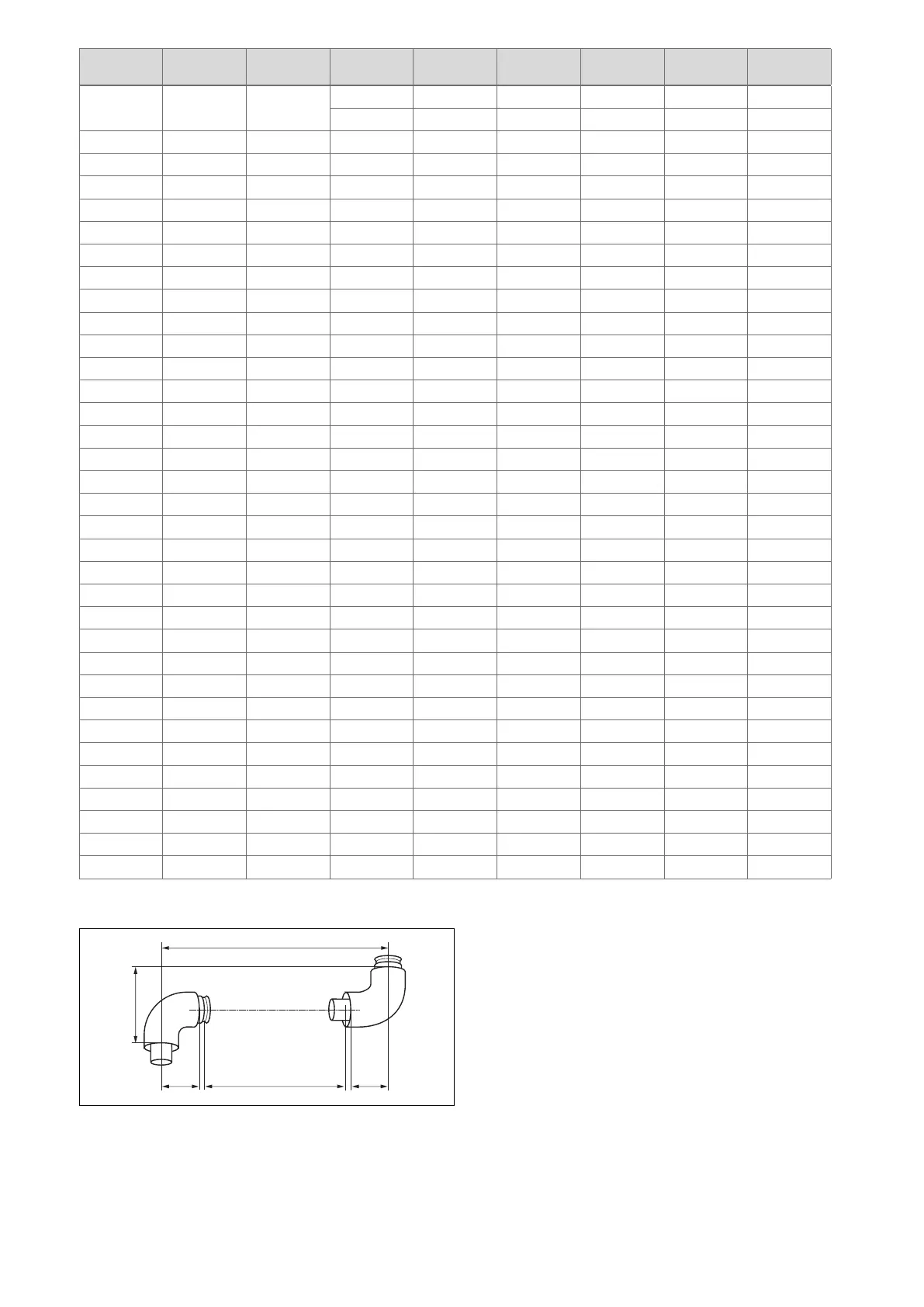

5.14.3.5 Installing the 87° elbow, 80/125 mm diameter
A Offset B Length of the air pipe
▶ Measure the offset (A), e.g. with 400 mm.
▶ Use this value from the table to determine the length of the air pipe (B) = 200 mm.
◁ From that, the corresponding flue pipe length is calculated as 200 + 40 = 240 mm
