34 Air/flue pipe installation manual 0020308120_02

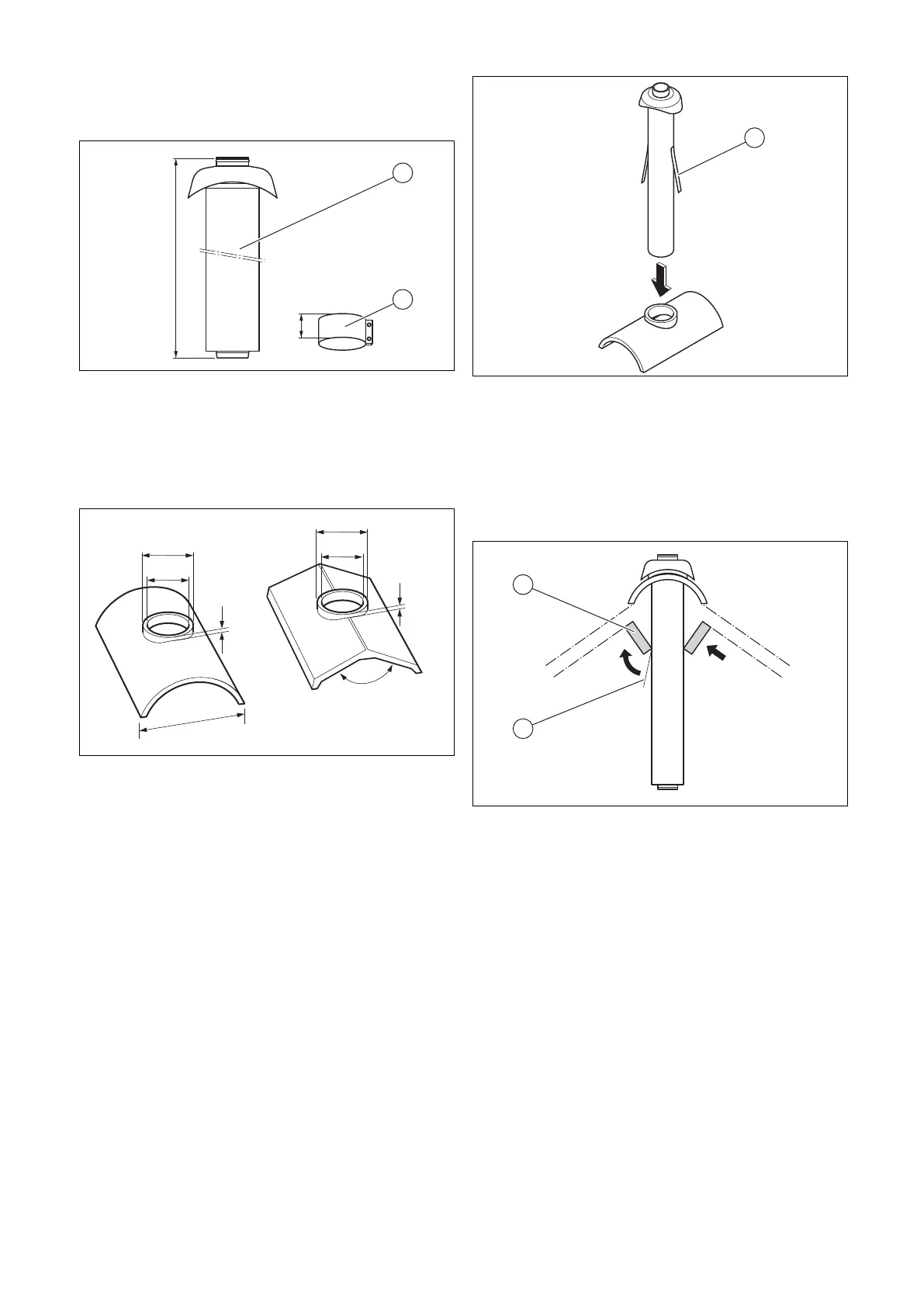

5.11.2 Installing the ridge tiles for the 60/100 mm
diameter roof duct
5.11.2.1 Scope of delivery, article number 303982
(black)
1 Ridge tile terminal,
black
2 48 mm air pipe clamp
5.11.2.2 Ridge roof duct
According to the specifications from the tile manufacturer, a
suitable ridge tile must be installed.
130
133
130
103
103
≥25
≥20
≤125°
Suitable ridge tiles are manufactured by:
Repco Roof Tiles Limited
49 Maurice Gaymer Road
Attleborough
Norfolk, NR17 2QZ
enquiries@repcorooftiles.co.uk
Tel: +44 (0) 808 1333001
5.11.2.3 Installing the ridge tile terminal
1. Install the ridge tile in accordance with the specifica-
tions from the tile manufacturer.
2. Insert the ridge tile terminal into the ridge tile.
3. Align the ridge tile terminal in such a way that the two
fixing tabs (1) are at a right angle to the course of the
ridging. This ensures that the combustion air can be
extracted from between the ridge tile and the air hood
above the ridge tile.
4. Bend the two fixing tabs
(2) on one bar (1).
5. Use nails or screws to secure the fixing tabs.
6. Install the boiler (→ Installation instructions for the boil-
er).
7. Install the extensions. (→ Page 46)
8. Install the elbows (→ Page 49).
9. Connect all of the pipe joints with air pipe clamps.
(→ Page 54)
10. Connect the ridge tile terminal and the boiler to exten-
sions and elbows.
