0020308120_02 Air/flue pipe installation manual 23

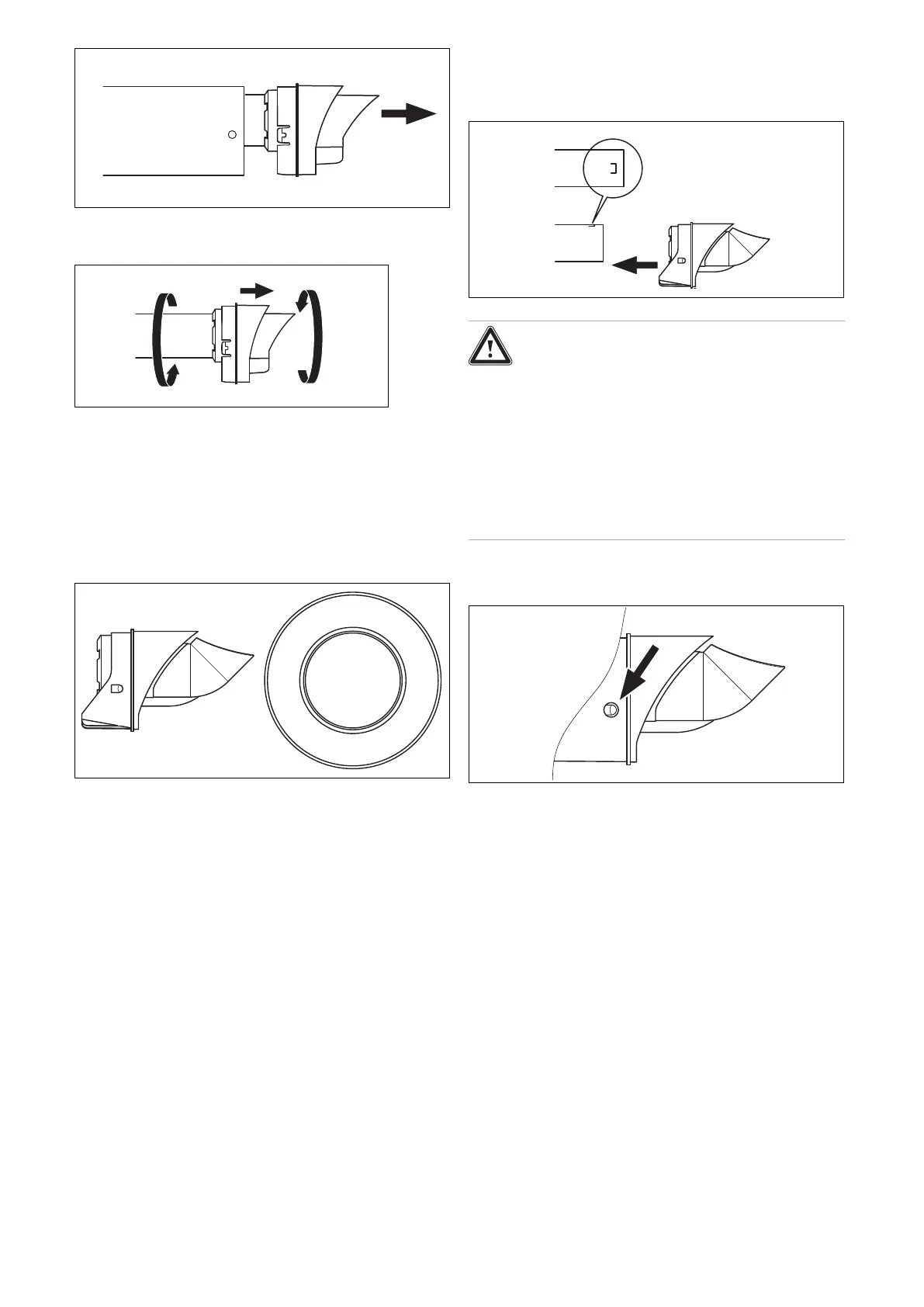

4. Pull the terminal out of the air pipe together with the
flue pipe.
5. Release the catch between the terminal and the flue
pipe by twisting the two components in opposite direc-
tions.
6. Remove the terminal from the flue pipe.
5.8.3 Deflector set (article number 0020060584 /
…85)
5.8.3.1 Scope of delivery
– Deflector set, DN 60, PP, black (article number
0020060584)
– Black terminal
– External wall seal
– Deflector set, DN 60, PP, white (article number
0020060585)
– White terminal
▶ Check the scope of delivery.
5.8.3.2 Installing the deflector set before installing
the flue pipework
1. Remove the terminal. (→ Page 22)
Danger!
Risk of poisoning due to escaping flue
gas.
When disconnecting the pipes, flue gases
may escape.
▶ Ensure that the latching lug on the upper
side of the terminal securely snaps into
place in the flue pipe's recess.
▶ Ensure that the seal is positioned cor-
rectly.
2. Push the terminal into the flue pipe so that it snaps into
place.
3. Slide the flue pipe, together with the deflector, back
into the air pipe so that both latching lugs snap into
place.
– The air pipe's seam must lie at the top.
4. Install the horizontal air/flue pipe.
5.8.3.3 Installing the deflector set after installing the
flue pipework
1. Remove the terminal. (→ Page 22)
