Vaillant ecoTEC plus VU Series Installation Manual

50 Air/flue pipe installation manual 0020308120_02
Offset Length of
the air pipe
Height Offset Length of
the air pipe
Height in Offset Length of
the air pipe
Height in
280 256 400 480 539 600 680 822 800
285 263 405 485 546 605
290 270 410 490 553 610
295 277 415 495 560 615
300 284 420 500 567 620
305 291 425 505 574 625
310 298 430 510 581 630
315 306 435 515 588 635
320 313 440 520 595 640

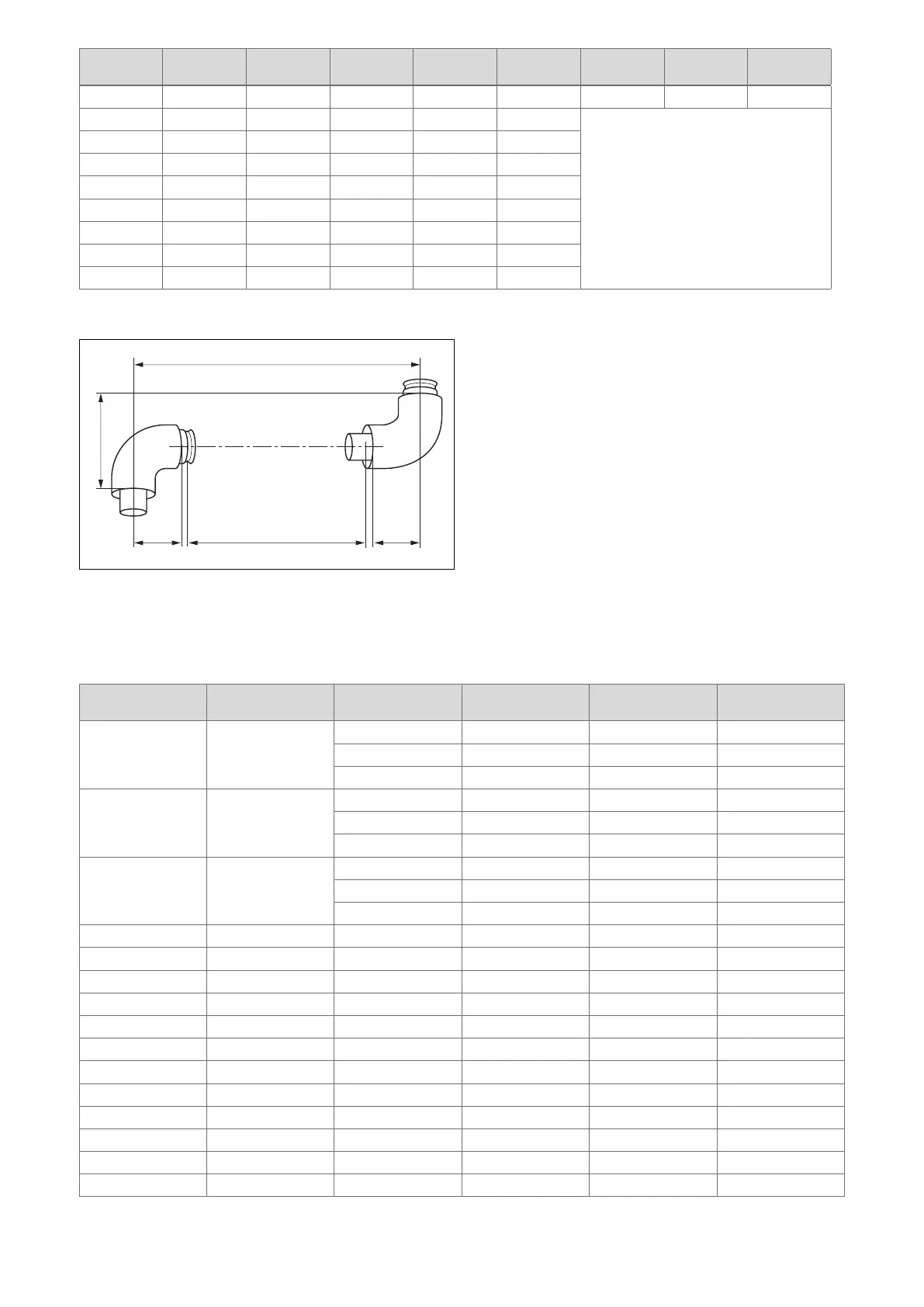

5.14.3.3 Installing the 87° elbow, 60/100 mm diameter
190
95
95
10
10
A
B
A Offset B Length of the air pipe
▶ Measure the offset (A), e.g. with 400 mm.
▶ Use this value from the table to determine the length of the air pipe (B) = 190 mm.
◁ From that, the corresponding flue pipe length is calculated as 190 + 40 = 230 mm
Offset Length of the air
pipe
Offset Length of the air
pipe
Offset Length of the air
pipe
> 190 to
< 210
0 470 260 690 480
475 265 695 485
480 270 700 490
> 215 to
< 265
not possible 485 275 705 495
490 280 710 500
495 285 715 505
> 270 to
< 290
80 500 290 720 510
505 295 725 515
510 300 730 520
295 85 515 305 735 525
300 90 520 310 740 530
305 95 525 315 745 535
310 100 530 320 750 540
315 105 535 325 755 545
320 110 540 330 760 550
325 115 545 335 765 555
330 120 550 340 770 560
335 125 555 345 775 565
340 130 560 350 780 570
345 135 565 355 785 575
350 140 570 360 790 580
