4.4.1 Admissible forces at controller
NOTICE
Force at pedestal
In case higher force is applied, the pedestal could be permanently damaged.
– Do not pushing, shocking load, or stressing the valve controller
– Do not deposit anything at valve controller
The admissible force at valve controller in regards to the pedestal is shown in table
below

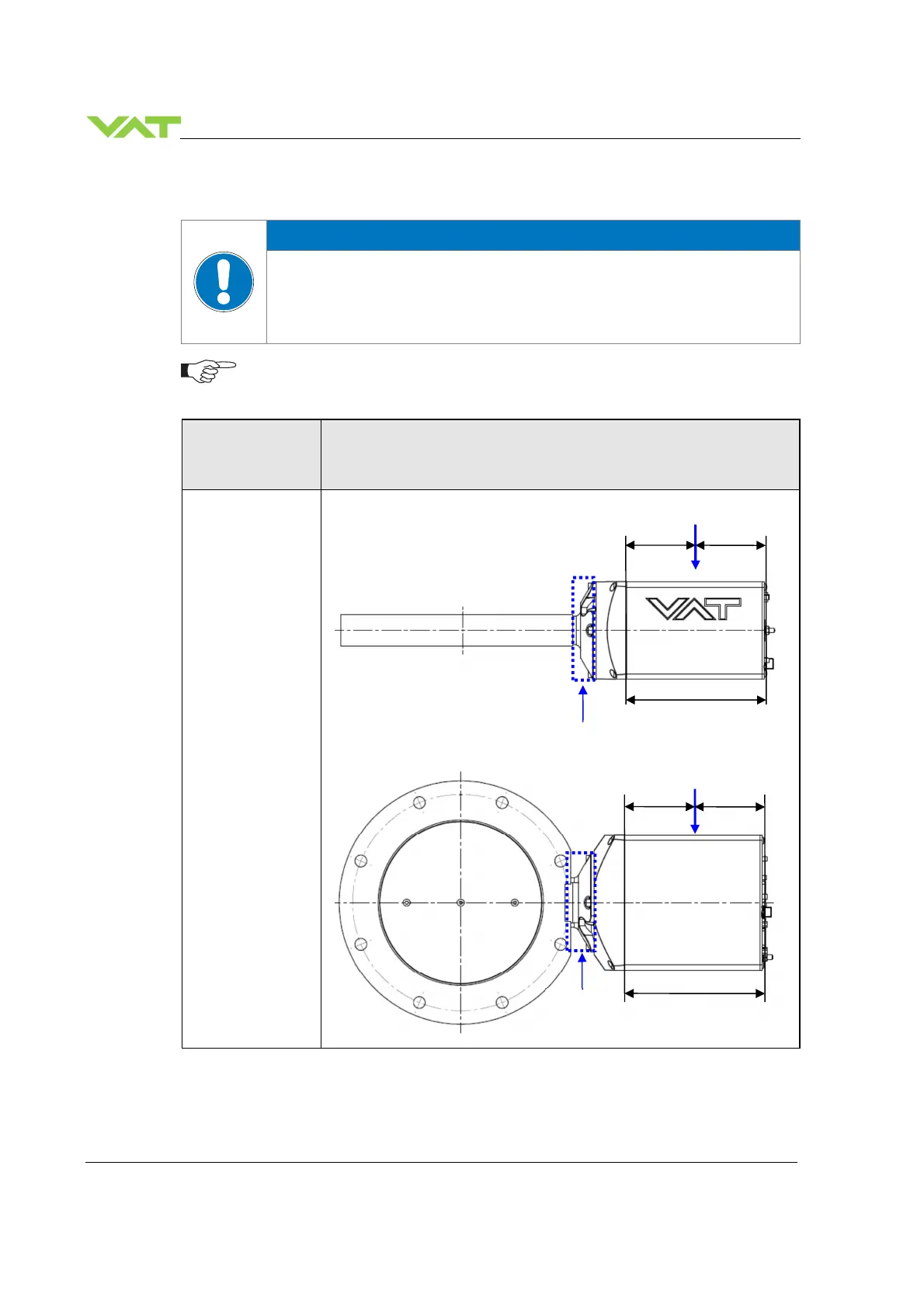

Admissible force
«F»
Overview
F = Force
a = middle of aluminium part of controller (b / 2)
400 N
b
a
a
F
pedestal
b
pedestal
a
a
F
