VAT 612 Series User Manual

Series 612 INSTALLATION
605262EE Edition 2018-08-20 31/
116
4.5.6 EtherCAT interface connection
The EtherCAT interface is galvanic isolated from control unit.

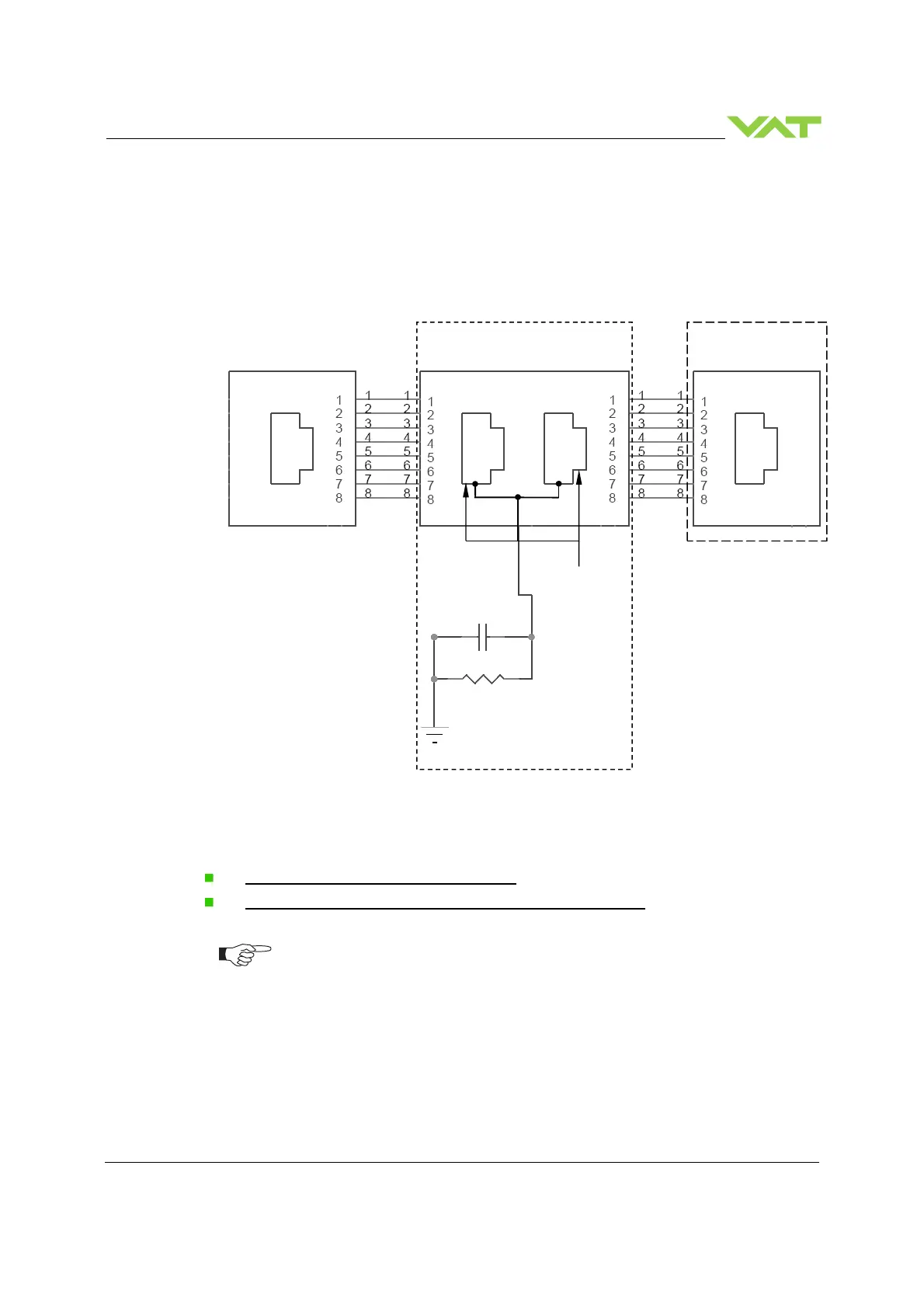

4.5.6.1 EtherCAT installation (example)
4.5.6.2 EtherCAT network and cable
Connector type: RJ45 standard connector
Cable: CAT5, 6 or 7 STP (shielded twisted pair), not crossover
Cable length between Master and Slaves max. 100 m.
For all detail information about EtherCAT refer to EtherCAT homepage:
http://www.ethercat.org/
RJ45
OUT
Connector
housing
Cable
C = 1nF/2kV
R = 1MΩ
PE = Protective Earth
Master (Slave X)
VAT Valve
Slave X
optional
RJ45 RJ45 RJ45
OUT IN IN
Cable
