VAT 612 Series User Manual

INSTALLATION Series
612
32/116 Edition 2018-08-20 605262EE
4.5.7 LOGIC I/O

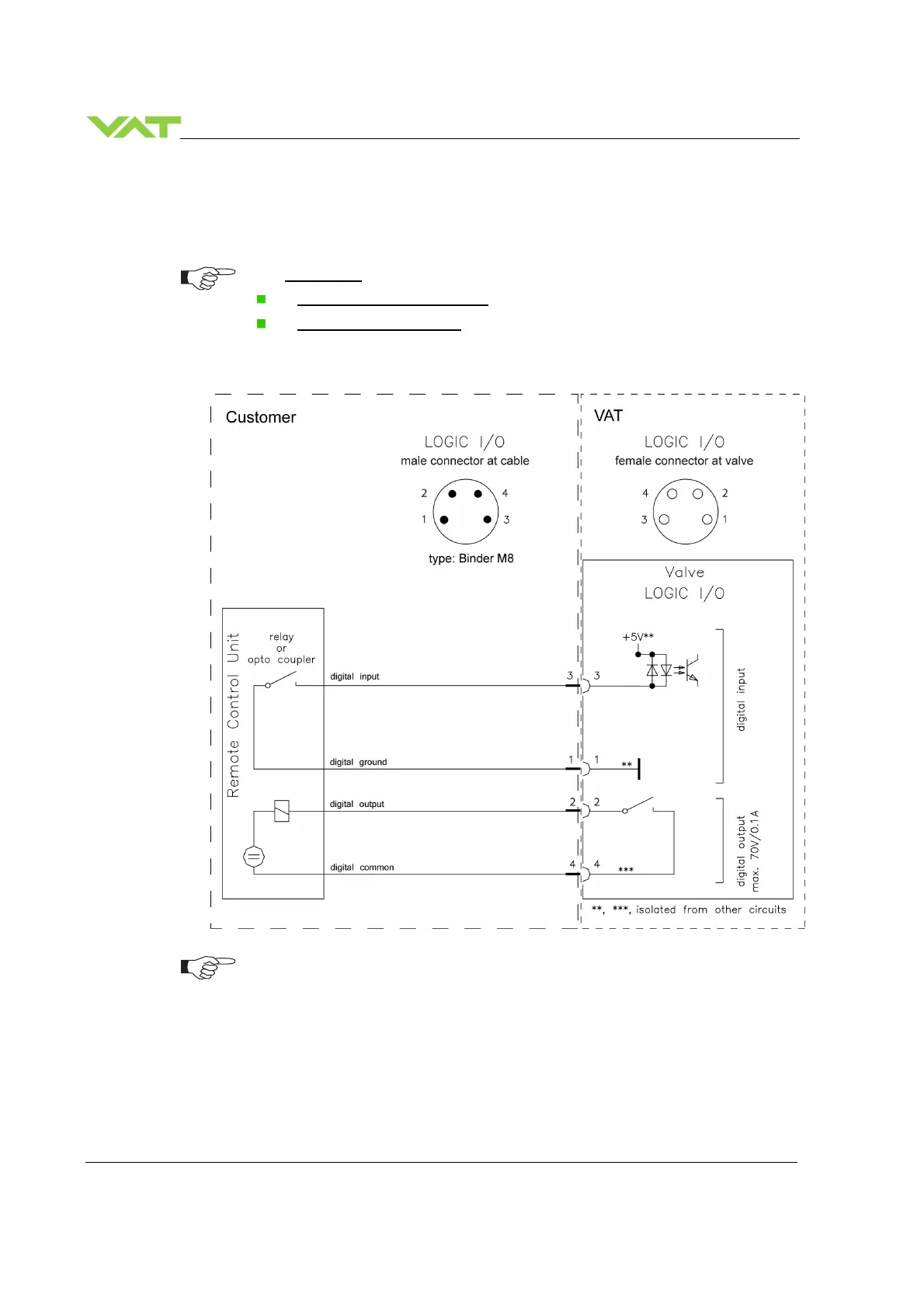

This interface allows for remote operation by means of a command set based on the EtherCAT protocol.
In addition there is a digital input and a digital output. Digital input may only be operated by a switch.
Active
digital input
has:
higher priority than EtherCAT commands
higher priority than Local commands
Configuration with switch for digital input:
Do not connect other pins than indicated in the schematics above! Connector type:
Binder M8 (99-3363-00-04).
