Vision 1612 User Manual

Page 13
Connection of Power, Cables, and Controllers
Additional boxes may have been shipped along with your table, depending on the system ordered.
These will typically include a control unit and associated cables. The proper connection of these
cables is essential. Check the appropriate user’s manuals for your controller before attempting to
connect them it to the table. After connection of the cables as directed by your controller manual,
power can be connected to the system. It is suggested that a surge protector be used.
An “Auxiliary” Power Strip may have been included with your purchase. This strip is used for
automatically starting and stopping accessories via the Vision Series 3 controller’s “AUX ON/
OFF” button. Typical uses include: Vacuum Systems, Air-Assist units, oiler, lighting, 3.25 HP
Router motor (Porter cable Only) etc. Please DO NOT plug any of your Vision equipment (except
the vacuum system) into this strip, as it will not function unless the Vision Series 3 controller is
powered on. This is not possible with the “Auxiliary” strip, because it is always OFF unless the
controller is powered on and “AUX ON/OFF” is green.
Chapter 2
Chapter 2:
Setting Up The Table

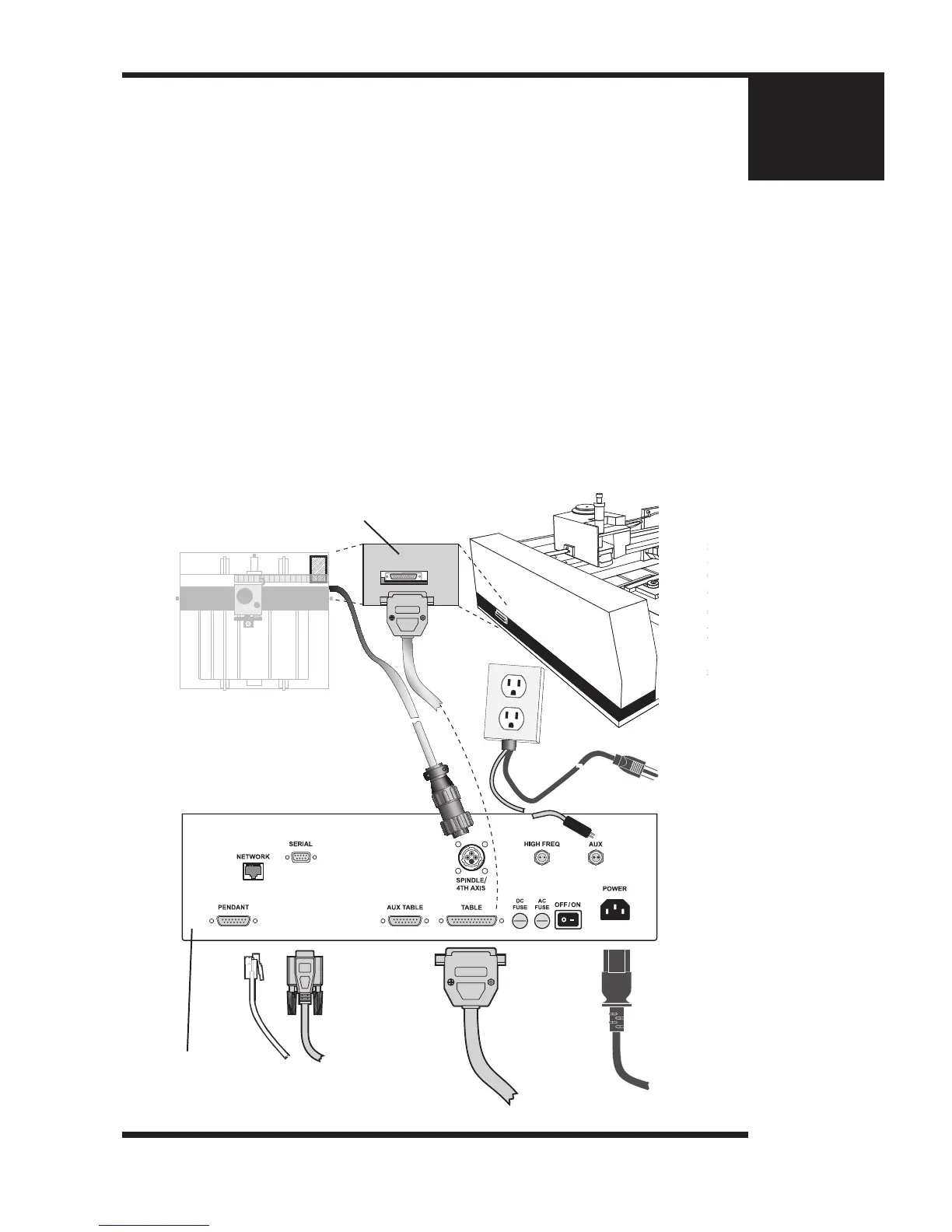

(Figure 2.1) Breakout box with 25-pin connection to the Vision Series 3 controller
Back view of the
Vision Series 3
controller
Breakout box
