Chapter 9
LUBRICATION

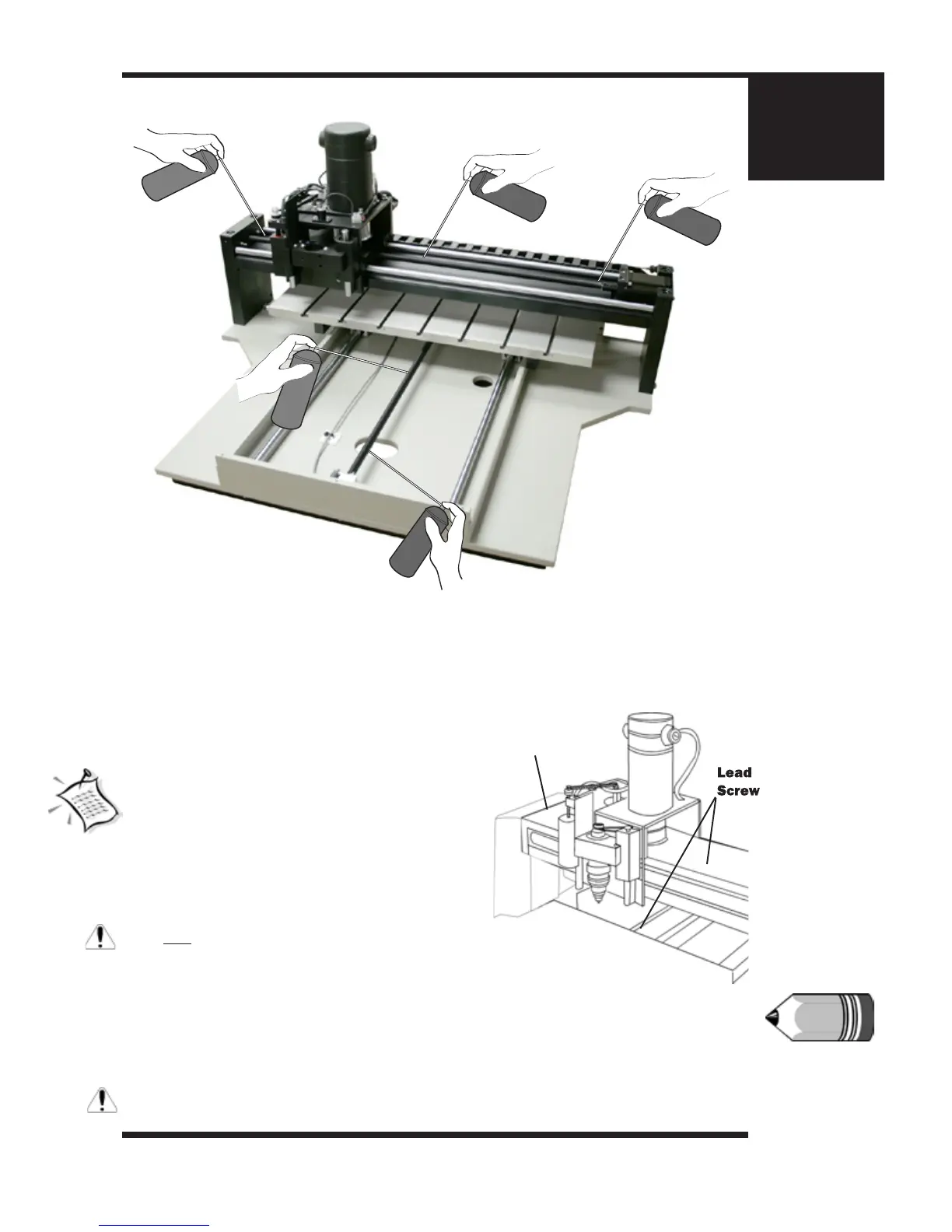

Lubricating the X-Axis, Y-Axis and Z-Axis lead screws
(ALL MODELS)
A light lubrication of the X and Y and Z lead screws should
be performed after every month of usage (see schedule on
next page). Use silicone lubricant spray only. Spray a light
coating along the entire lead screw.
Note: A nozzle extender attached to the aerosol spray
can help facilitate this procedure and may eliminate
the need to remove the metal covers.
DO NOT use any lubricant other than silicone, as it
may become sticky and cause a buildup that will
cause mechanical failure.
What NOT to lubricate
Many of the bearings and assemblies in your engraving
machine are sealed and/or coated using special low-
friction methods and should not be lubricated.
DO NOT attempt to lubricate the spindle or the spindle bearings. If you suspect
lubrication problems, call Vision for instructions, as further lubrication
may harm the machine.
DO NOT lubricate the X or Y stepper motors.
Lead
Screw
Carriage and
gantry covers are removed.
(Fig 9.4)
