Wacker Neuson RD 27-100 - Dimensions

RD 27 Technical Data
wc_td000249gb.fm 113

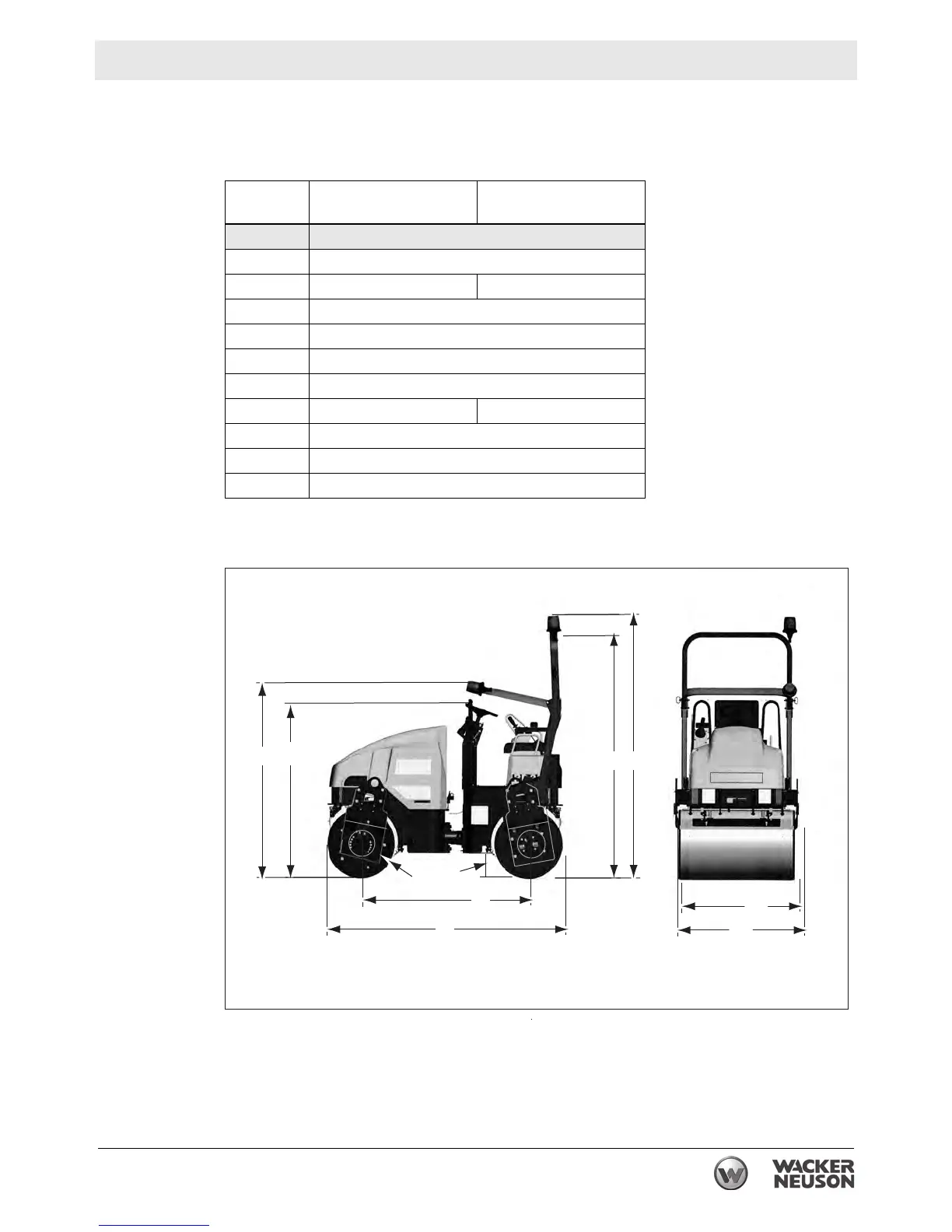

7.6 Dimensions
See graphic: wc_gr004619
RD 27-100 RD 27-120
Ref. Dimension mm (inches)
a 2500 (98.4)
b 1105 (43.5) 1305 (51.4)
c 2775 (109.3)
d 2680 (105.5)—EU version
e 2000 (78.7)
f 1800 (70.9)
g 1000 (39.4) 1200 (47.2)
h Ø700 (27.5)
j 1800 (70.9)
k 262 (10.3)
a
h
f
g
b
d c
j
e
k
wc_gr004619
