Operation RD 27
30 wc_tx000814gb.fm
Checking
Each month, check:
the torque on all of the screws holding the ROPS in place
the ROPS frame for rust, cracks, and any other damage
Rules for re-
installing
When reinstalling the ROPS:
Use the original nuts and bolts.
Use oil to lubricate the bolts before installing the ROPS.
Tighten the bolts to the specified torques.
NOTICE: Do not weld or drill into the ROPS. Drilling or welding on the ROPS will
nullify the ROPS certification.
4.6 Installing the Rotating Beacon
Background
The rotating beacon illuminates and rotates when the key switch is in the ON
position.
Procedure
Follow the procedure below to install the beacon.
1. Thread the power wire (c) through the light staff and fix it to the upper connector.
2. Insert the connector into the light staff.
3. Insert the light staff assembly (a) into the left side of the machine ROPS and
tighten the set screw (b).
4. Slide the rotating beacon (d) onto the light staff.

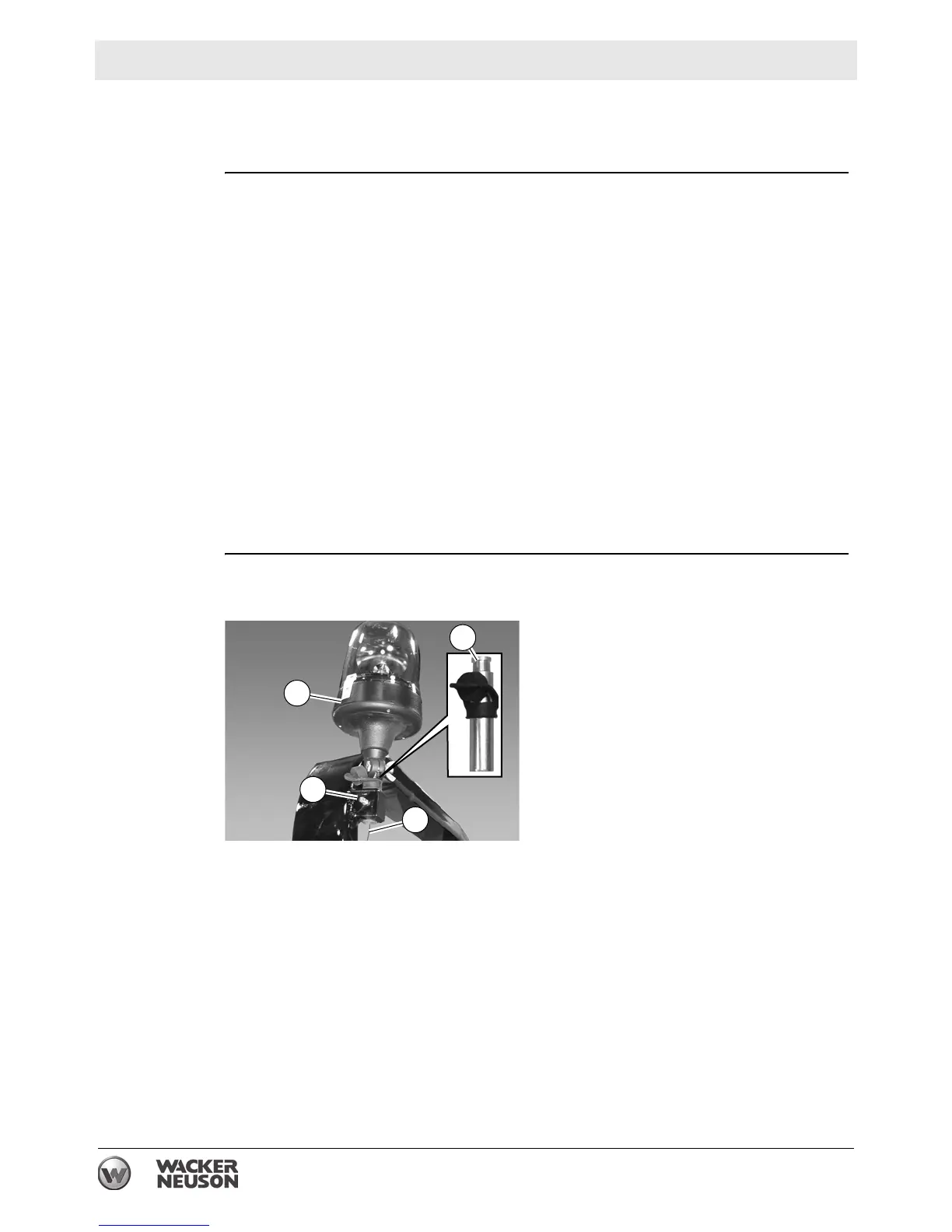

wc_gr004731
a
d
b
c
To Next Page
