Webasto Mazda 6 User Manual

1313440A_EN
13
Mazda 6

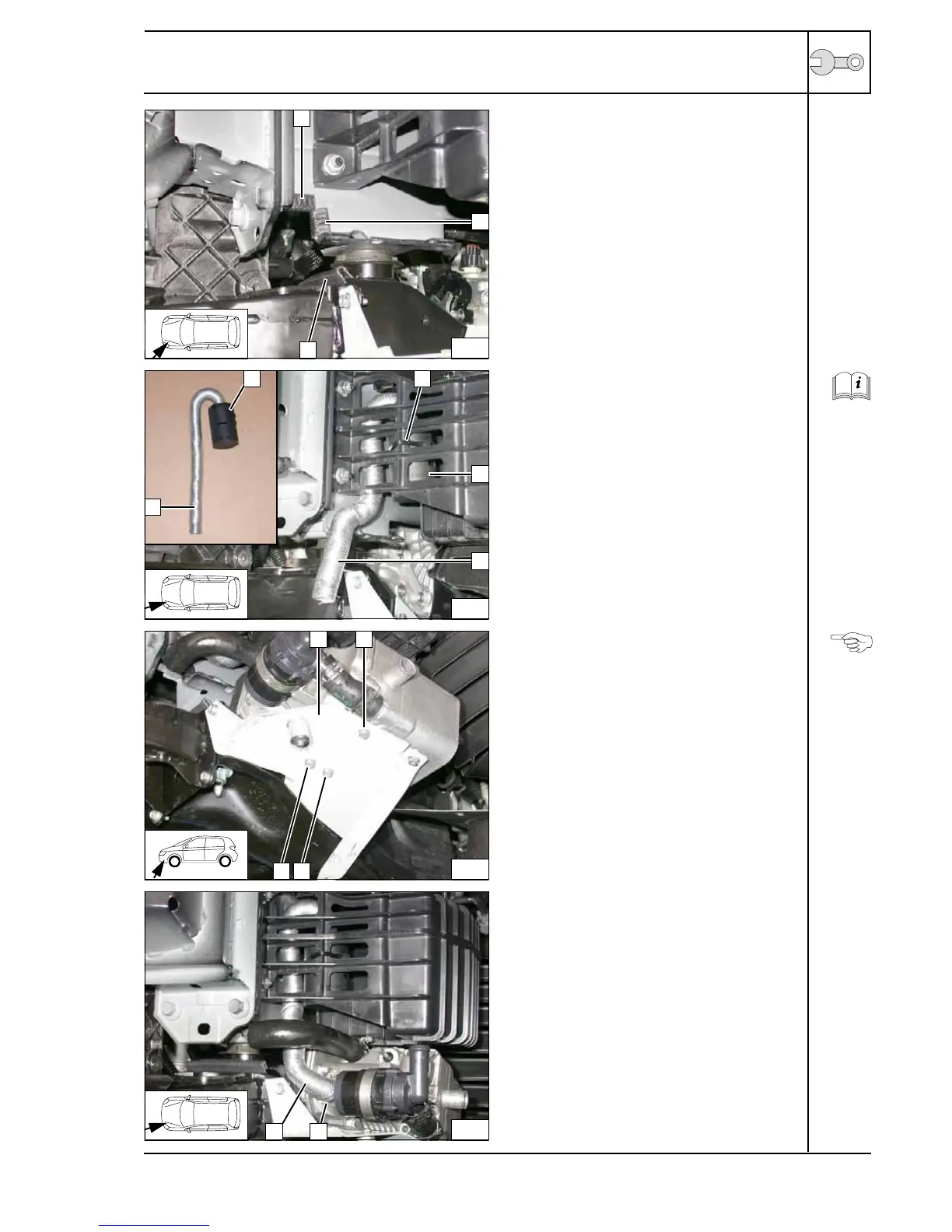

Cut edge protection to length accordingly and
mount.
1 30 mm edge protection
2 25 mm edge protection
3 100 mm edge protection
Installing
edge
protection
Secure muffler 2 with cable tie 1.
3 Shape combustion air pipe
Preassem-
bling muf-
fler
Installing heater unit
Mount wiring harness before installing heater
unit.
Insert two washers between heater unit and
bracket
1 at Position 2.
1 Bracket
2 Ejot screw, washer [2x]
3 Ejot screw [2x]
Installing
heater unit
1
24-27 mm dia. clamp
2 Combustion air pipe
Installing
combus-
tion air
pipe
21
2
1
3
22
2
1
3
3
2
23
21
33
24
2 1
