Mazda 6
1313440A_EN
14

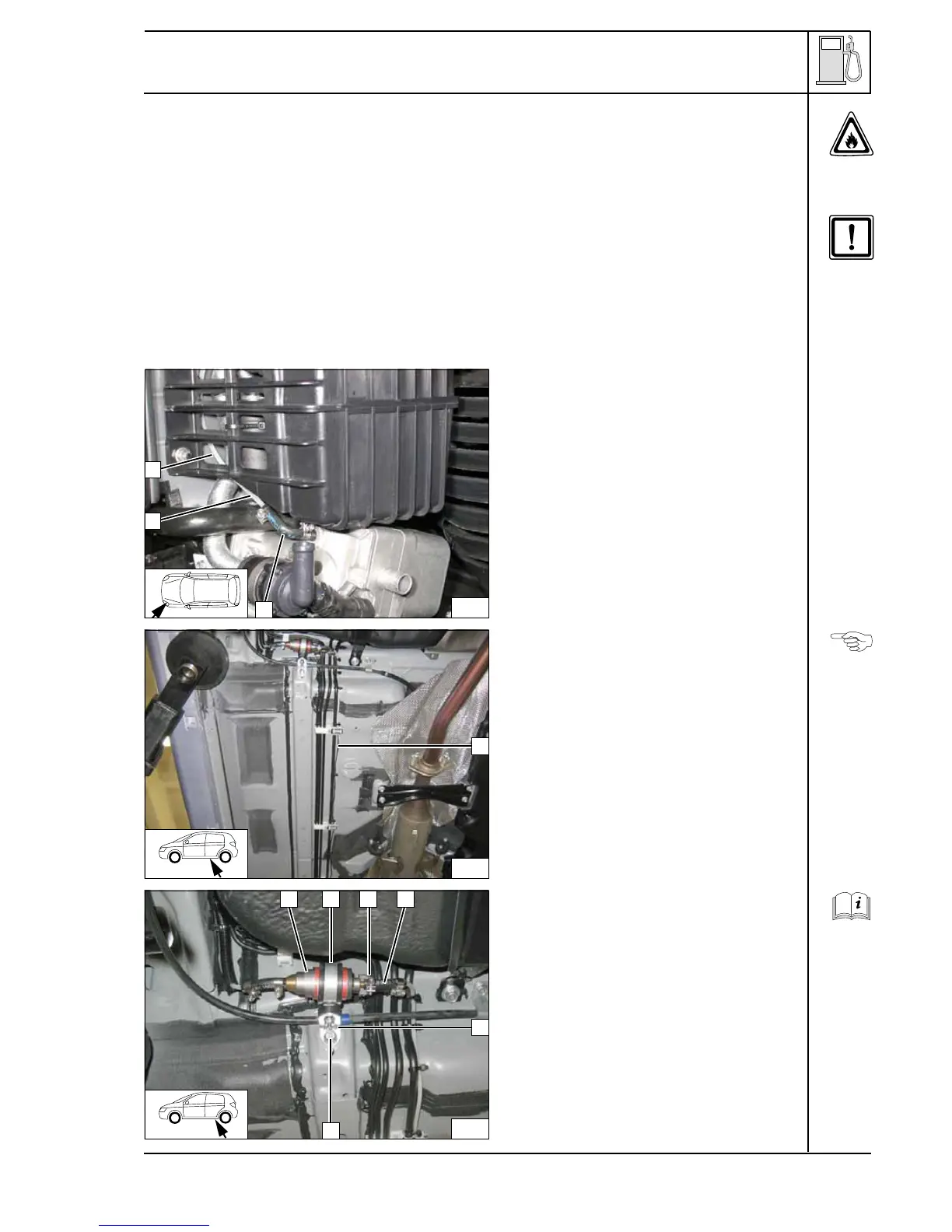

Fuel
CAUTION!
Open the vehicle's fuel tank cap, ventilate the tank and then re-close the tank lock.
Catch any fuel running off with an appropriate container.
Install fuel line and metering-pump wiring harness so that they are protected against stone impact.
Unless specified otherwise, always fasten using cable ties.
Mount the fuel line and wiring harness with rub protection on sharp edges.
WARNING!
The fuel line and wiring harness are routed to the metering pump in as shown in the wiring harness
routing diagram.
1 90° molded hose, 10 mm dia. clamp [2x]
2 Fuel line
Connect-
ing heater
unit
Route fuel line and wiring harness of
metering pump
1 along original vehicle lines
and secure with cable ties.
Wiring
routing
Drill out hole in angle bracket 5 on short leg to
8.5 mm dia. and install with original vehicle
bolt
6.
1 Metering pump
2 Rubber-coated p-clamp, silent block,
flanged nut [2x]
3 Wiring harness of metering pump,
connector mounted
4 Hose section, 10 mm dia. clamp [2x], fuel
line
Installing
metering
pump
25
2
2
1
26
1
27
5
2 3
6
41
