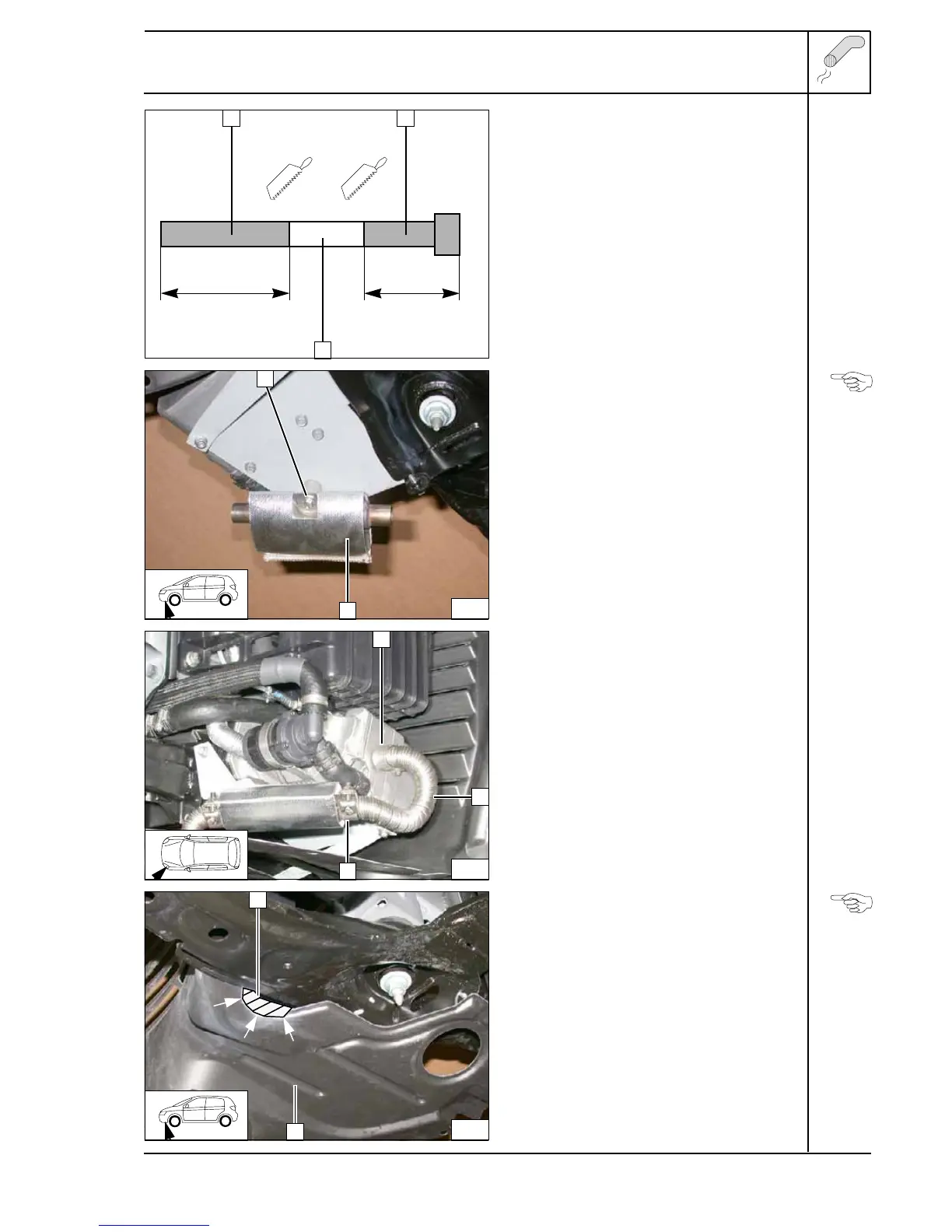

Exhaust gas
1 Exhaust pipe
a = 220
2 Exhaust end section
b = 75
Discard section
X
Preparing
exhaust
pipe
Slide exhaust-gas insulation 2 onto muffler.
1 Flanged nut on preassembled bolt
Installing
muffler
1
Hose clamp [2x]
2 Exhaust pipe
Installing
exhaust
pipe
Hold on wheel well trim 2 and cut out along
marking.
1 Discard section
Cutting out
wheel well
trim
a B
1 2
X
39
1
2
1
1
40
2
41
1
2
