Mazda 6
1313440A_EN
16
Water
WARNING!
Any coolant running off should be collected using an appropriate container. Install hoses so that they
are kink-free. Unless specified otherwise, always fasten using cable ties. Position clamps so that no
other hose can be damaged! When installing the coolant hose, the heater unit must be filled with
coolant.

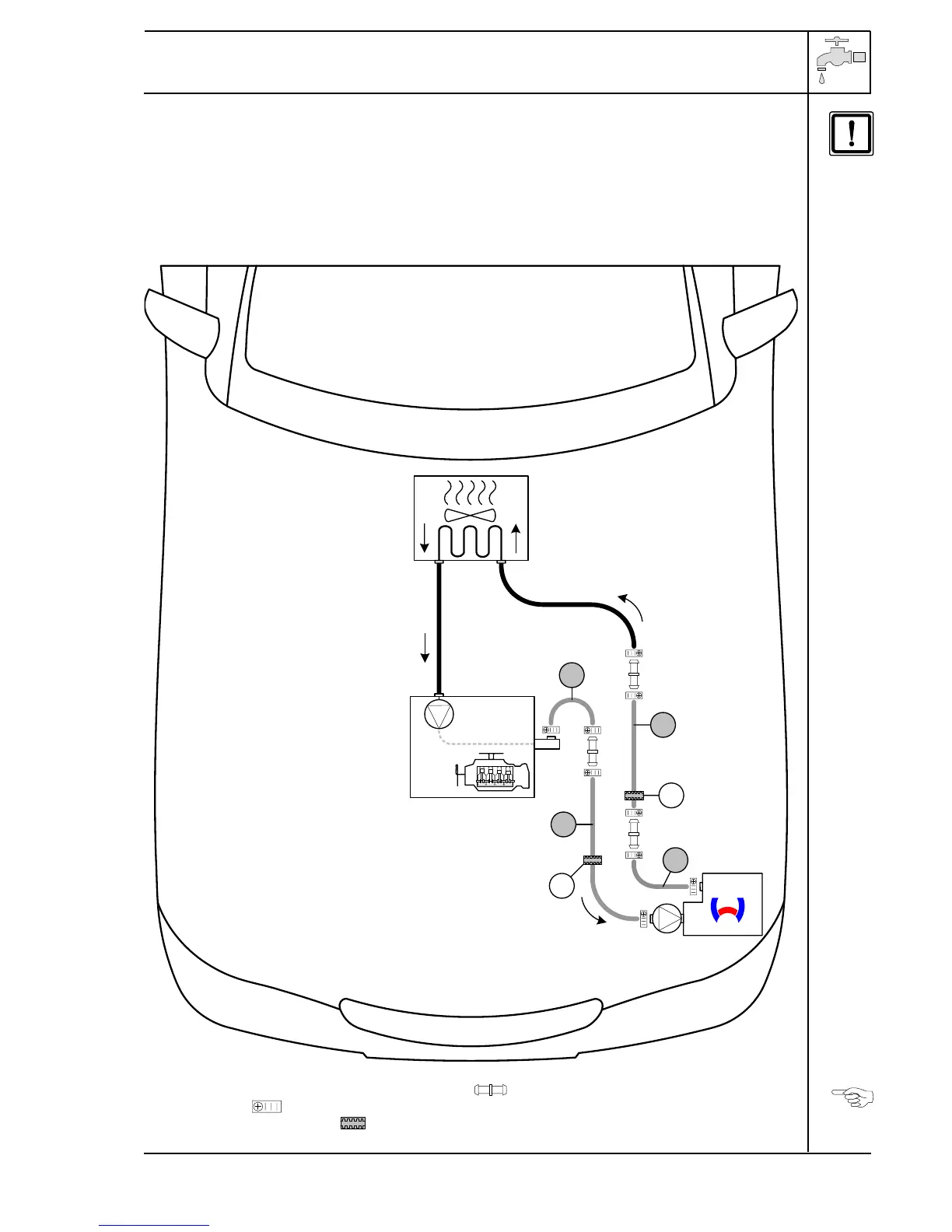

The connection should be "inline" based on the following diagram:
Coolant
routing
diagram
All connecting pipes without a specific designation = dia. 18x20.
All hose clamps = 20-27 mm dia.!
1 = Black (sw) rubber isolator .
A
B
D
Ø 20x20
C
1
1
