Mazda 6
1313440A_EN
6

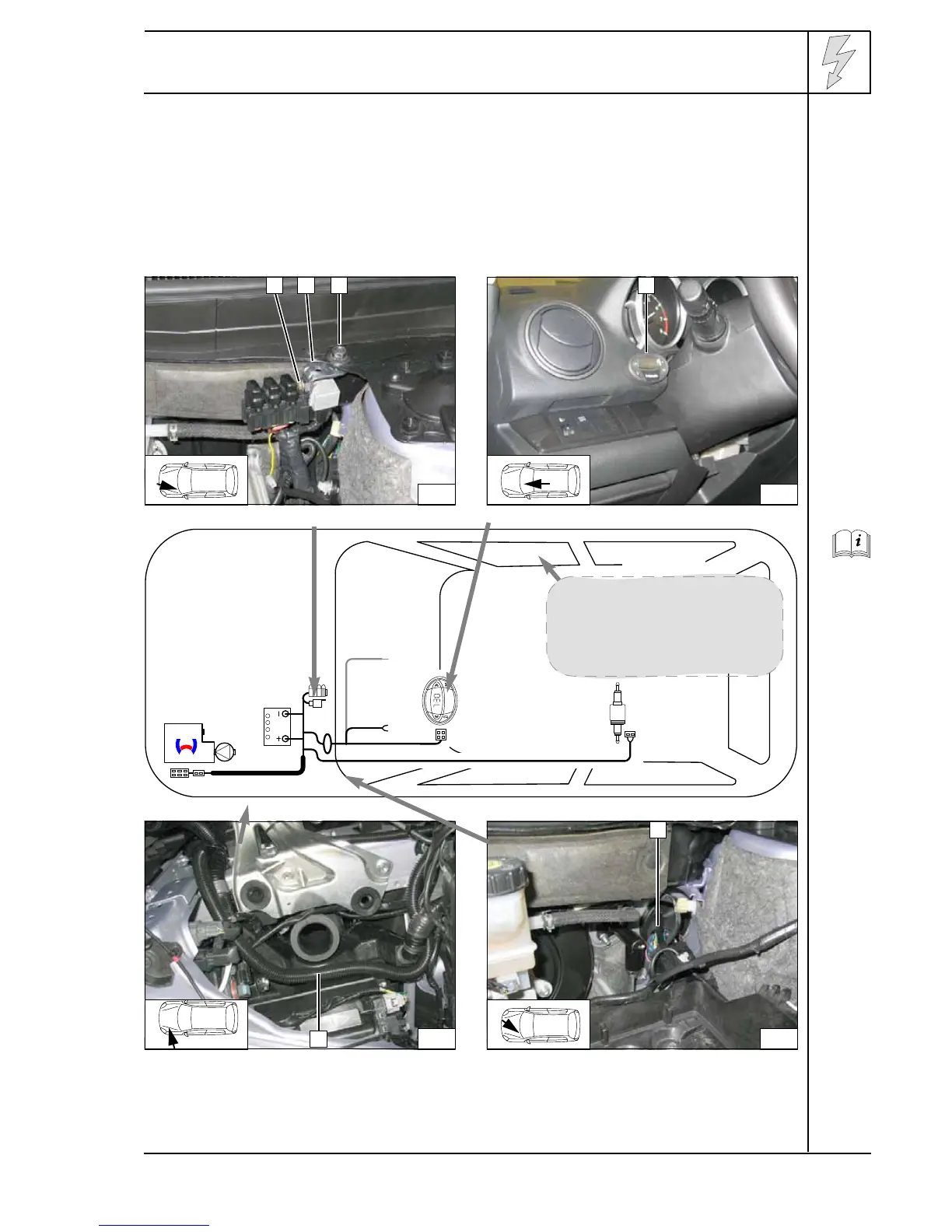

Electrical system
Fuse holder, relay K3
Replace 25 A fuse F3 with 10 A fuse.
1 M5x16 bolt, washer, fuse holder, K3 relay,
flanged nut on angle bracket
2 Angle bracket
3 Original vehicle bolt
Digital timer
1 Digital timer
Wiring
harness
installation
diagram
Installing wiring harness of heater unit in
corrugated tube
Slit 17 mm dia. corrugated tube 1, pull in wiring
harness of heater unit and route to installation
location of heater unit.
Wiring harness pass through
1 Protective rubber plug
2
321
3
1
Do not install the metering pump
cable harness until later together
with fuel pipe along the original
vehicle fuel lines on the
underbody
4
1
5
1
