58 Disassembly procedure Welch Allyn VSM 300 Series
Remove and disconnect the battery

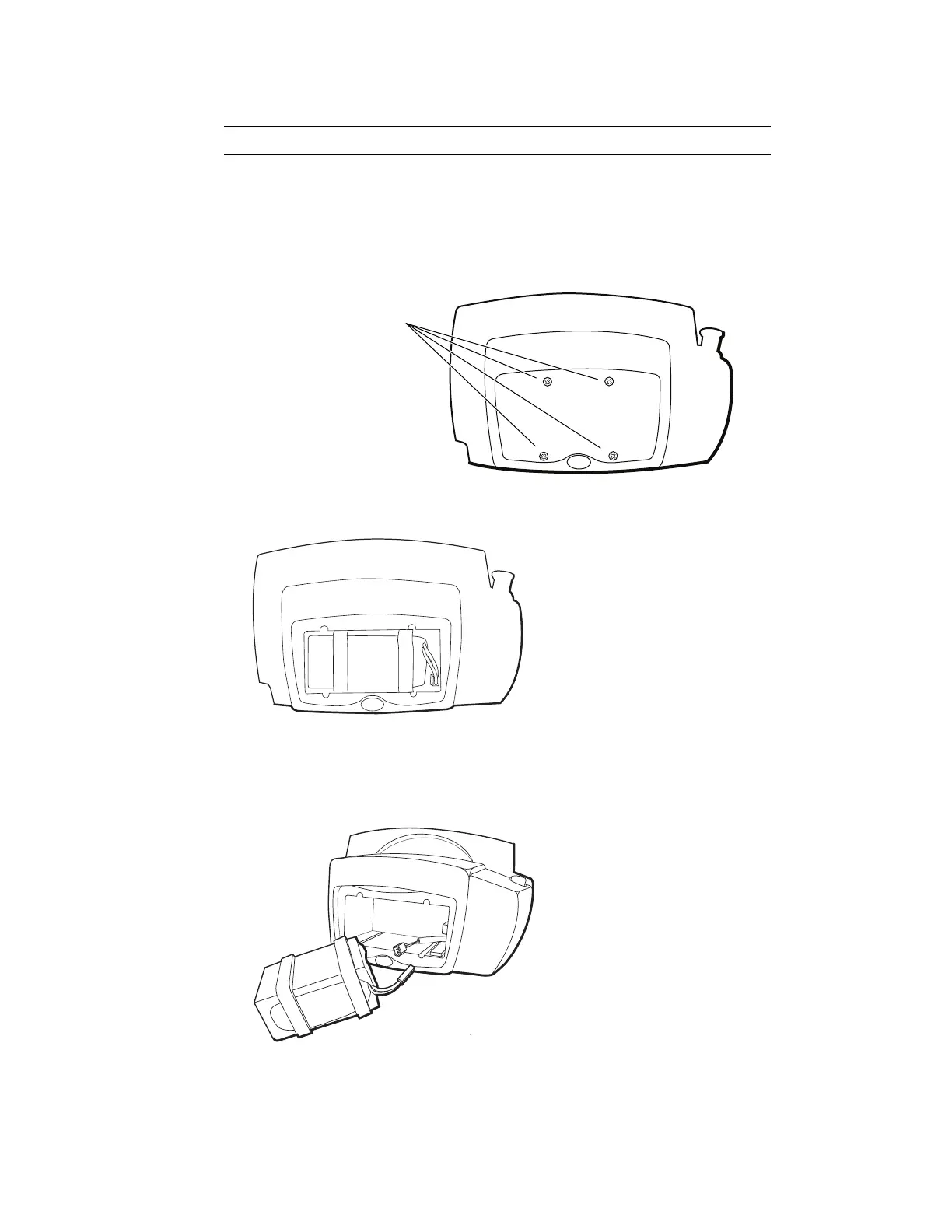

1. Remove the four screws securing the battery door.
2. Remove the battery door.
3. Slide the battery out of the battery compartment. This might require lightly shaking
the monitor.
4. Disconnect the battery from the monitor.
J1 Main board – J12 J5 External Probe
Four screws securing the
battery door
