Service manual Replacement parts 91
NIBP pump and plumbing parts

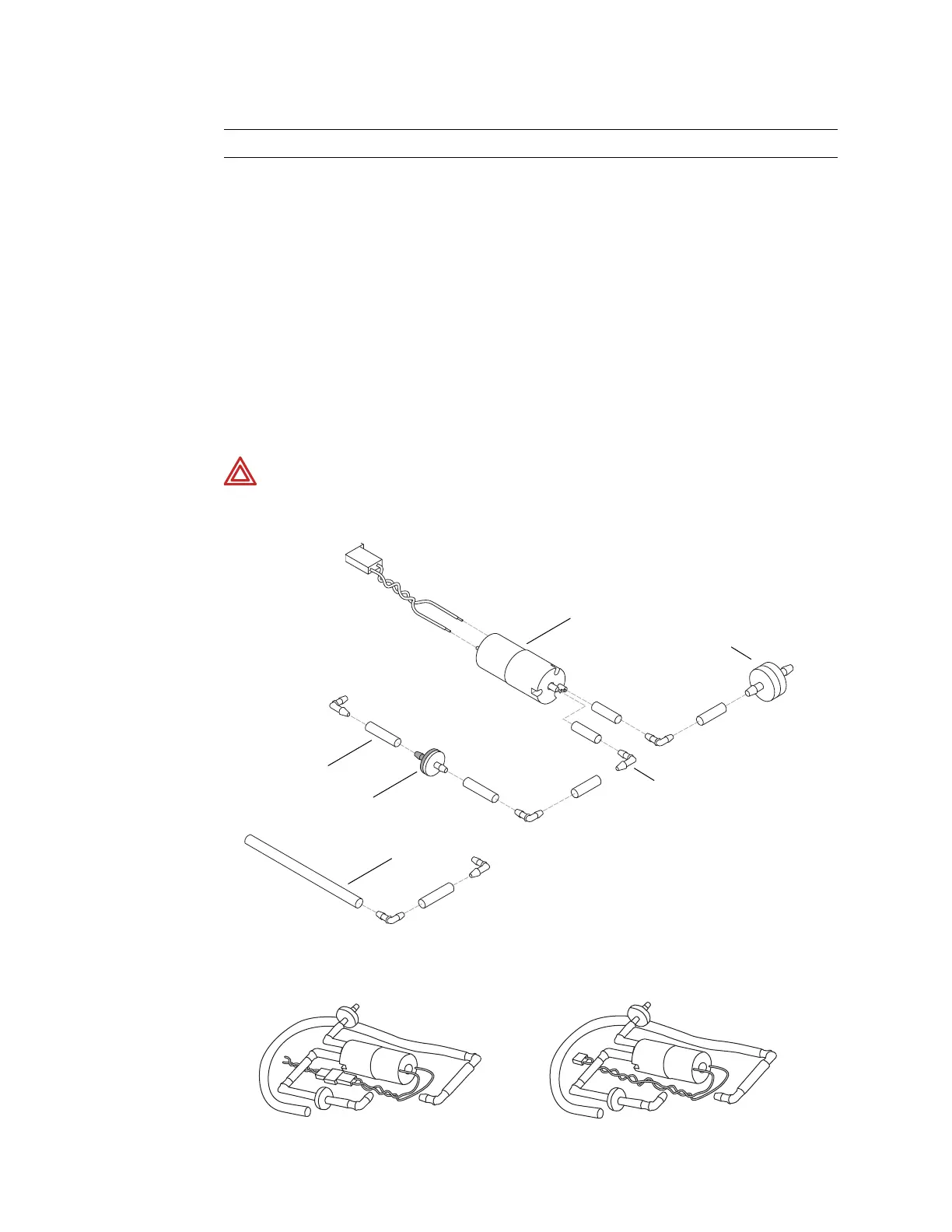

Drawing
Ref #
Order
number
Description
1
600-0179-XX Tubing, 1’, 0.125” I.D., 0.250 O.D., silicone
2
600-0396-XX Check valve, NIBP
3
680-0068-XX Pump, POEM NIBP, 6V, rolling
4
600-0520-XX Filter, NIBP
600-0043-XX Fitting, 1/8” ID tube, tee, nylon (not shown; POEM 1 only)
5
600-0178-XX Fitting, 1/8” ID tube, elbow, nylon
6
010-0233-01 NIBP pump and tubing assembly, POEM 1
7
010-0233-02 NIBP pump and tubing assembly, POEM 2
WARNING Replacement of any NIBP component (the pump, tubing, air filter,
check valve, or NIBP module) requires recharacterizing using the service utility
(810-1784-XX).
2
3
4
5
1
1
6
7
