74 Disassembly procedure Welch Allyn VSM 300 Series
d. Turn the printer assembly upside-down.
e. Remove the screw securing the printer board to the printer frame.
f. If you are replacing the printer board, remove the cables from connectors CN1
and CN3 for use on the replacement board.
Printer reassembly notes
1. When connecting the printer assembly board to the plastic printer housing, be sure
the printer board is seated flat on the housing, within the guide rails on either side of

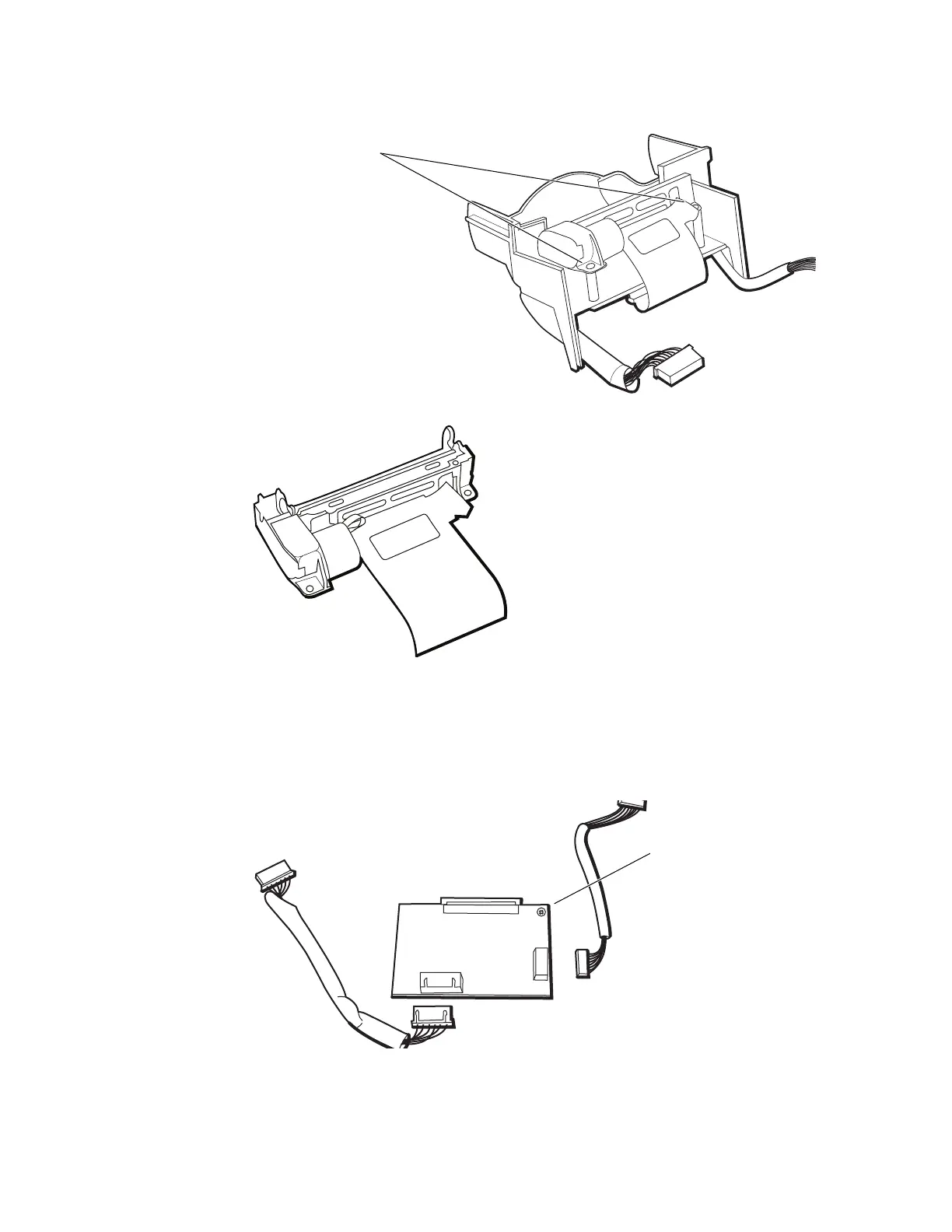

Two screws securing the
printer mechanism
Printer mechanism
One screw securing
the printer board
