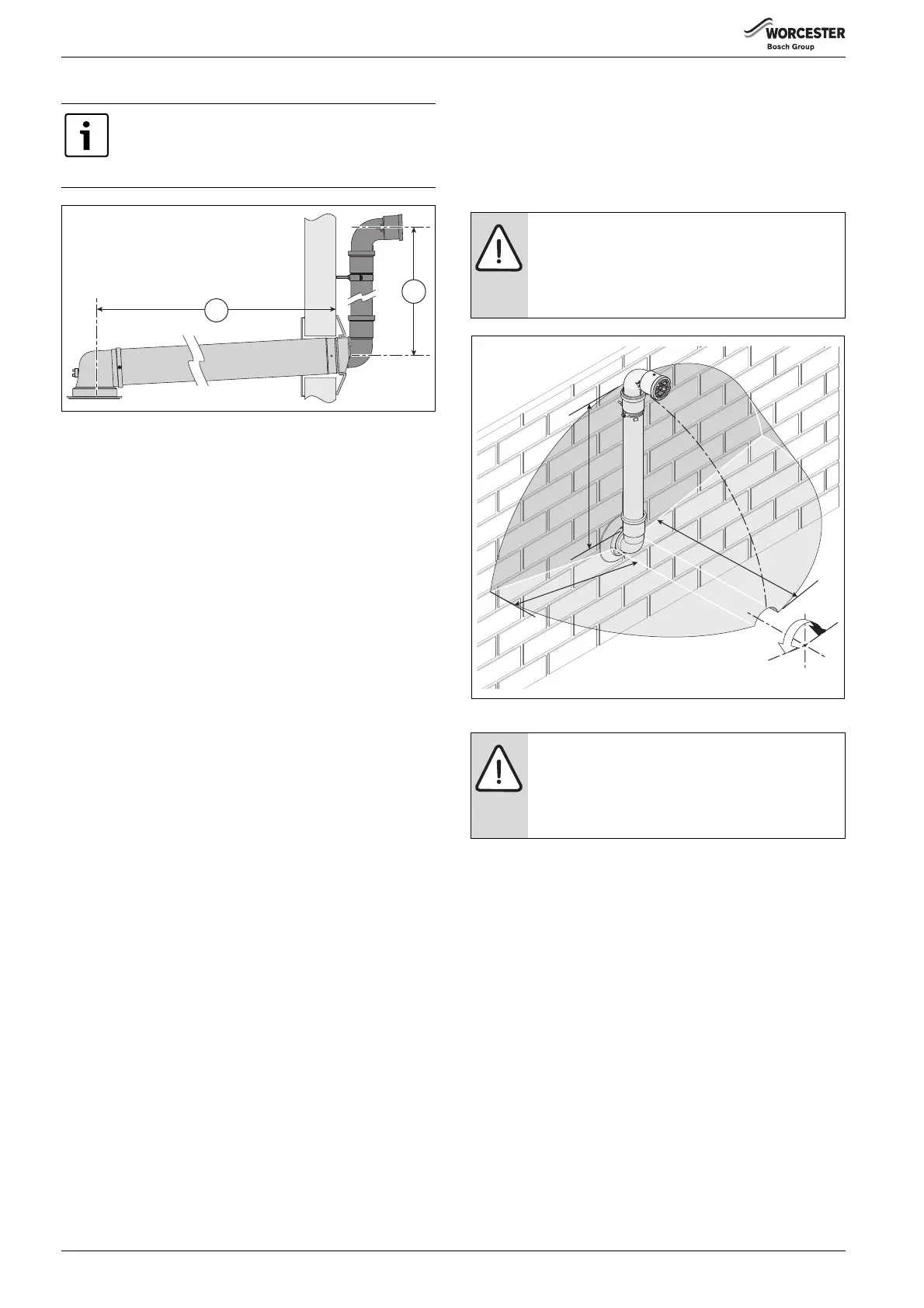

4.9.2 Determine the plume management system length
Fig. 20 Effective lengths L and M
Minimum plume management length
The minimum plume length should be calculated to ensure that the air
inlet and exhaust have a minimum distance of 500mm between them
( figure 21).
The plume management can be in any configuration, within the
parameters of the plume management installation instructions, as long
as it does not terminate inside the shaded area.
Fig. 21 Terminal exclusion zone
Maximum plume management length
The Greenstar i range appliances can use up to 4,500mm of plume
management regardless of flue length.
Note: Measurement M plume length
▶ M must be a minimum of 500mm and must not
exceed 4,500mm for a 60mm plume management
system used with the horizontal Ø 60/100mm flue.
WARNING: Minimum plume management length.
The minimum distance of 500mm must be maintained
between air inlet and exhaust.
▶ Do not terminate the plume management inside the
shaded area shown in figure 21
NOTICE: Cutting the 500mm pipe
If the 500mm plume management pipe kit is cut, an
additional elbow will be required to join the pipework.
▶ The Plume management extension kit contains the
components required for such a configuration.
67206646610-75.1Wo
5
0
0
m
m
5
0
0
mm
5
00
mm
±80°
