- 6 720 806 945 (2015/07)38
Available menus
6.4.2 Info menu and operational status codes
These are not faults, but provide information concerning the current
status of the appliance.
During normal appliance operation various Status codes can be
displayed by entering the Info menu, Status code list ( table 33,
page 39).
The first screen of the Information menu displays the current Status
code, this will change as the appliance runs through the various modes
and sequences.
▶ Press the button to enter Info menu function.
▶ Using the DHW up/down arrow buttons to scroll through the menu.
▶ Press the button to leave the info menu.

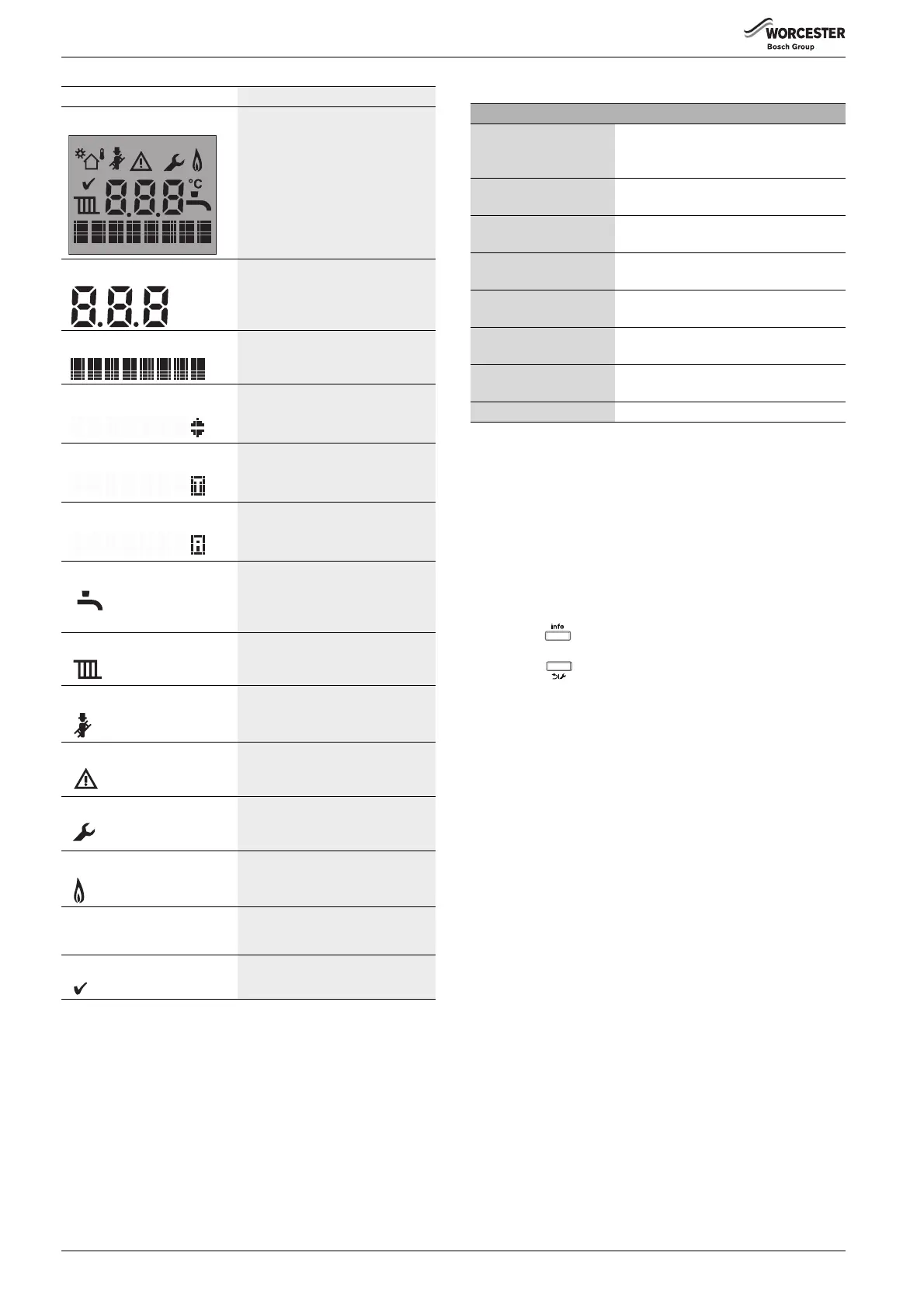

SCREEN DISPLAY
DESCRIPTION
All possible screen symbols
This screen is displayed briefly
during appliance start up and shows
all the symbols that could be
displayed.
Alpha/Numerical display
Displays a temperature or appliance
status code.
Text display
Displays status, diagnostic code and
short description information
Right hand arrows (text display)
Use DHW-arrow buttons to alter the
menu item (view mode)
Flashing T (text display)
Appliance in component test mode
Flashing A (text display)
Appliance in air purge mode
Hot water
Displays this symbol during a DHW
cylinder use (only available when
optional integral diverter valve kit
fitted).
Central Heating
Displays this symbol during a CH
use.
Chimney sweep mode Displays during service when the
appliance is set to maximum or
minimum output.
Alert
Displays with the appliance status
code and diagnostic code during a
fault condition.
Service mode
Displays when appliance is in
service menu mode. For qualified
engineers only.
Burner on
The appliance is in operation and the
flame is alight.
Centigrade Displays next to the temperature
reading.
Confirmation This symbol confirms a setting
change.
Table 30 Symbol description
6720806944-32.1Wo
°C
Text line display Description
Various info (Info Menu) Information from current status to
appliance and component output
readings, ( section 6.4.2, page 38).
Benchmark Menu Information for filling in Benchmark
section, ( section 6.5.11, page 44).
Boiler Setting Appliance setup parameters,
( section 6.5.13, page 45).
Master Settings Appliance power output parameter,
( section 6.5.14, page 46).
Test Menu Component test function menu,
( section 7.1.2, page 50).
Weather Sensor Settings Outdoor weather sensor setup
parameters, ( section 6.5.12, page 44).
Various info (History
Menu)
History of appliance errors and operational
time, ( section 7.1.1, page 49).
Reset to Factory Settings? Factory reset function.
Table 31 Available menus
