Commissioning
Greenstar i System
ErP
- 6 720 806 945 (2015/07)46
6.5.14 Master settings menu
The Master settings menu allows for the adjustment boundaries to be
set. These will set limits for the actual values that can be set in the Boiler
settings menu.
▶ Press the and buttons for approximately 5 seconds to
enter appliance menu function.
▶ Using the DHW up/down arrow buttons to scroll through to the Power
settings menu.
▶ Press the button for approximately 5 seconds to select the
menu.
▶ Press the button to select the menu item.
▶ Using the DHW up/down arrow buttons to scroll through the
adjustment options.
▶ Press the button to confirm the adjustment.
▶ Press the button to leave the info menu.
The menu shows the appliance’s minimum and maximum limits which
can be adjusted in this menu.
The appliance will revert to the adjusted settings in the Master settings
menu following a power interruption.
The Master settings menu cannot be factory reset.
6.6 Finishing commissioning
6.6.1 Replace front panel:
▶ Replace front panel making sure that the securing points are properly
located.
▶ Lift front panel onto the two locating lugs on the top of the appliance
[1].
▶ Push the bottom of the panel into position and tighten bottom two
screws.

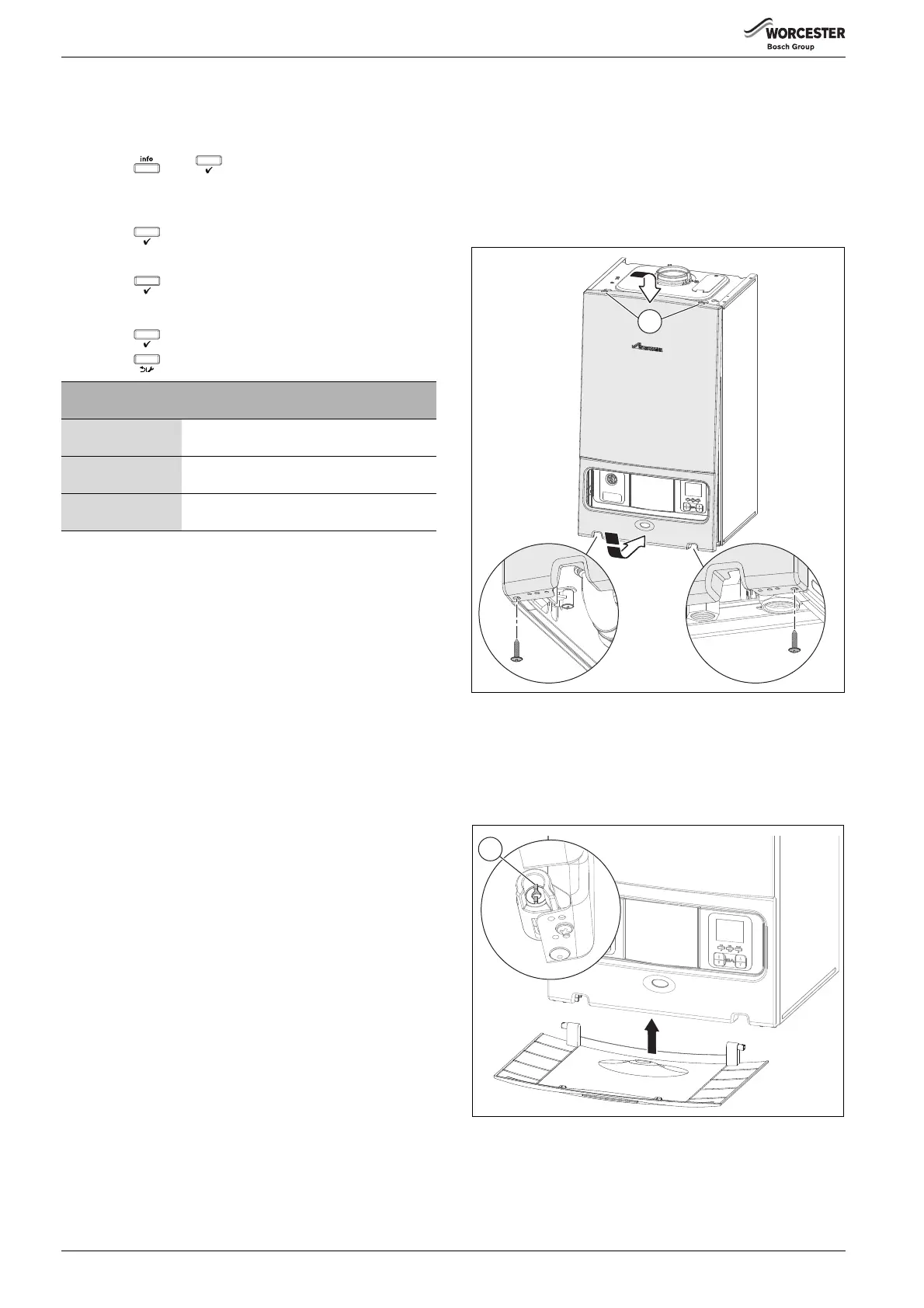

Fig. 52 Fitting case
6.6.2 Fitting facia flap
▶ Rotate the hinge [1] to be in-line with the flap and present the flap
assembly horizontally up to the facia.
▶ Push the pegs on the hinge into the two slots in the front of the facia
and close the flap.
Fig. 53 Fitting the flap
Master settings
menu list
Description
3.1b - Max. DHW
output (kW)
Adjust the maximum DHW output of the
appliance (kW)
3.2b - Max flow
temperature setpoint
Adjust the maximum CH flow temperature set
point
3.3d - Min appliance
power (kW)
Adjust the minimum output of the appliance
(kW)
Table 40 Master settings menu
1
6720806944-28.1Wo
