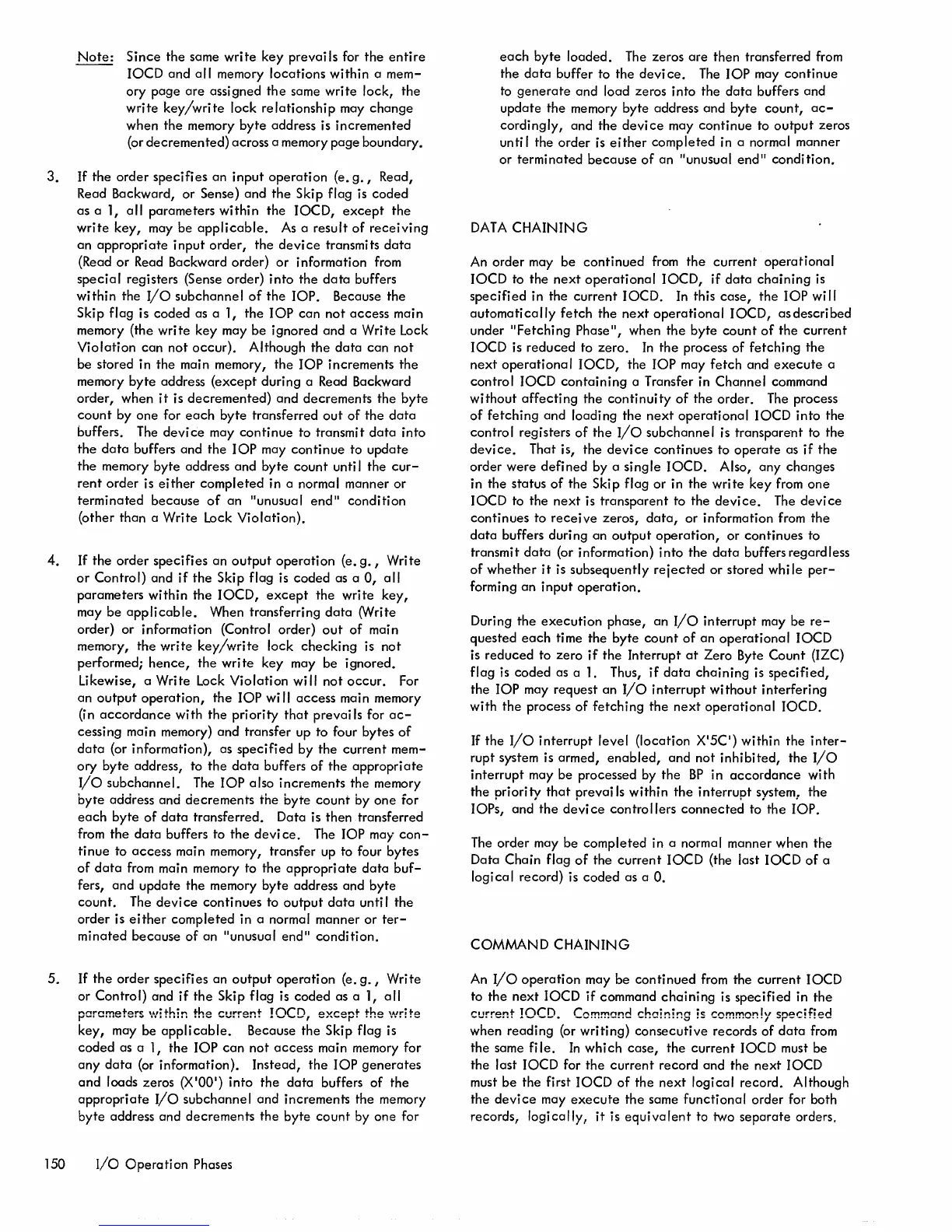

Note: Since the same write key prevai Is for the entire
lOCO and all memory locations within a mem-
ory page are assigned the same write lock, the
write key/write lock relationship may change
when the memory byte address is incremented
(or decremented) across a memory page boundary.
3. If the order specifies an input operation (e. g., Read,
Read Backward,
or Sense) and the Skip flag is coded
as a 1, all parameters within the 10CD, except the
write key, may be applicable. As a result of receiving
an appropriate input order, the device transmits data
(Read or Read Backward order) or information from
special registers (Sense order) into the data buffers
within the I/o subchannel of the lOP. Because the
Skip flag is coded as a 1, the lOP can not access main
memory (the
write key may be ignored and a Write Lock
Violation can not occur). Although the data can not
be stored in the main memory, the lOP increments the
memory byte address (except during a Read Backward
order, when it is decremented) and decrements the byte
count by one for each byte transferred out of the data
buffers. The device may continue to transmit data into
the data buffers and the lOP may continue to update
the memory byte address and byte count unti I the cur-
rent order is either completed in a normal manner or
terminated because of an "unusual end" condition
(other than a Write Lock Violation).
4. If the order specifies an output operation (e. g., Write
or Control) and if the Skip flag is coded as a 0, all
parameters within the 10CD, except the write key,
may be applicable. When transferring data (Write
order) or i nformati on (Contro I order) out of mai n
memory,
the write key/write lock checking is not
performed; hence, the write key may be ignored.
Likewise, a Write Lock Violation will not occur. For
an output operation, the lOP wi II access main memory
(in
accordance with the priority that prevai Is for ac-
cessing main memory) and transfer up to four bytes of
data (or information), as specified by the current mem-
ory byte address, to the data buffers of the appropri ate
I/O subchannel. The lOP also increments the memory
byte address and decrements the byte count by one for
each byte of data transferred. Data is then transferred
from
the data buffers to the devi ceo The lOP may con-
tinue to access main memory, transfer up to four bytes
of data from main memory to the appropriate data buf-
fers, and update the memory byte address and byte
count. The devi ce continues to output data unti I the
order is either completed in a normal manner or ter-
minated because of an lIunusual end" condition.
5. If the order specifies an output operation (e. g., Write
or Control) and if the Skip flag is coded as a 1, all
parameters \A,'itn:r. the current !OCD, except the \¥rite
key, may be applicable. Because the Skip flag is
coded as a 1, the lOP can not access main memory for
any data {or information}. Instead, the lOP generates
and loads zeros (XIOOI) into the data buffers of the
appropriate I/O subchannel and increments the memory
byte address and decrements the byte count by one for
150 I/O Operation Phases
each byte loaded. The zeros are then transferred from
the data buffer to the devi ceo The lOP may continue
to generate and load zeros into the data buffers and
update the memory byte address and byte count, ac-
cordingly, and the device may continue to output zeros
unti
I the order is either completed in a normal manner
or
terminated because of an "unusual end
ll
condition.
DATA CHAINING
An order may be continued from the current operational
10CD to the next operational 10CD, if data chaining is
specified in the current 10CD. In this case, the lOP wi II
automatically fetch the next operational 10CD, asdescribed
under "Fetching Phase", when the byte count of the current
10CD is reduced to zero. In the process of fetching the
next operational 10CD, the lOP may fetch and execute a
control lOCO containing a Transfer in Channel command
without affecting the continuity of the order. The process
of fetching and loading the next operational 10CD into the
control registers of the I/o subchannel is transparent to the
device. That is, the device continues to operate as if the
order were defined by a single 10CD. Also, any changes
in the status of the Skip flag or in the write key from one
10CD to the next is transparent to the device. The device
continues to receive zeros, data, or information from the
data buffers during an output operation, or continues to
transmit
data (or information) into the data buffers regardless
of whether it is subsequently rejected or stored whi Ie per-
forming an input operation.
During the execution phase, an I/O interrupt may be re-
quested each time the byte count of an operational 10CD
is reduced to zero if the Interrupt at Zero Byte Count (IZC)
flag is coded as a 1. Thus, if data chaining is specified,
the lOP may request an I/O interrupt without interfering
with the process of fetching the next operational IOCD.
If the I/o interrupt level (location X
I
5C') within the inter-
rupt system is armed, enabled, and not inhibited, the I/o
interrupt may be processed by the BP in accordance with
the priority that prevai Is within the interrupt system, the
lOPs, and the device controllers connected to the lOP.
The order may be completed in a normal manner when the
Data Chain flag of the current IOCD (the last 10CD of a
logical record) is coded as a O.
COMMAND CHAINING
An I/o operation may be continued from the current lOCO
to the next 10CD if command chaining is specified in the
current !OCD. Command chaining is commonly specified
when reading (or writing) consecutive records of data from
the same file. In which case, the current 10CD must be
the last lOCO for the current record and the next 10CD
must be the first 10CD of the next logical record. Although
the device may execute the same functional order for both
records,
logically, it is equivalent to two separate orders.
