Xerox 8254E User Manual

Product Overview
Xerox 8254E / 8264E Color Wide Format Printer
User Guide
2-7

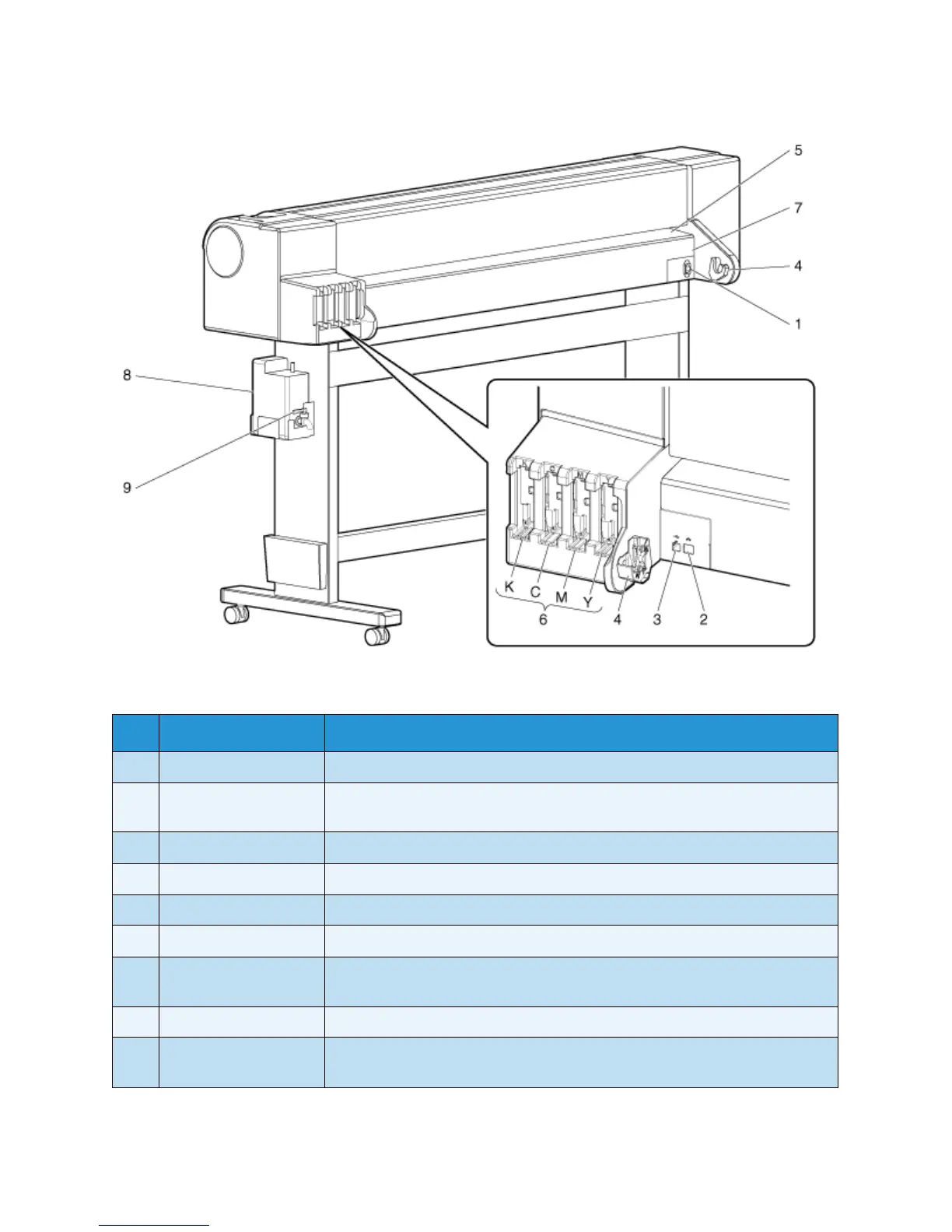

8254E Rear Section
No. Name Function
1 AC inlet Used for connecting the power cable.
2 Network interface
connector
Used to connect a network interface cable.
3 USB connector Not used for this printer.
4 Scroller receiver Used to set the scroller when roll media is used.
5 Media feed slot Used for feeding the media from back to front.
6 Ink cartridge slots Used to hold the ink cartridges.
7 Media guide Used for feeding media smoothly when the media is set or printed.
The Pre-Heater used to warm the media is installed under the media guide.
8 Waste fluid tank Used for collecting the waste ink discharged from the printer.
9 Waste fluid valve Used when discharging the waste fluid from the waste fluid tank.
It is normally closed.
