September 2001 88XX Series Folder Operator Manual 43
Clearing Mobile Roller Jams

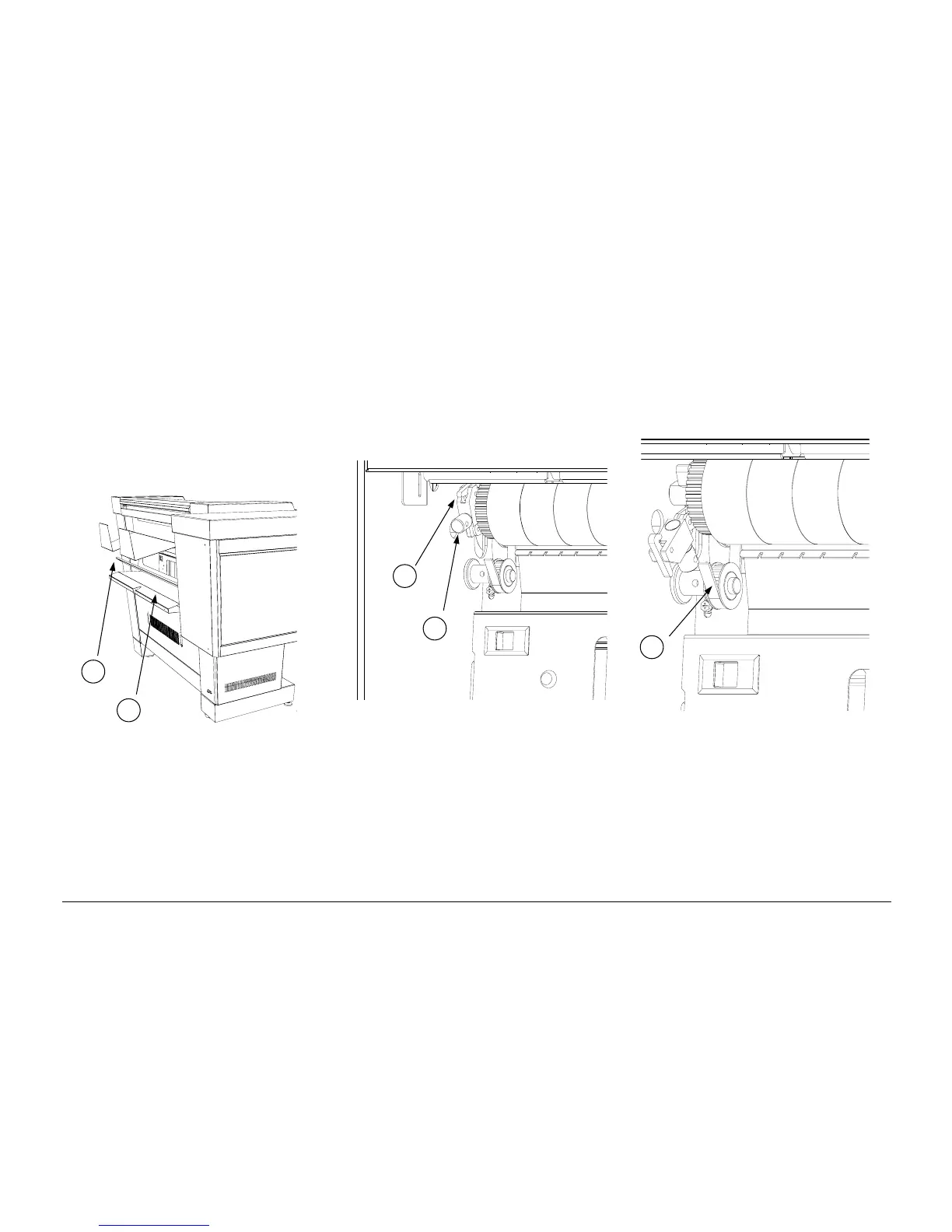

When a media jam occurs near the Mobile Pinch
Roller, the Mobile Pinch Roller can be removed
as follows:
112617
1. Switch off the Folder.
2. Open the door (B) and remove the conveyor
guide .(A)
112501
3. Unscrew the Adjusting Pin .(D)
4. Pull the lever block anchor (C) down on
each side while supporting the mobile roller.
5. Remove the mobile pinch roller and the jam.
6. Note: after the roller is reinstalled, tighten
the Adjusting Pin until it stops, to put the
spring under pressure. Then check and
insure the belt (E) is correctly positioned on
the pulley.
7. Remount all and press “Reset”
B
A
E
C
D
To Next Page
