Replacing the Drum Cartridge

Xerox CopyCentre/WorkCentre/WorkCentre Pro 123/128 User Guide 305

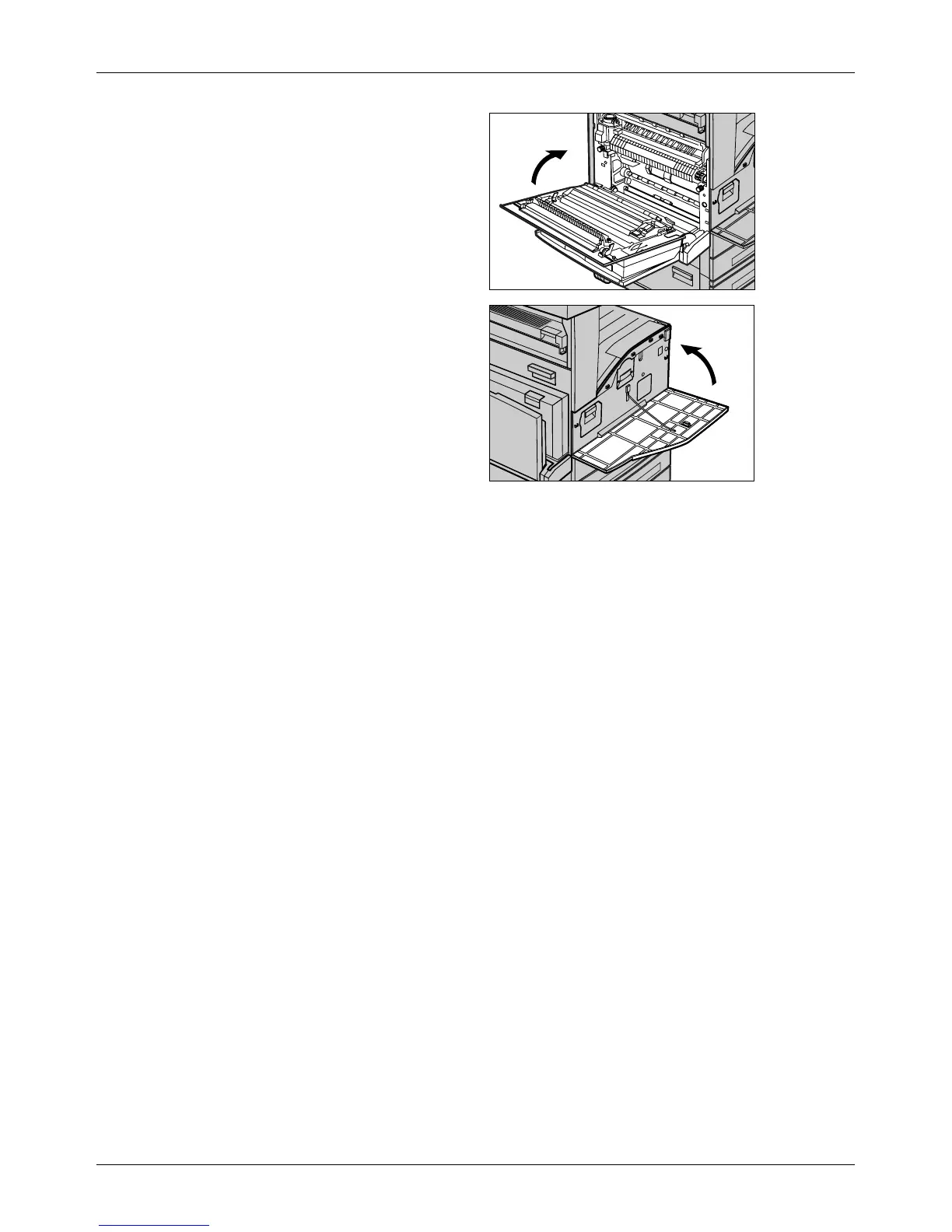

6. Close the Cover A until it

latches, and then close the

bypass tray.

7. Close the front cover.
