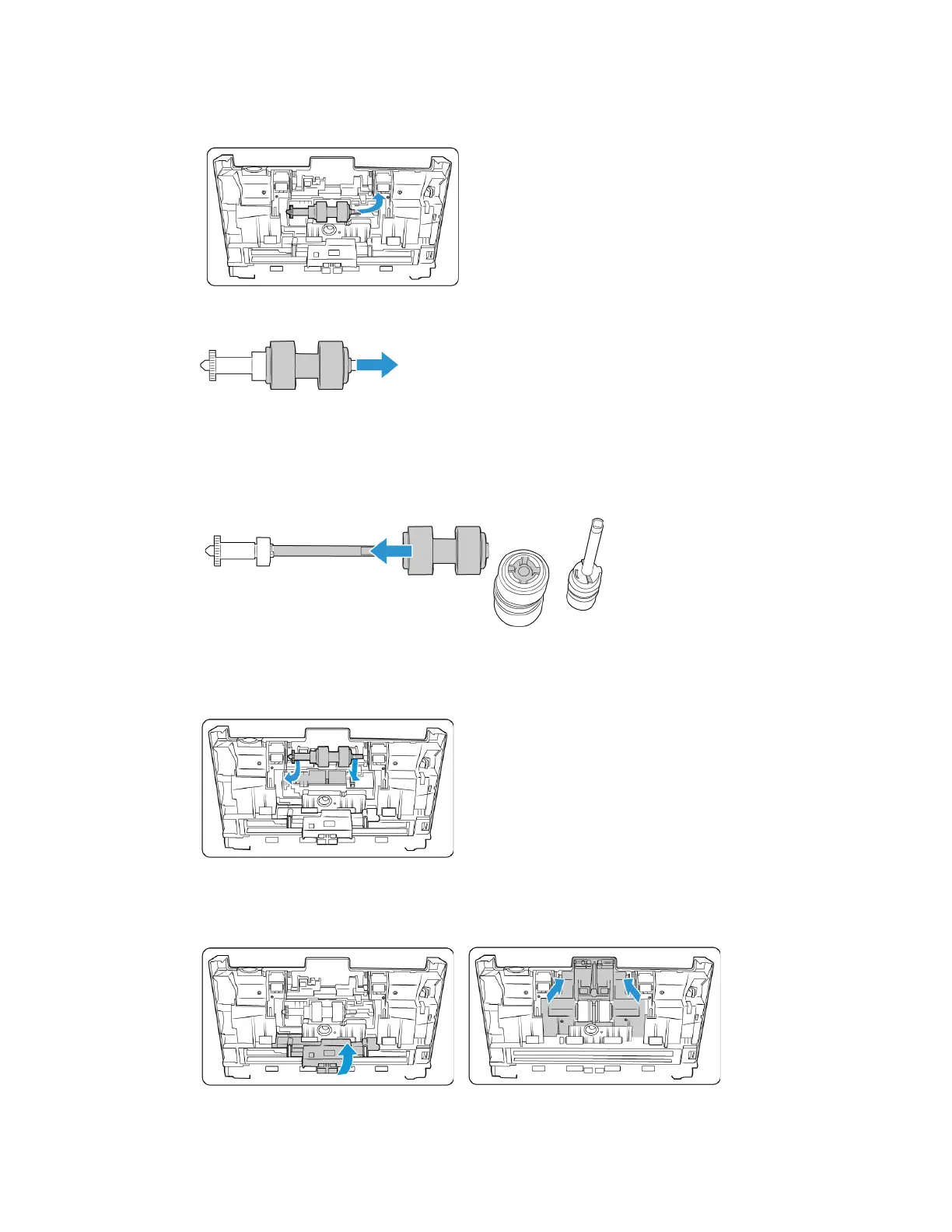

4. Carefully angle the roller up and out of the scanner.
5. Remove the replaceable roller from the bar.
6. Discard the roller, it cannot be repaired or reused.
7. Take the new roller out of its packaging. Clean any dust off the roller before installing it.
8. Slide the new roller onto the bar. Make sure the struts on the bar line up to the slots in the end
of the roller.
9. Insert the round end of the roller into the slot in the scanner. Carefully lower the roller into the
scanner. Make sure the groove on the right side of the roller is aligned so that it slides in place
into the U-shape of the bracket.
10. Lift the roller cover and carefully push it closed to lock it in place. Make sure everything is
aligned properly and the cover is fully closed. If the cover is not fully closed it will break during
scanning and damage the scanner.
11. Close the scanner when you’re finished.
