Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 4.1
Parts Lists

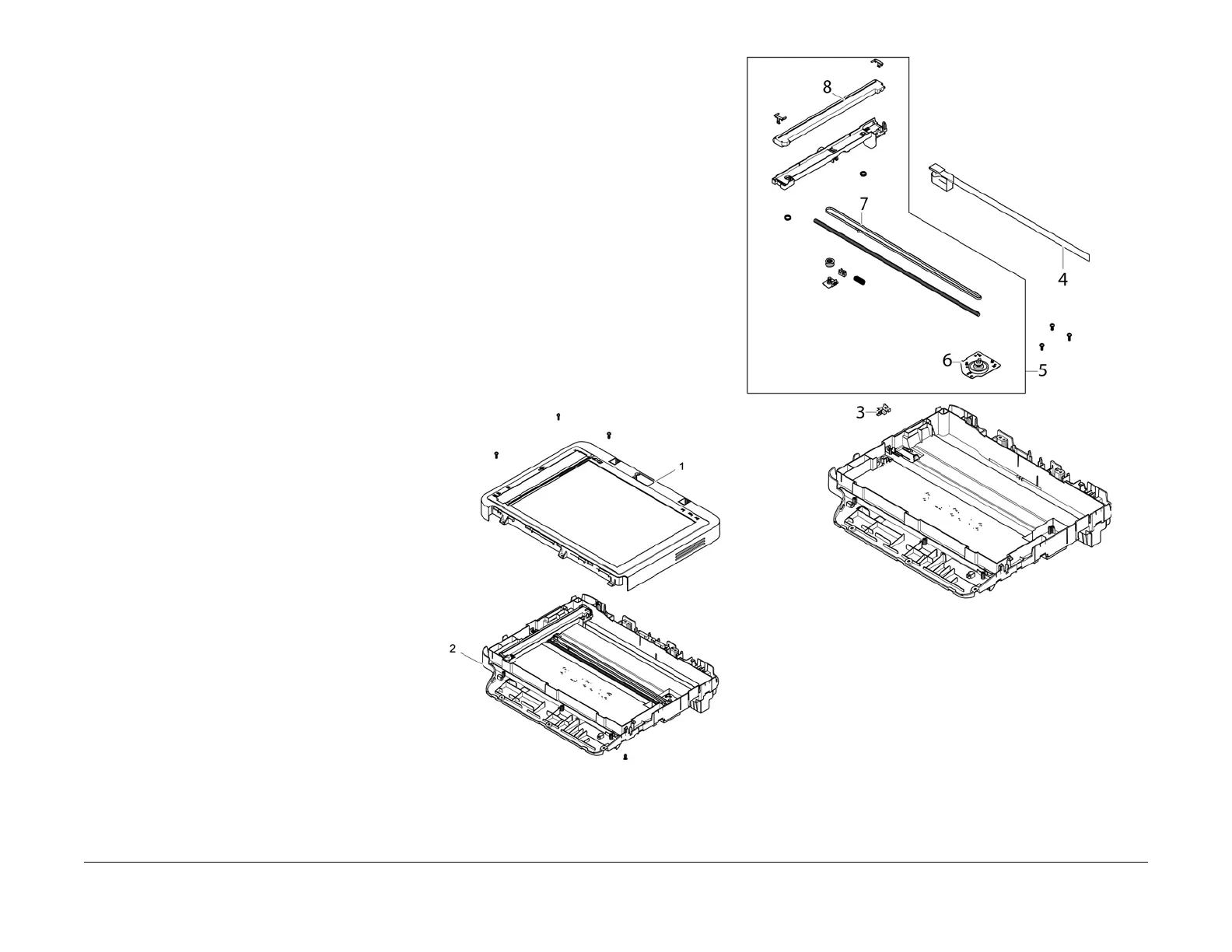

PL 4.1 Scanner
Item Part Description
1 – Upper Scanner Frame
2 – Lower Scanner Frame
3 – Sensor
4 – Flat Cable
5 – Platen Scanner
6 – Scanner Drive Motor
7 – Drive Belt
8 – Contact Image Sensor (CIS)
