Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
IQ1, IQ2
Image Quality
IQ1 Vertical Black Line and Band RAP
Thin black vertical lines or black vertical bands occur in the printed image (Figure 1).
Procedure
Switch Off the power.
Check the Transfer Roller, PL 5.1 for wear or damage. The Transfer Roller is OK.
YN
Replace the Transfer Roll; (REP 1.16), PL 5.1.
Switch On the power and make a test print.
If problem persists, replace the Print Cartridge, refer to the WorkCentre® 3025 User Guide for
detailed instructions on how to replace the Print Cartridge.

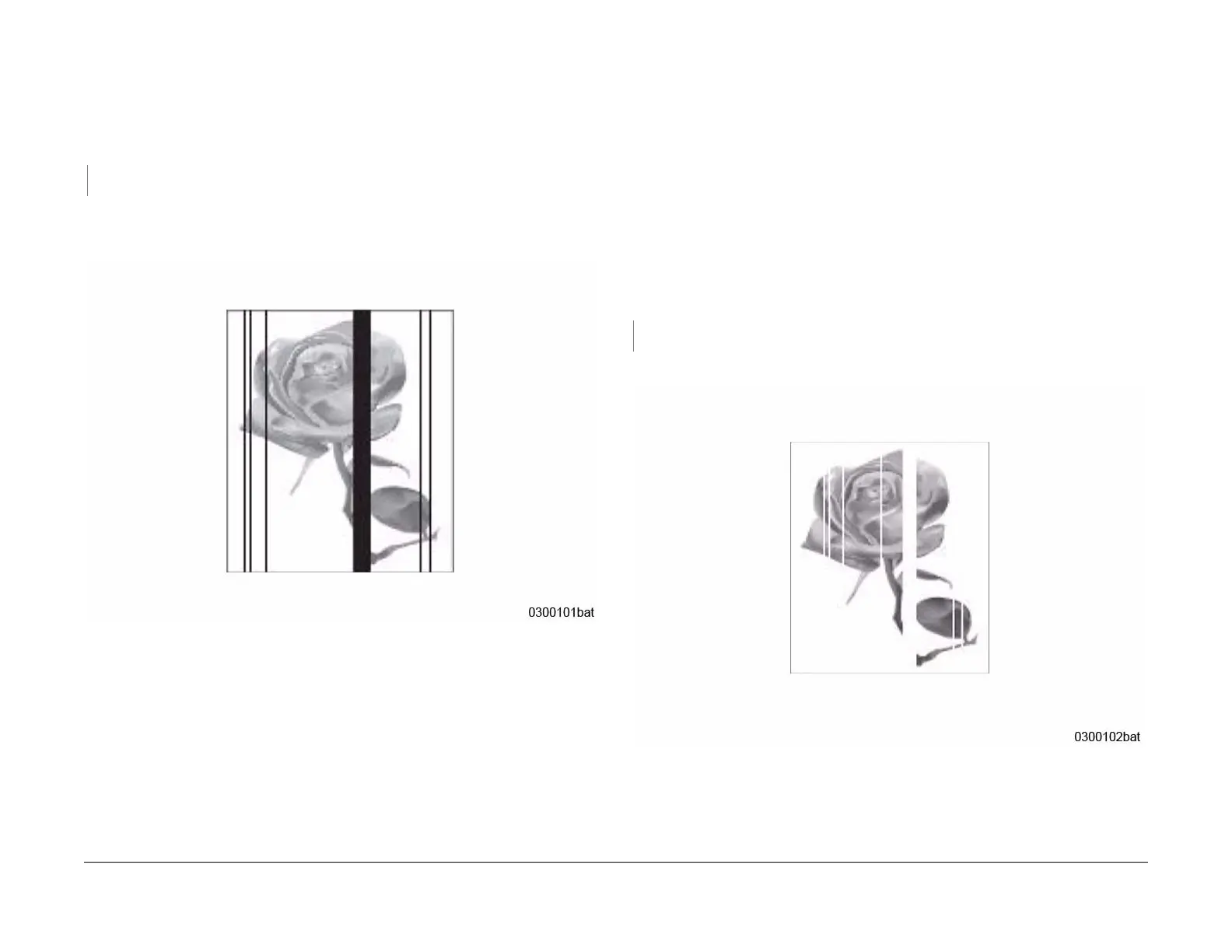

Figure 1 Black lines and bands
IQ2 Vertical White Line and Band RAP
Thin white vertical lines or white vertical bands occur in the printed image (Figure 1).
Initial Actions
• Check the life of the Print Cartridge, refer to GP 2 Machine Status and Reports.
Replace the Print Cartridge if it is at end of life, refer to the Workcentre® 3025 User
Guide, Section 6 Maintenance, General Care, for detailed instructions on how to replace
the Print Cartridge.
• Clean the surface of the LSU window with a clean cotton swab and recommended
cleaner.
Procedure
Switch off the printer.
Check the space between the LSU and the Drum Cartridge, remove any debris or blockage.
Switch On the power and make a test print. The defect is gone.
YN
Replace the Fuser Module; (REP 1.19), PL 5.2.
Switch on the power. Perform Final Actions.
Figure 1 White lines and bands
