Xerox WorkCentre 3025BI Service Manual

June 2014
5-11
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 5.1
Parts Lists

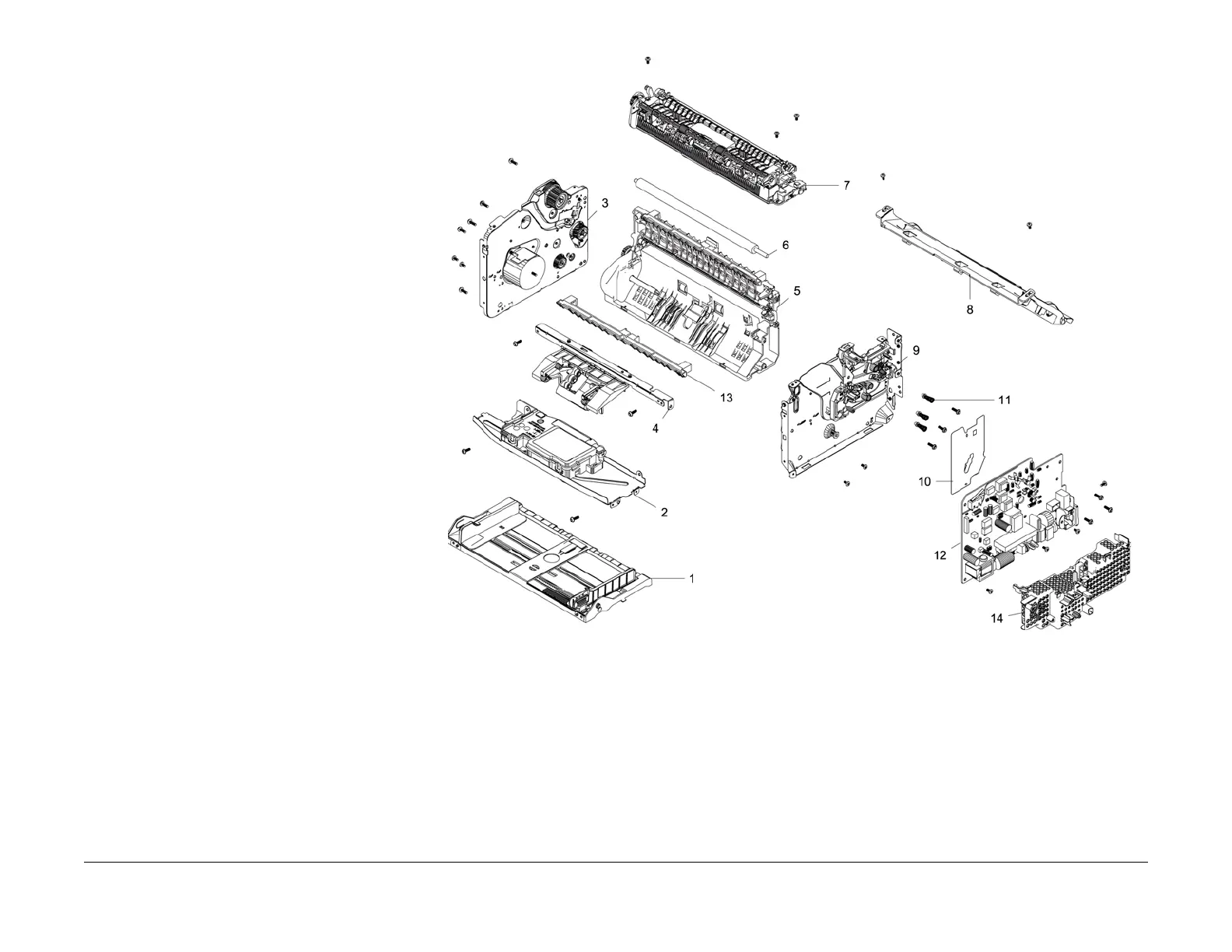

PL 5.1 Frame
Item Part Description
1 – Paper Tray
2 – Middle Frame
3 – Left Frame
4 – Feed Frame
5 – Paper Path Frame
6 022N02794 Transfer Roller
7 – Fuser (PL 5.2)
8 – LSU Cover
9 – Right Frame
10 – HVPS Insulator
11 – HVPS Contacts
12 105N02303 LVPS/HVPS 220V
– 105N02302 LVPS/HVPS 110V
13 – Input Guide
14 – HVPS/SMPS Cover
