Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.18
Repairs
REP 1.18 Feed Clutch
Parts List on PL 5.3
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Middle Cover (REP 1.4).
3. Unplug the Feed Clutch Connector from the Main PWB (Figure 1).
Route the wires through the frame to the left side of the printer.

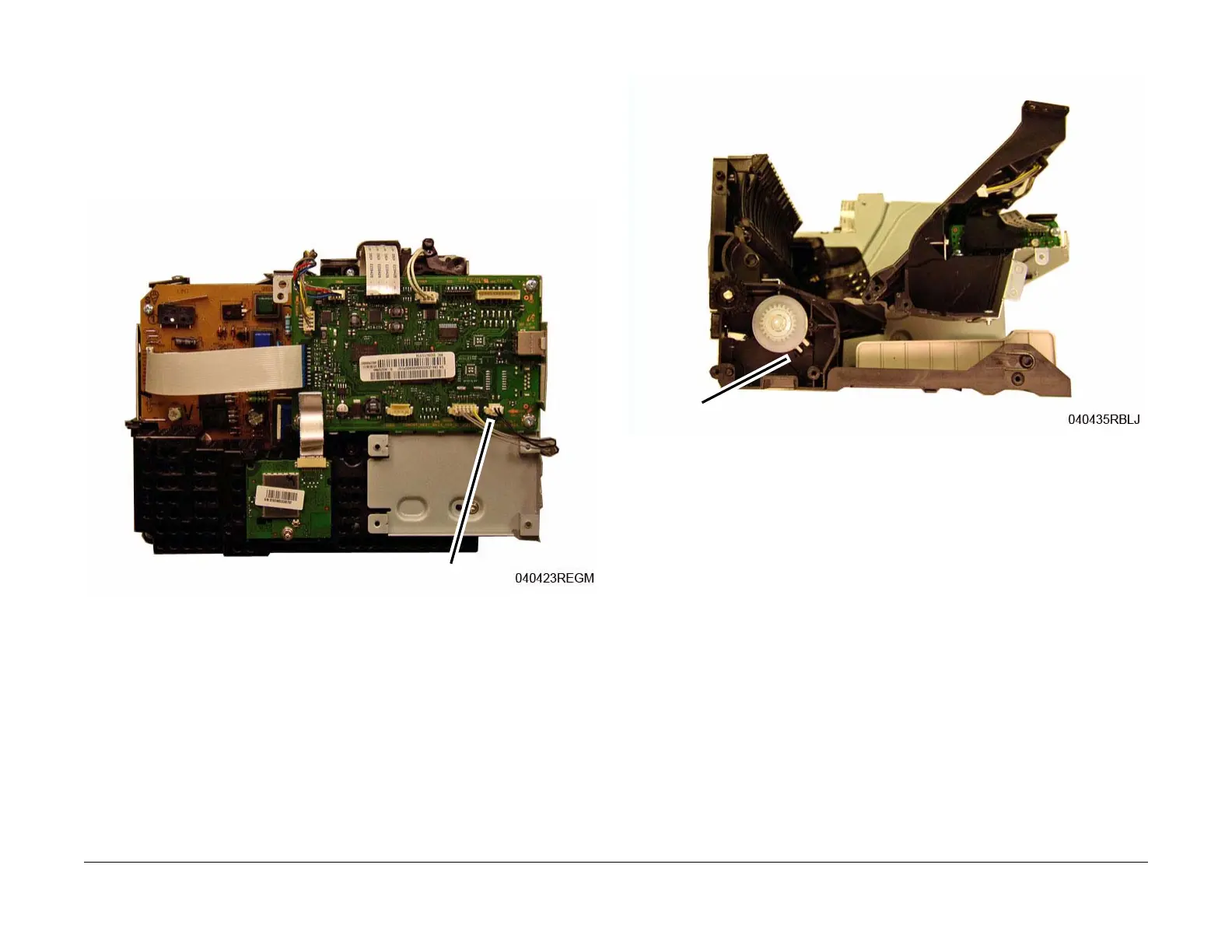

Figure 1 Feed Clutch Connector
4. Remove the Left Frame (REP 1.8).
5. Release the latch and remove the Feed Clutch (Figure 2).
Figure 2 Feed Clutch Removal (Left View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
Connector
Latch
