Xerox WorkCentre 3025BI Service Manual

June 2014
4-26
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.13, REP 1.14
Repairs
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
When replacing the Retard Pad make sure the Spring is positioned on the locating post on the
frame (Figure 5).
When replacing the Feed Rolls Assembly make sure the Locating Pins are positioned in the
frame holes before installing the screws (2) (Figure 6).

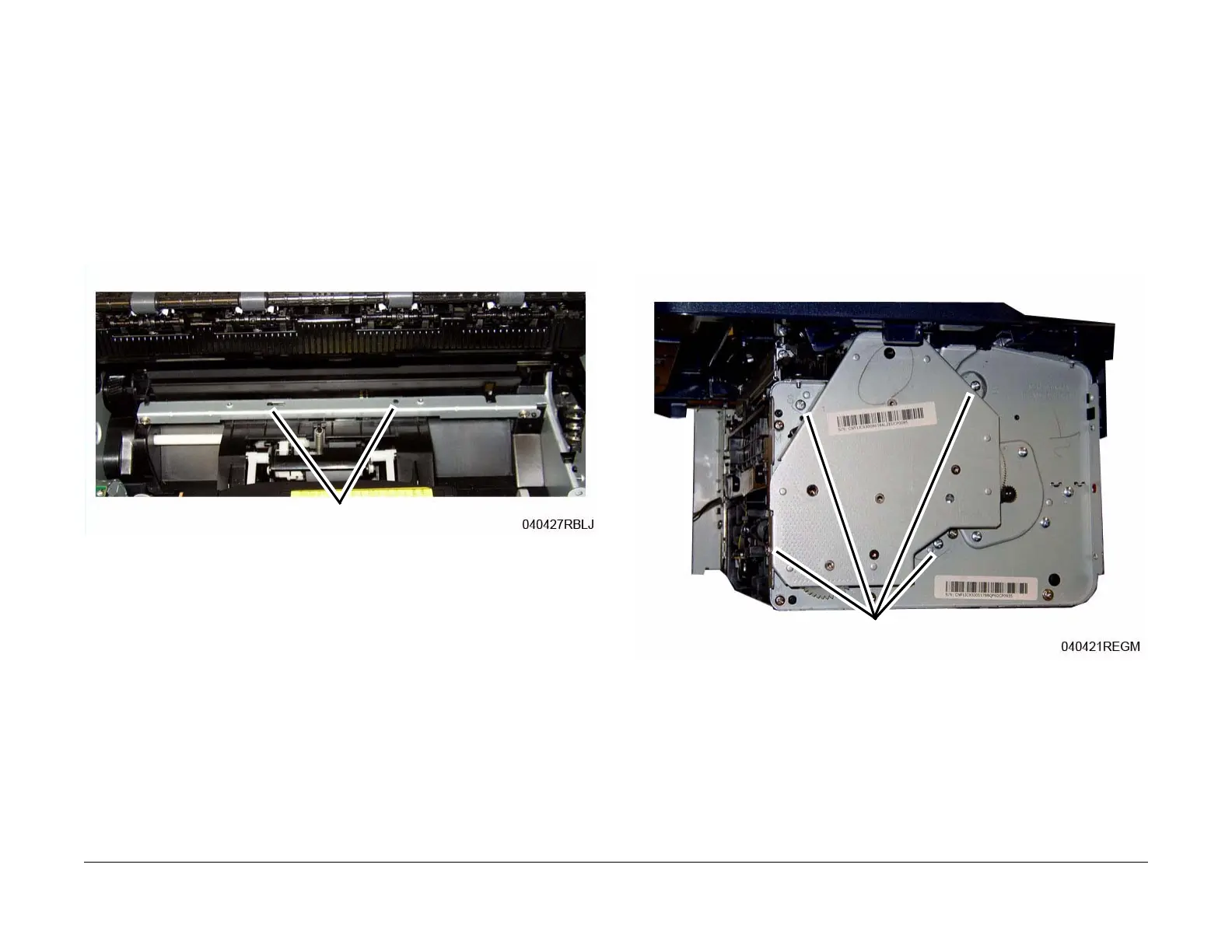

Figure 6 Feed Rolls Assembly Locating Pins (Top View)
REP 1.14 Paper Drive Roll and Drive Gear
Parts List on PL 5.3
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. The Front Cover (REP 1.2).
b. The Left and Right Side Covers Cover (REP 1.1).
c. The Rear Cover (REP 1.3).
NOTE: When removing the Main Drive Unit make sure the gears do not slide off their shafts.
3. Remove the Main Drive Unit (4 screws) (Figure 1).
Figure 1 Main Drive Unit (Left View)
Locating Pins
Screws
