Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
IQ3, IQ4
Image Quality
IQ3 Horizontal Black Bands RAP
Periodic dark of blurry horizontal stripes in the printed image (Figure 1).
Procedure
• Switch Off the power.
• Check the contacts on the Print Cartridge and the LVPS / HVPLS PWB for contamination
or damage.
• Switch On the power and make a test print.
The defect is still present.
YN
Go to Call Closeout.
Replace the Print Cartridge, refer to WorkCentre® 3025 User Guide for detailed instructions on
how to replace the Print Cartridge.

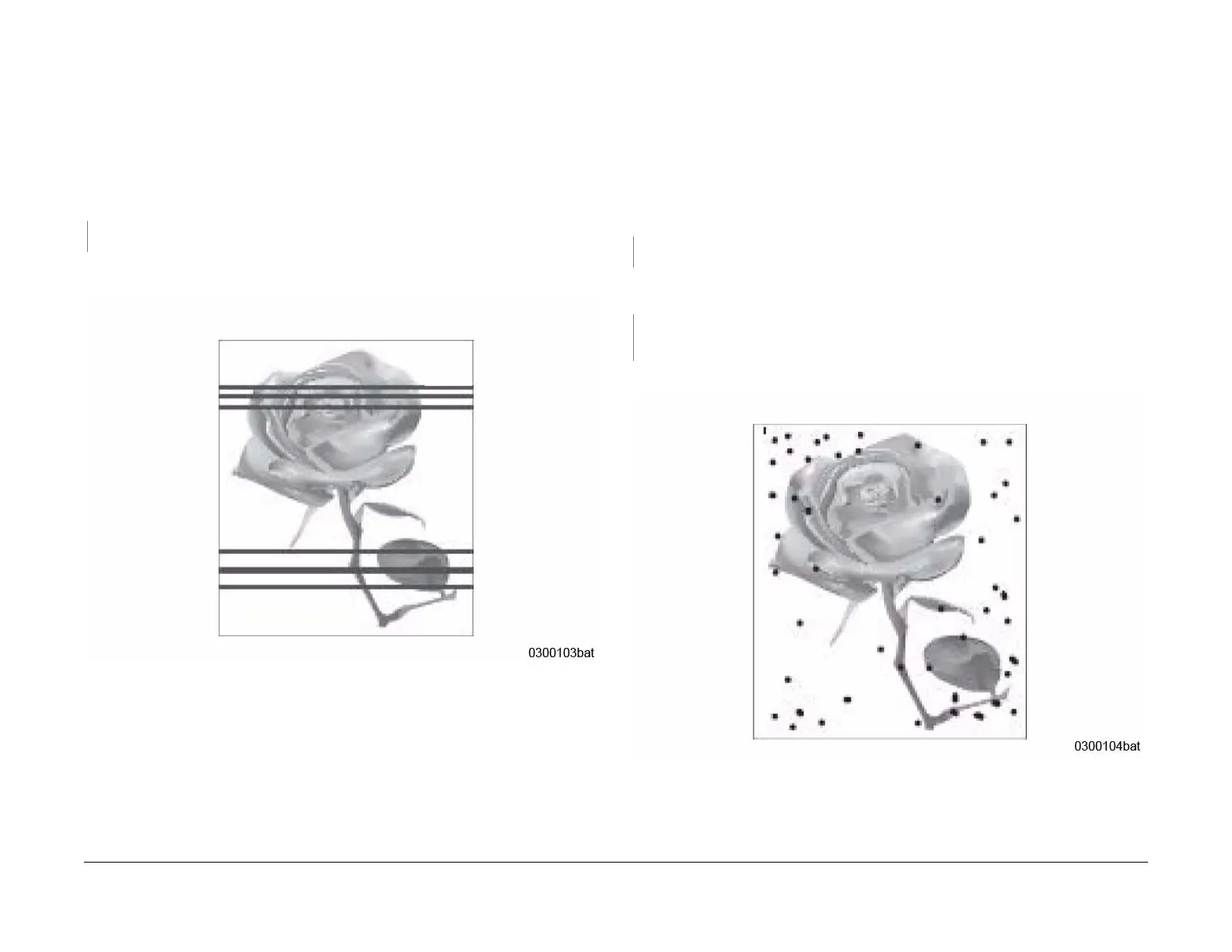

Figure 1 Horizontal black bands
IQ4 Spots RAP
Random or periodic dark areas in the low density areas of a print, or voids in the dark areas of
a print (Figure 1).
Initial Actions
Ensure that the Print Cartridge is firmly seated.
Procedure
Switch off the power.
Check the Transfer Roller for wear, damage and remaining life. The Transfer Roller is OK.
YN
Replace the Transfer Roller, (REP 1.17), PL 5.1.
Check the circuit for the Print Cartridge, refer to BSD 9.1.
Switch on the power and make a test print. The test print looks OK.
YN
Replace the Print Cartridge, refer to WorkCentre® 3025 User Guide for detailed instruc-
tions on how to replace the Print Cartridge.
If problem persists, replace the Fuser Module; (REP 1.19), PL 5.2.
Figure 1 Black spots
