Xerox WorkCentre 3025BI Service Manual

June 2014
5-17
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 5.7
Parts Lists

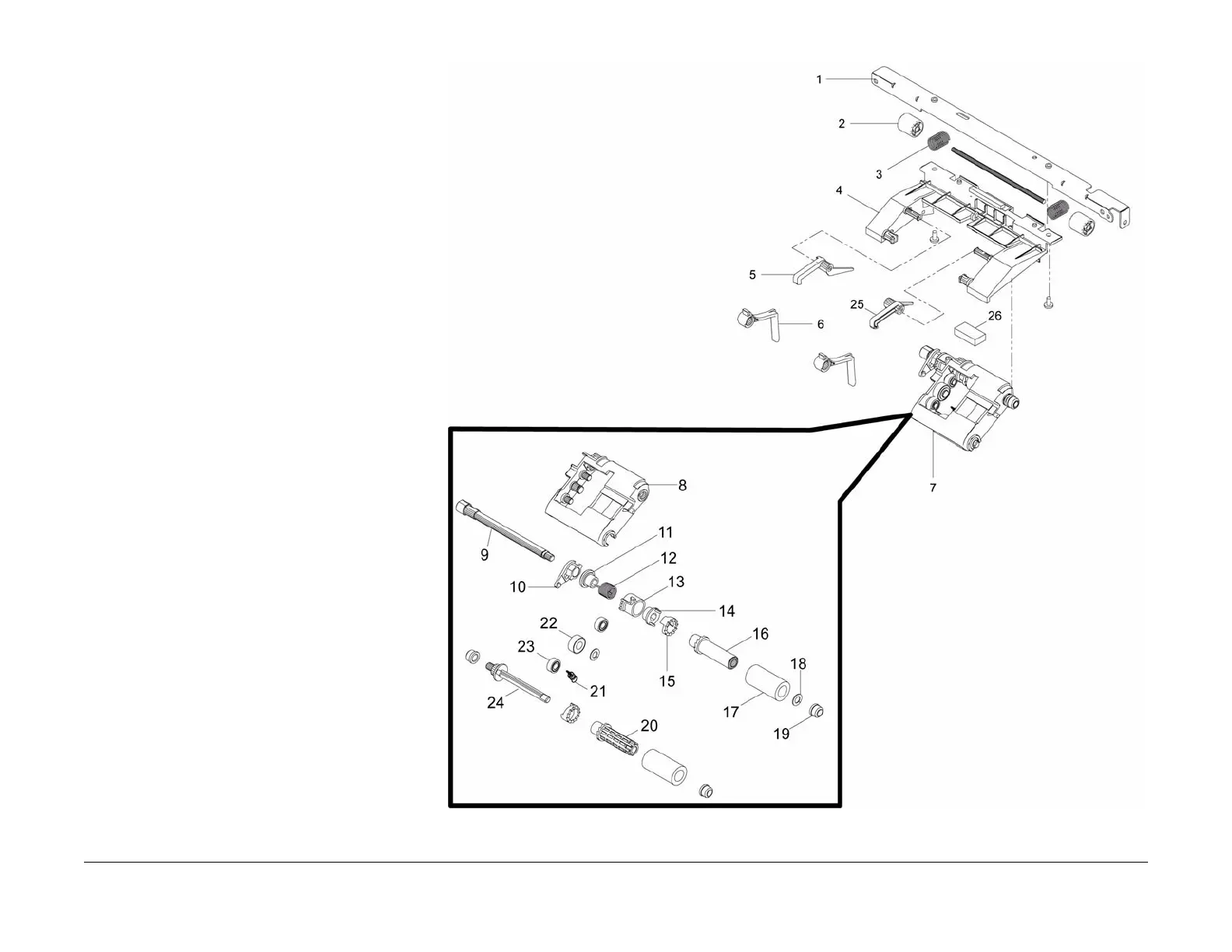

PL 5.7 Paper Feed Assembly
Item Part Description
1 – Paper Feed Holder
2 – Feed Roller
3– Spring
4 – Guide Plate
5 – Left Latch
6 – Paper Stop
7 130N01757 Feed Rolls Assembly
8 – Feed Rolls Housing
9 – Feed Rolls Shaft
10 – Shaft Holder
11 – Bushing
12 – Spring
13 – Collar
14 – Joint Gear
15 – Pickup Clutch
16 – Bushing
17 – Pickup Roller
18 – Washer
19 – Bushing
20 – Sleeve
21 – Spring
22 – Pickup Gear
23 – Feed Gear
24 – Shaft Drive Roller
25 – Right Latch
26 – Sponge Damper
