Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.7
Repairs
REP 1.7 Main PWB
Parts List on PL 1.1 and PL 1.2
Removal
WARNING
Do not perform repair activities with the power on or electrical power supplied to the
machine. Some machine components contain dangerous electrical voltages that can
result in electrical shock and possible serious injury.
DANGER: Ne pas effectuer de dépannnage avec le contact principal activé ou avec l'ali-
mentation électrique appliquée à la machine. Certains éléments de la machine compor-
tent des tensions électriques dangereuses qui peuvent causer un choc électrique et de
graves blessures.
AVVERTENZA: Non effettuare alcuna riparazione con l'alimentazione elettrica inserita.
Alcuni componenti contengono corrente ad alta tensione che può provocare forti
scosse e gravi ferite.
VORSICHT: Es dürfen erst Reparaturarbeiten durchgeführt werden, wenn das Gerät aus-
geschaltet ist oder der Netzstecker nicht mehr mit der Stromquelle verbunden ist. Ein-
ige Komponenten des Gerätes sind stromführend und können daher zu ernsthaften
Verletzungen oder Stromschlägen führen.
AVISO: No realice reparaciones con la máquina encendida o conectada a la corriente.
Algunos componentes de la máquina contienen voltajes eléctricos peligrosos que
pueden producir una descarga eléctrica y causar daños graves.
1. Record the machine serial number from the Data Plate (located on the rear cover beneath
the bar code) or from a Configuration Report printed prior to installing the new PWB. (For
information about how to print Configuration Reports refer to GP 2.)
2. Switch Off the Printer and unplug the Power Cord.
3. Remove the following covers:
a. The Front Cover (REP 1.2).
b. The Right Side Cover (REP 1.1).
c. The Rear Cover (REP 1.3).
4. Disconnect all the connectors on the Main PWB (Figure 1).

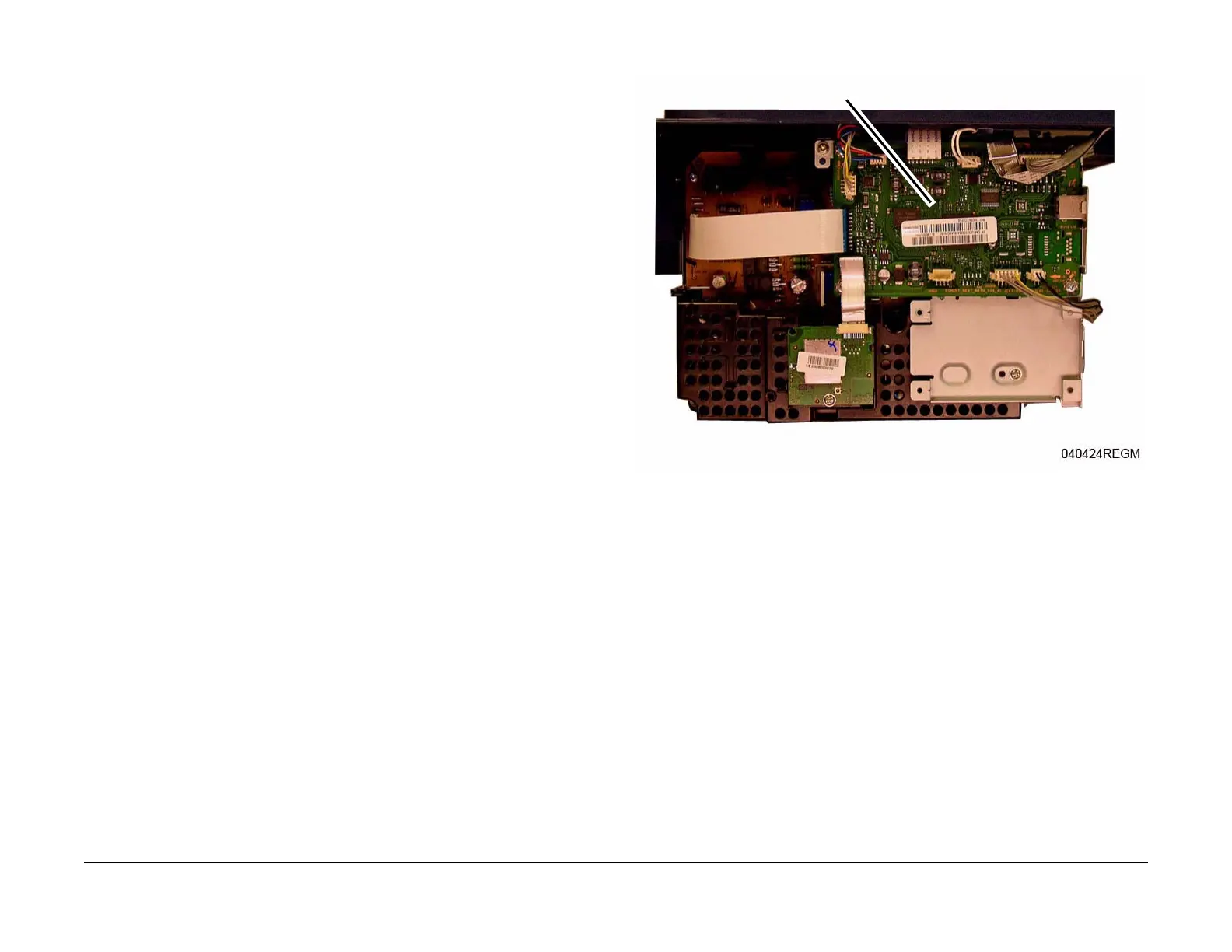

Figure 1 Main PWB Connectors
Main PWB
To Next Page
