Xerox WorkCentre 3025BI Service Manual

June 2014
5-3
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 1.1
Parts Lists

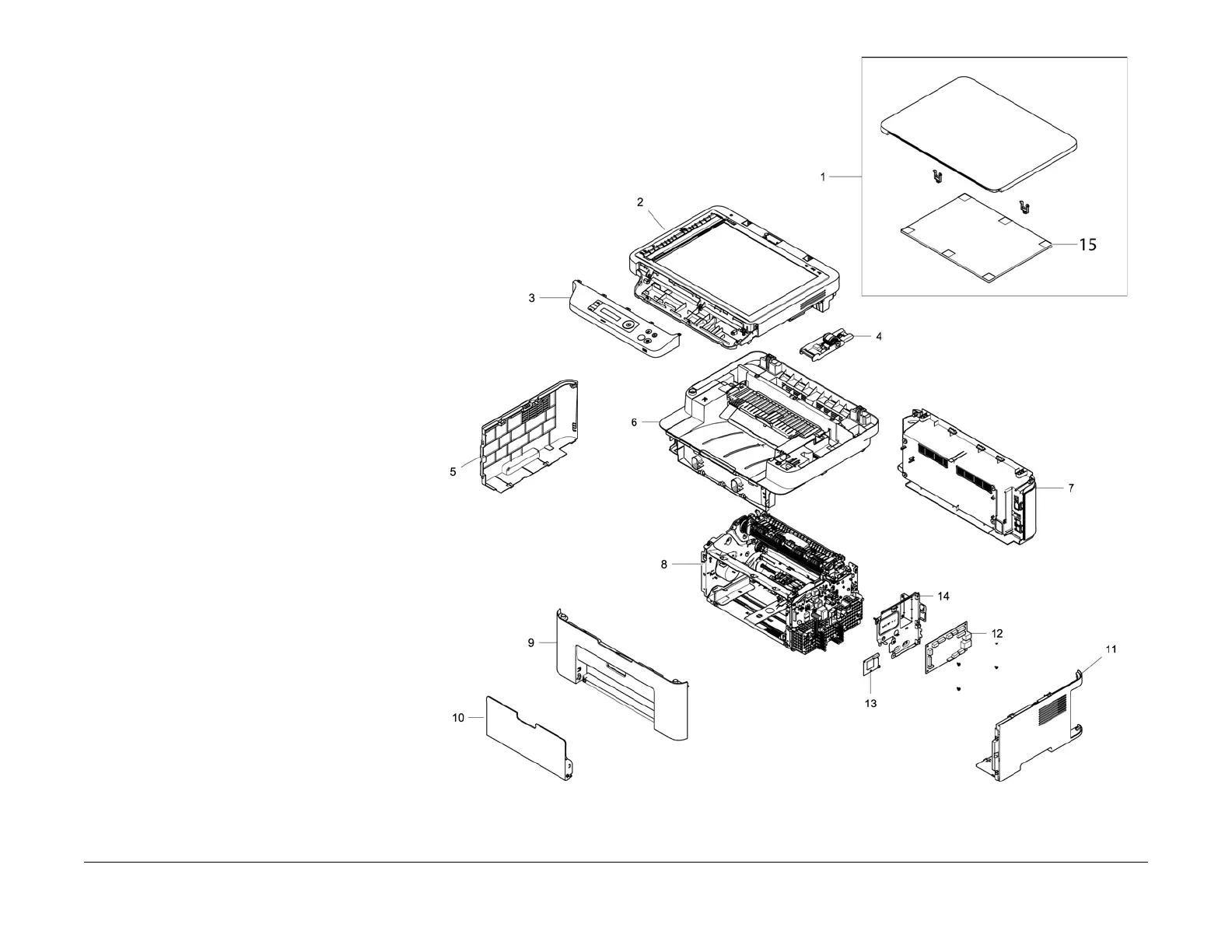

PL 1.1 Main
Item Part Description
1 002N03188 Platen Cover Assembly
– 002N03189 Platen Cover Assembly (Black)
2 090N00184 Scanner (PL 4.1)
– 090N00185 Scanner (Black) (PL 4.1)
3 – Control Panel Assembly (PL 3.1)
4 – Scanner Support Hinge
5 002N03163 Left Cover
– 002N03164 Left Cover (Black)
6 – Middle Cover (PL 2.1)
7 002N03168 Rear Cover
– 002N03169 Rear Cover (Black)
8 – Frame (PL 5.1)
9 002N03174 Front Cover (Black)
– 002N03173 Front Cover
10 002N03176 Paper Support
– 002N03177 Paper Support (Black)
11 002N03180 Right Cover
– 002N03181 Right Cover (Black)
12 140N63718 PWB-MAIN-3025 BI (USB / Wifi)
13 140N63727 WNPC (WiFi) PWB
14 – Controller Shield
15 – Document Pad
