Xilinx SP605 User Manual

42 www.xilinx.com SP605 Hardware User Guide
UG526 (v1.9) February 14, 2019
Chapter 1: SP605 Evaluation Board
Ethernet PHY Status LEDs
The Ethernet PHY status LEDs (DS11-DS13) are mounted in right-angle plastic housings to
make them visible on the connector end of the board when the SP605 board is installed into
a PC motherboard. This cluster of six LEDs is installed adjacent to the RJ45 Ethernet jack
P1.
X-Ref Target - Figure 1-1 3

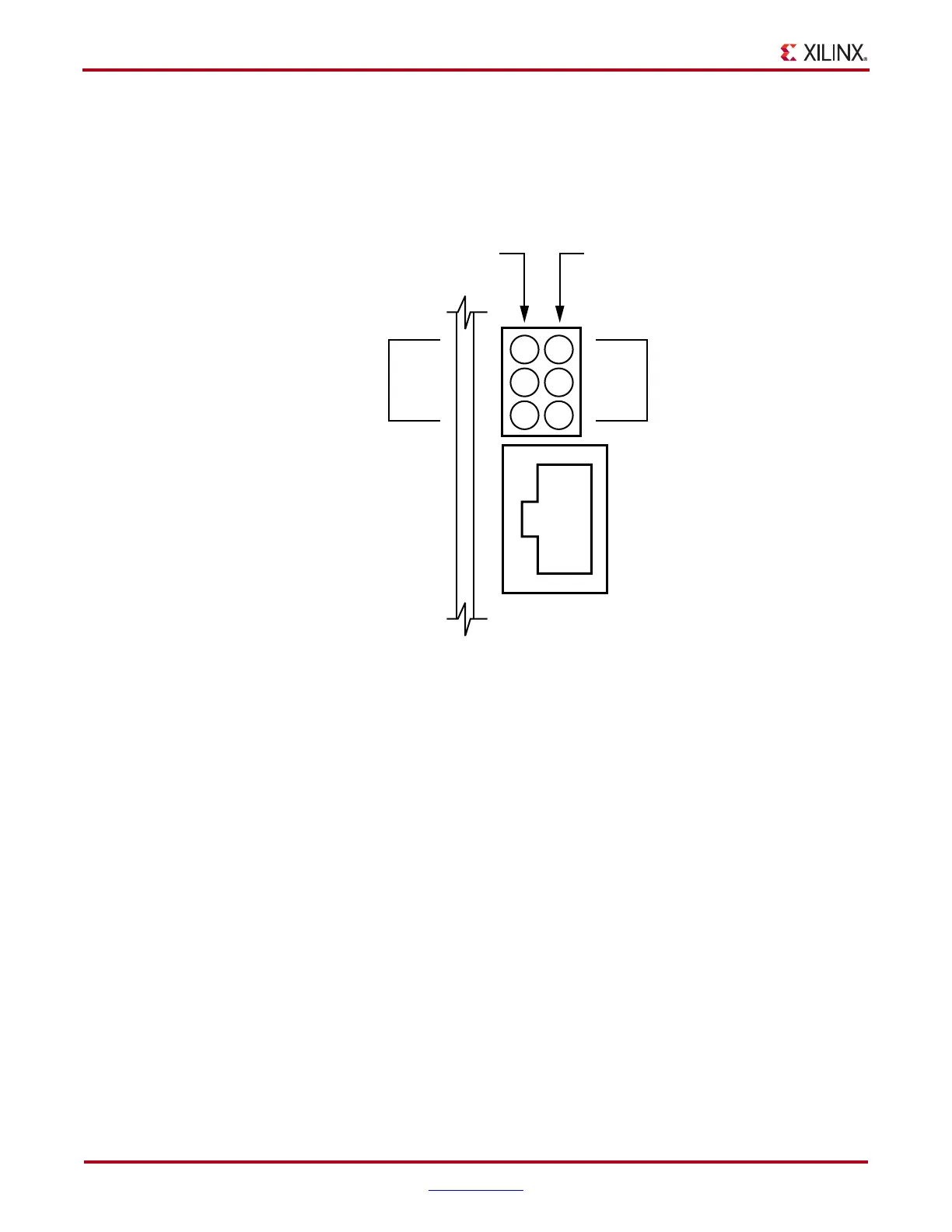

Figure 1-13: Ethernet PHY Status LEDs
Direction
Indicator
Link Rate
(Mbps)
DUP
TX
RX
10
100
1000
P1
End view of SP605 Ethernet jack and
status LEDs when installed vertically
in a PC chassis
UG526_13 _092409
