Xilinx SP605 User Manual

48 www.xilinx.com SP605 Hardware User Guide
UG526 (v1.9) February 14, 2019
Chapter 1: SP605 Evaluation Board
User SMA GPIO
The SP605 includes an pair of SMA connectors for GPIO as described in Figure 1-19 and
Table 1-27.
X-Ref Target - Figure 1-1 9

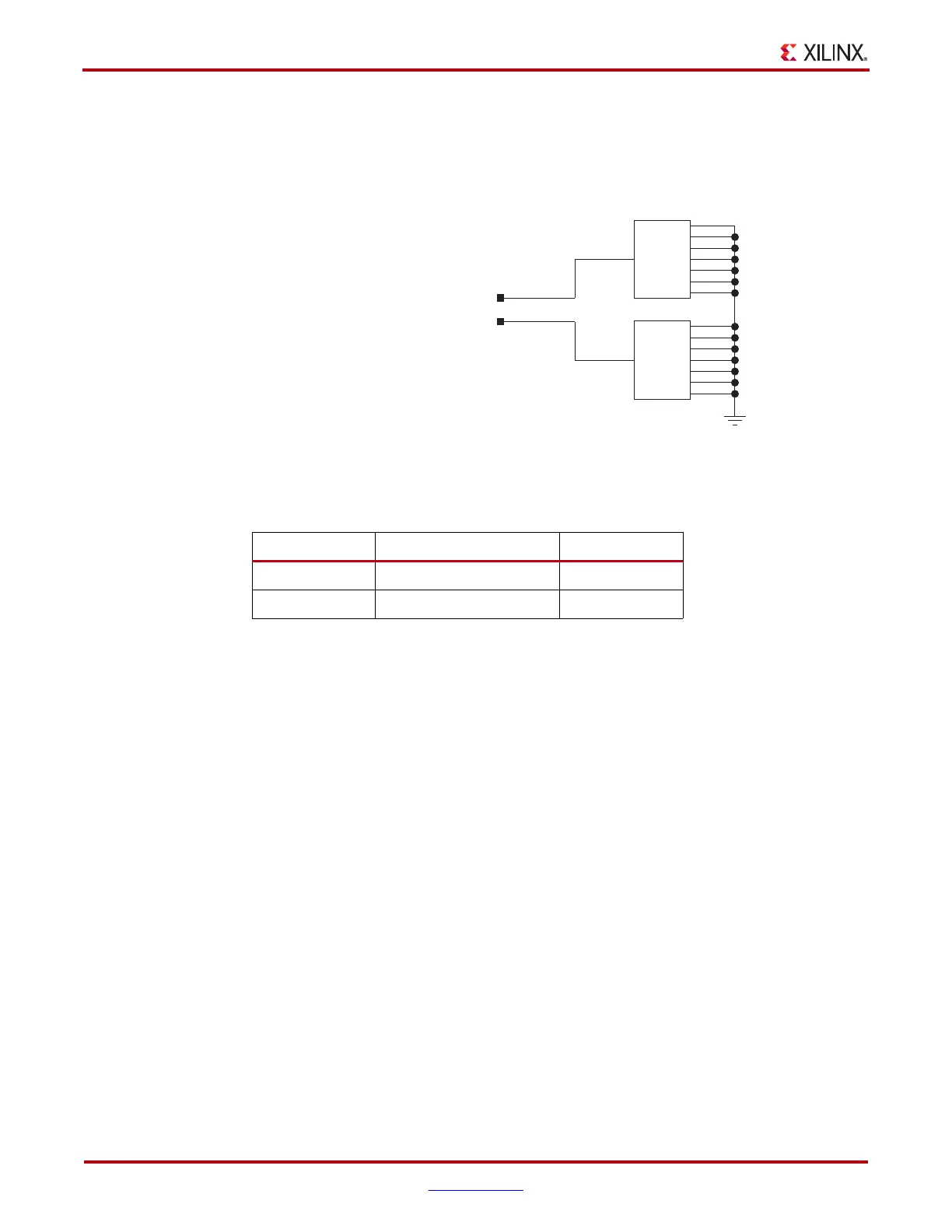

Figure 1-19: User SMA GPIO
Table 1-27: User SMA Connections
U1 FPGA Pin Schematic Net Name GPIO SMA Pin
A3 USER_SMA_GPIO_N J39.1
B3 USER_SMA_GPIO_P J40.1
GND1
GND2
GND3
GND4
GND5
GND6
GND7
SIG
GND1
GND2
GND3
GND4
GND5
GND6
GND7
SIG
USER_SMA_GPIO_P
USER_SMA_GPIO_N
1
8
7
6
5
4
3
2
J40
32K10K-400E3
1
8
7
6
5
4
3
2
32K10K-400E3
J39
UG526_19 _092409
