Chapter 1: SP605 Evaluation Board
16. User I/O
The SP605 provides the following user and general purpose I/O capabilities:
• User LEDs
• User Pushbutton Switches
• User DIP Switch
• User SIP Header
• User SMA GPIO
User LEDs
The SP605 provides four active-High green LEDs as described in Figure 1-15 and
Table 1-23.
X-Ref Target - Figure 1-1 5

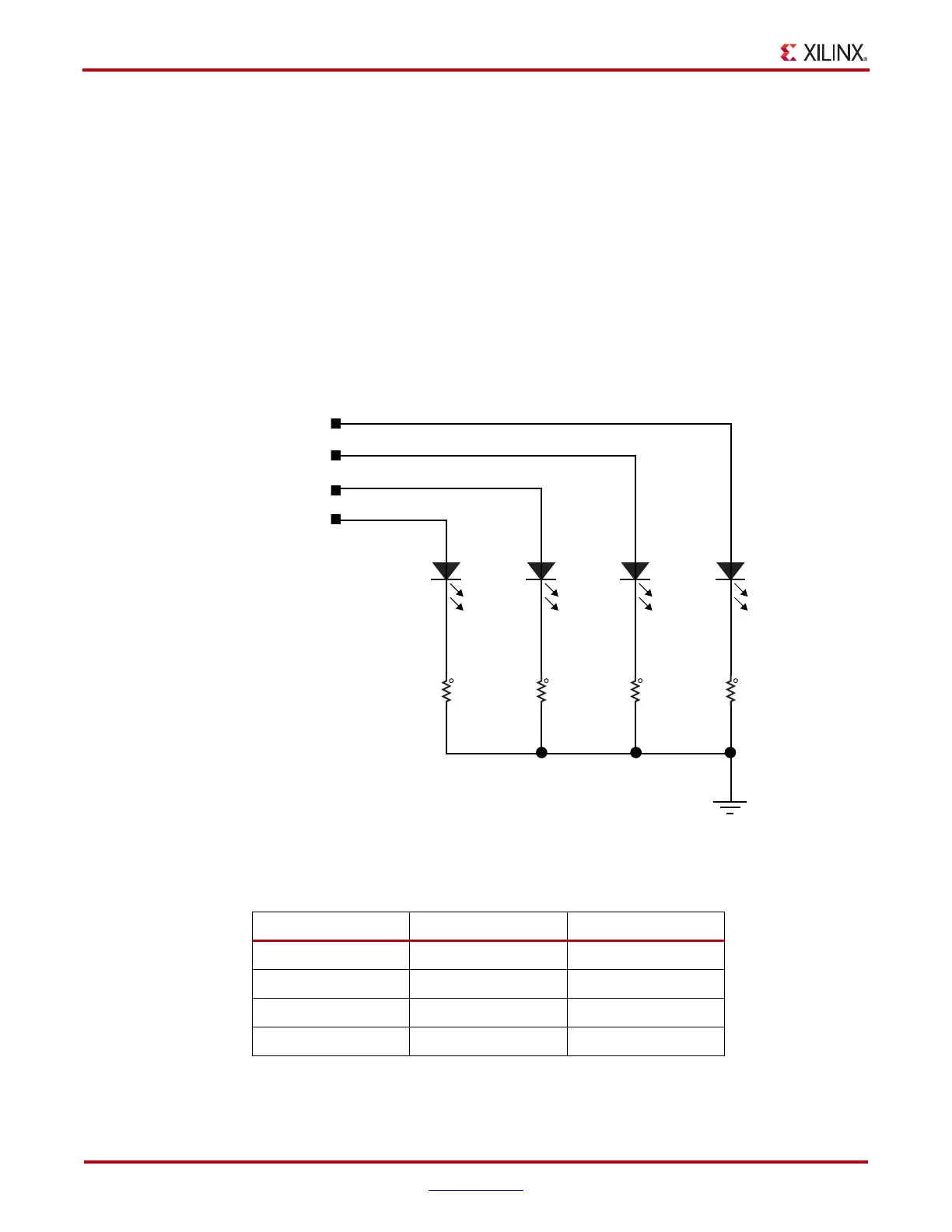

Figure 1-15: User LEDs
Table 1-23: User LED Connections
U1 FPGA Pin Schematic Net Name Controlled LED
D17 GPIO_LED_0 DS3
AB4 GPIO_LED_1 DS4
D21 GPIO_LED_2 DS5
W15 GPIO_LED_3 DS6
R71
27.4
1%
1/16W
1
2
LED-GRN-SMT
2
DS6
1
UG526_15_092409
R72
27.4
1%
1/16W
1
2
LED-GRN-SMT
2
DS5
1
R73
27.4
1%
1/16W
1
2
LED-GRN-SMT
2
DS4
1
R74
27.4
1%
1/16W
1
2
LED-GRN-SMT
2
DS3
1
GPIO LED 3
GPIO LED 2
GPIO LED 1
GPIO LED 0
