Xilinx SP605 User Manual

SP605 Hardware User Guide www.xilinx.com 13
UG526 (v1.9) February 14, 2019
Detailed Description
Detailed Description

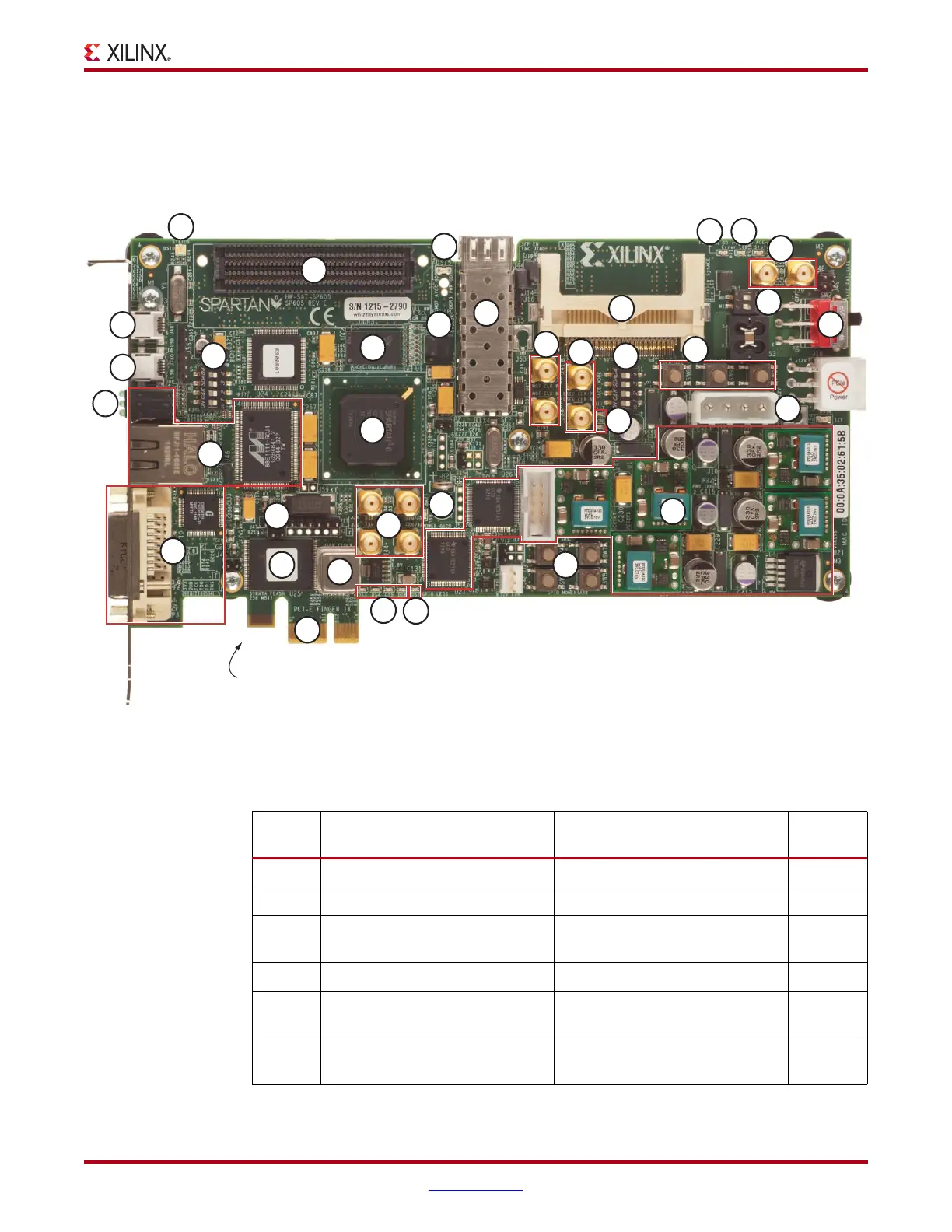

Figure 1-2 shows a board photo with numbered features corresponding to Table 1-1 and
the section headings in this document.
The numbered features in Figure 1-2 correlate to the features and notes listed in Table 1-1.
X-Ref Target - Figure 1-2
Figure 1-2: SP605 Board
15e
13
16b
19
7a
15h
1
2
3
4
8
15g
5
17c
9
3, 14 (on back side)
7b
10
18
6
12
16c
11
17b
15b 15a
17a
19b
15d
UG526_02 _092412
15c
8
7c
16d
17d
16a
15f
Table 1-1: SP605 Features
Number Feature Notes
Schematic
Page
1 Spartan-6 FPGA XC6SLX45T-3FGG484 FPGA 2–7
2 DDR3 Component Memory Micron MT41J64M16LA-187E 9
3
SPI Header Ext. x4
SPI Flash x4 (on backside)
Winbond W25Q64FVSFIG 18
4 Linear BPI Flash x16 Numonyx JS28F256P30T95 19
5
System ACE CompactFlash
Socket
XCCACE-TQ144I Controller 20
6
USB UART (USB-to-UART
Bridge)
Silicon Labs CP2103GM 32
