VB5N series inverter
52
4-2-2. Parameters of frequency setting (Group P1)
Time constant of analog filter
The inverters filter time for sample value when set the frequency by analog channel. If the wiring is too long or noise is too
serious, increase this parameter to improve the frequency stability. The longer the filter time, the stronger the noise immun-
ity ability. However, the reponse will be slower.
Frequency of VI min setting
Range: 0.00~upper limit of frequency
Frequency of VI max setting
Range: 0.00~upper limit of frequency
Frequency of CI min setting
Range: 0.00~upper limit of frequency
Frequency of CI max setting
Range: 0.00~upper limit of frequency
Max input pulse frequency of PULSE
Frequency of PULSE min setting
Range: 0.00~upper limit of frequency
Frequency of PULSE max setting
Range: 0.00~upper limit of frequency

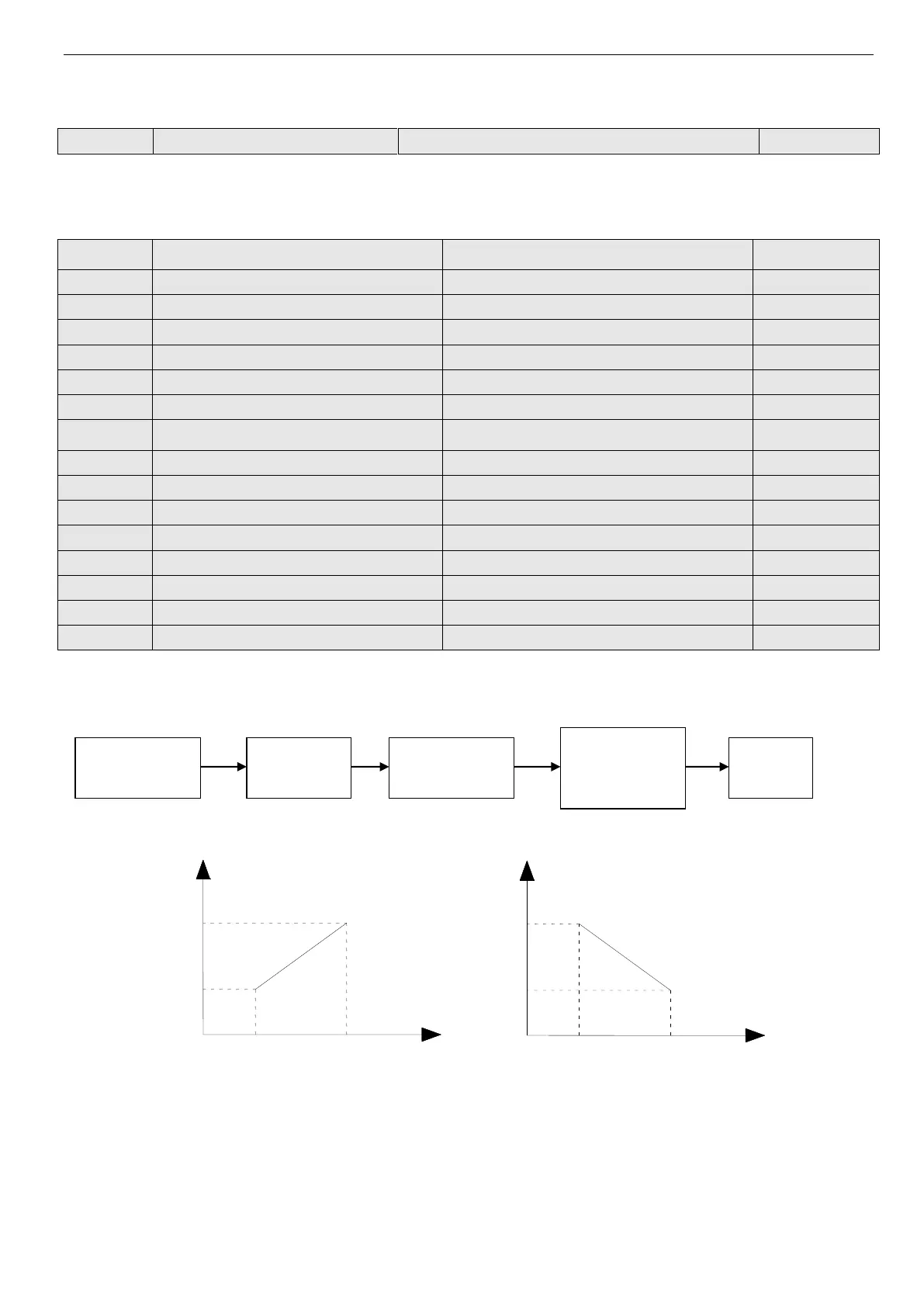

When VI, CI and PULSE are selected as open loop frequency setting channel, the relationship between setting and the
present frequency is shown below:
The relationship between VI and setting frequency:
A：VI set frequency Amin：min settings Fmin：frequency of min settings
Amax：max settings Fmax：frequency of max settings
Setting frequency
characteristics
curve
