Operator Cab
Operation Manual 36
Travel Select Lever
The travel select lever change the direction of travel; it has
three (3) positions: FORWARD, NEUTRAL, and REVERSE.
Controls and Indicators
Travel Select Lever
Position Purpose
F (Forward) UP Position (away from the operator)
N (Neutral) CENTER Position
R (Reverse) DOWN Position (toward the operator)
Figure 25. Travel Select Lever
The travel select lever automatically locks when it is in the
NEUTRAL position. The operator must raise and move the
travel select lever when changing to the FORWARD or REVERSE
position.
NOTE: The travel select lever must be in the NEUTRAL
position to start the forklift.
NOTE: The back-up alarm automatically sounds when the
travel select lever is in the REVERSE position.
F
R
N
One (1) rear-view mirror is mounted on the right side of the
chassis.

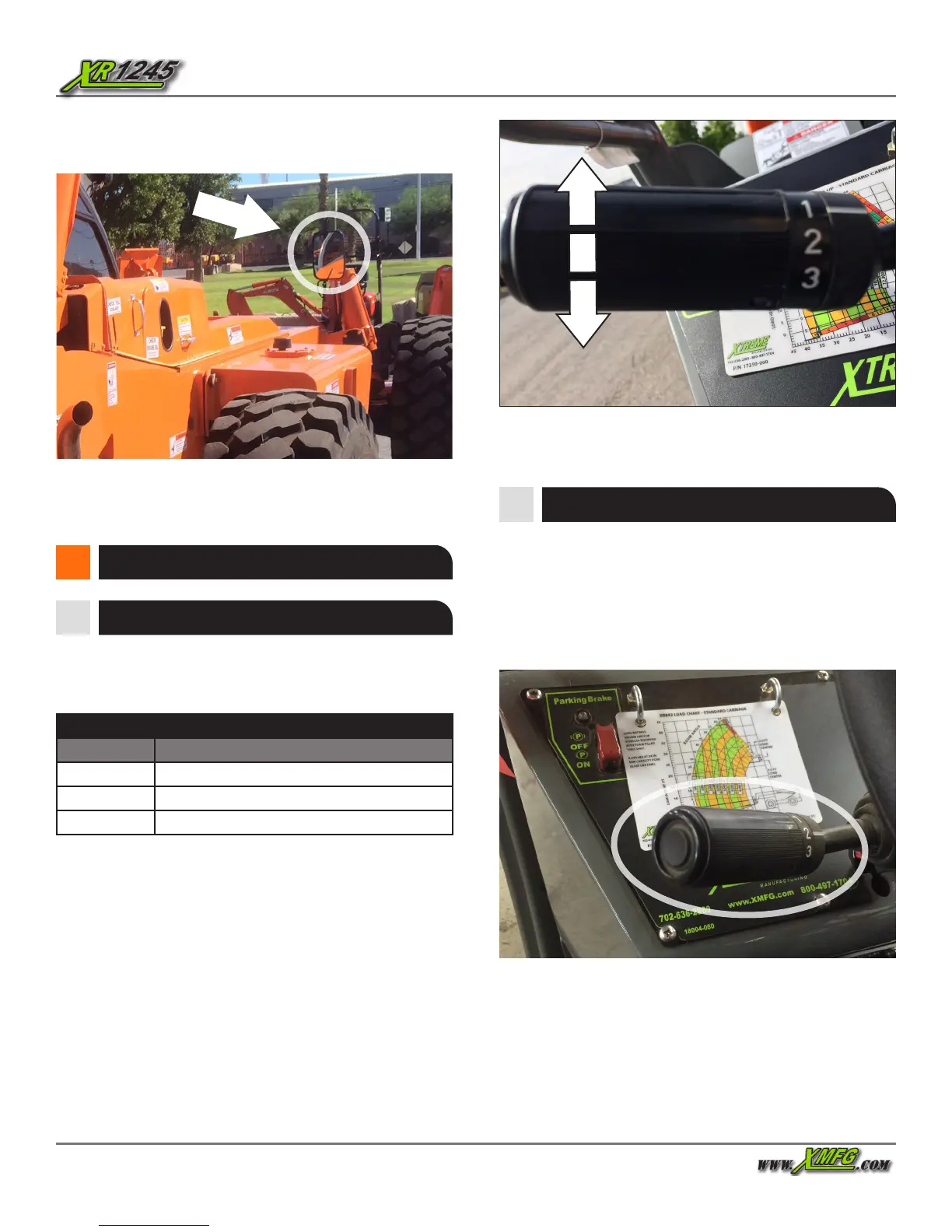

Figure 24. Chassis-Mounted Mirror
Gear Select Switch
The Gear Select switch has a twist grip handle with three (3)
positions: 1 - FIRST, 2 - SECOND, and 3 - THIRD.
NOTE: The forklift can be operated in three (3) forward and
three (3) reverse gears.
Figure 26. Gear Select Switch
