Operator Cab
Operation Manual 44
Frame Level Indicator
The frame level indicator is mounted on the upper right
corner of the operator’s cab. The frame level indicator allows
the operator to view if the forklift has been positioned in a
level condition.

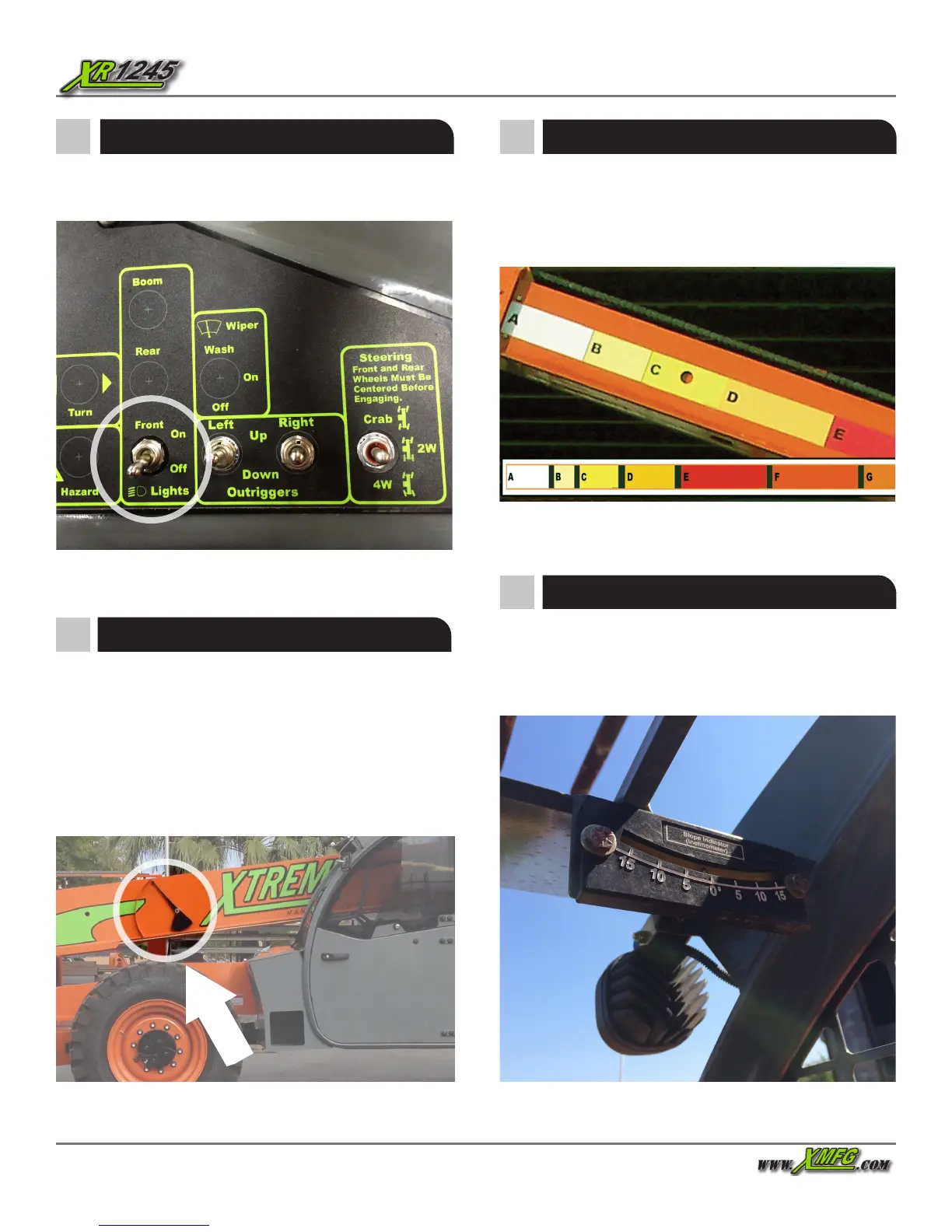

Figure 53. Frame Level Indicator
Boom Extend Letters
As the boom is extended, the boom extend letters on the left
side of the boom are visible to the operator. These letters
indicate boom extension as it corresponds to the load capacity
charts.
Figure 52. Boom Extend Letters
Boom Angle Indicator
The boom angle indicator is located on the left side of the
boom and is visible from the operator’s seat. Use the boom
angle indicator to determine the boom angle when referring
to load capacity charts. Refer to the LOAD CAPACITY CHARTS
section of this manual for more information.
NOTE: The boom angle indicator is a plumb arrow with angular
graduations from -5 to +70
Figure 51. Boom Angle Indicator
Lights Switch
Flip the toggle switch to ON to turn the front lights on.
Figure 50. Lights Switch
