Operation
Operation Manual 60

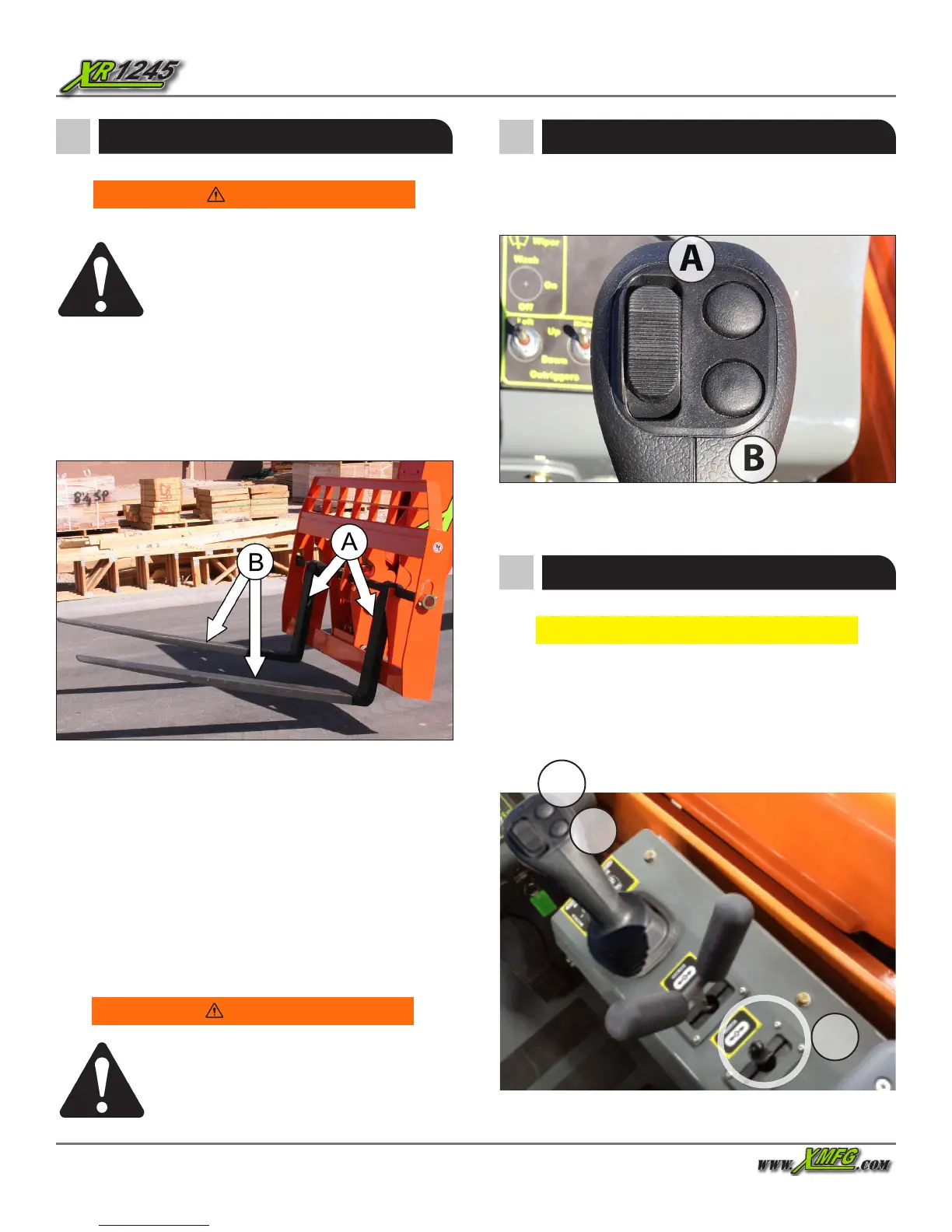

Standard Carriage Operation
The standard carriage uses manually adjustable forks and can
be tilted up or down by using the thumb stick on the control
handle.
Figure 67. Attachment Tilt Control Switch.
(A) Attachment Tilt Down (B) Attachment Tilt Up
Fork Positioning Carriage Operation
Caution
Do not adjust forks when Fork Positioning Carriage is load-
ed. Adjusting forks when carriage is loaded may result in
loss of load or carriage damage. Always use the Fork Posi-
tioning control handle to adjust the forks BEFORE loading
the carriage.
Figure 68. Fork Positioning Control Handle
Figure 66. Fork Ratings
(A) Maximum Load Capacity Rating (B) 24 inch Load Center
Because forks are always used in multiples, the total rating
of any combination of forks will be the sum of their rated
capacity. Other than block forks, all forks should be used in
matched pairs. Block forks should be used in matched sets.
The maximum load capacity for this forklift is 8,000 lbs. The
matched pair or set of forks used on this forklift should have
total load ratings which equal or exceed 8,000 lbs. When the
load rating of the forklift diers from the load capacity of the
forks, the lower value becomes the overall load capacity.
Fork Ratings
Warning
DO NOT exceed forklift capacity of 12,000
pounds. The total rated capacity of the forks
being used must equal or exceed forklift
capacity. Forks can break causing loss of load
and could result in death or serious injury.
All approved forks for this forklift are marked with a maximum
load capacity rating (A). This rating is stamped on the left edge
of the fork just below the fork pivot shaft. The rating listed is in
U.S. pounds and is based upon a 24 inch load center (B). This
rating species the maximum load capacity that the individual
fork can safely carry at a maximum load center of 24 inches.
1
2
3
Warning
DO NOT use attachments that are corroded
excessively.
