Operator Cab

Operation Manual 42

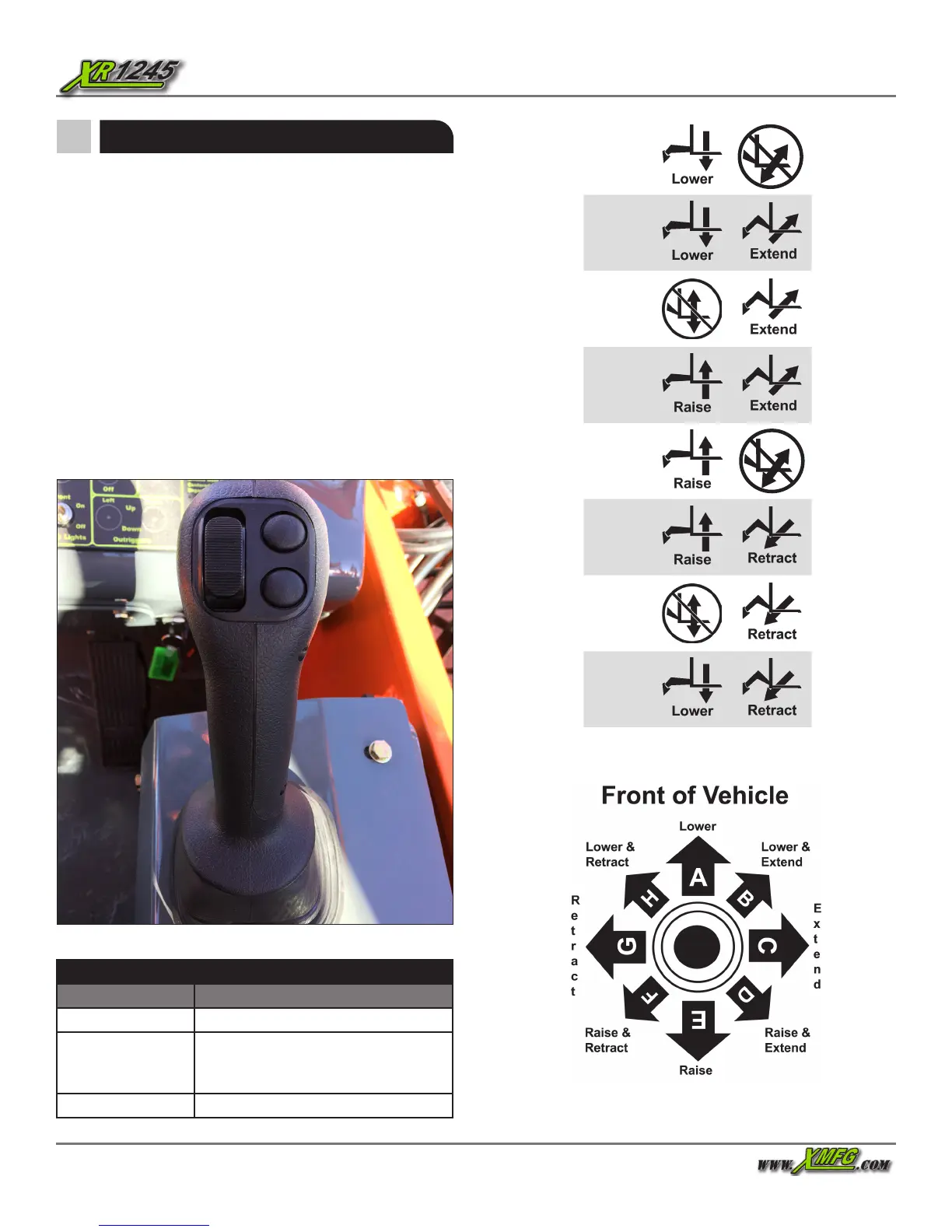

Figure 44. Boom Control Handle Functions

Figure 45. Boom Control Handle Functions

Boom Control

The boom control handle has variable motions from the

center position that control boom and tilt functions. The

boom control handle is used to raise, lower, extend, retract the

boom, tilt the carriage (or attachment), and control auxiliary

functions (when equipped with a carriage or attachment with

additional functions).

NOTE: The boom control handle is a variable speed control.

Function speed is proportional to handle movement. The

more the handle is moved in the appropriate direction, the

faster the corresponding function will occur.

NOTE: Increasing engine speed can increase boom lift and

extend speed.

NOTE: Two (2) boom functions can be performed at the

same time by moving the handle into the corner between (2)

functions

Figure 43. Boom Control Handle

Boom Control Handle Functions

Function Purpose

Aux Select Button Control auxiliary functions

Enable Trigger Trigger must be enabled for other

functions of the control handle to

operate

Tilt Switch Control carriage tilt (up/down)
