Operation
Operation Manual 50

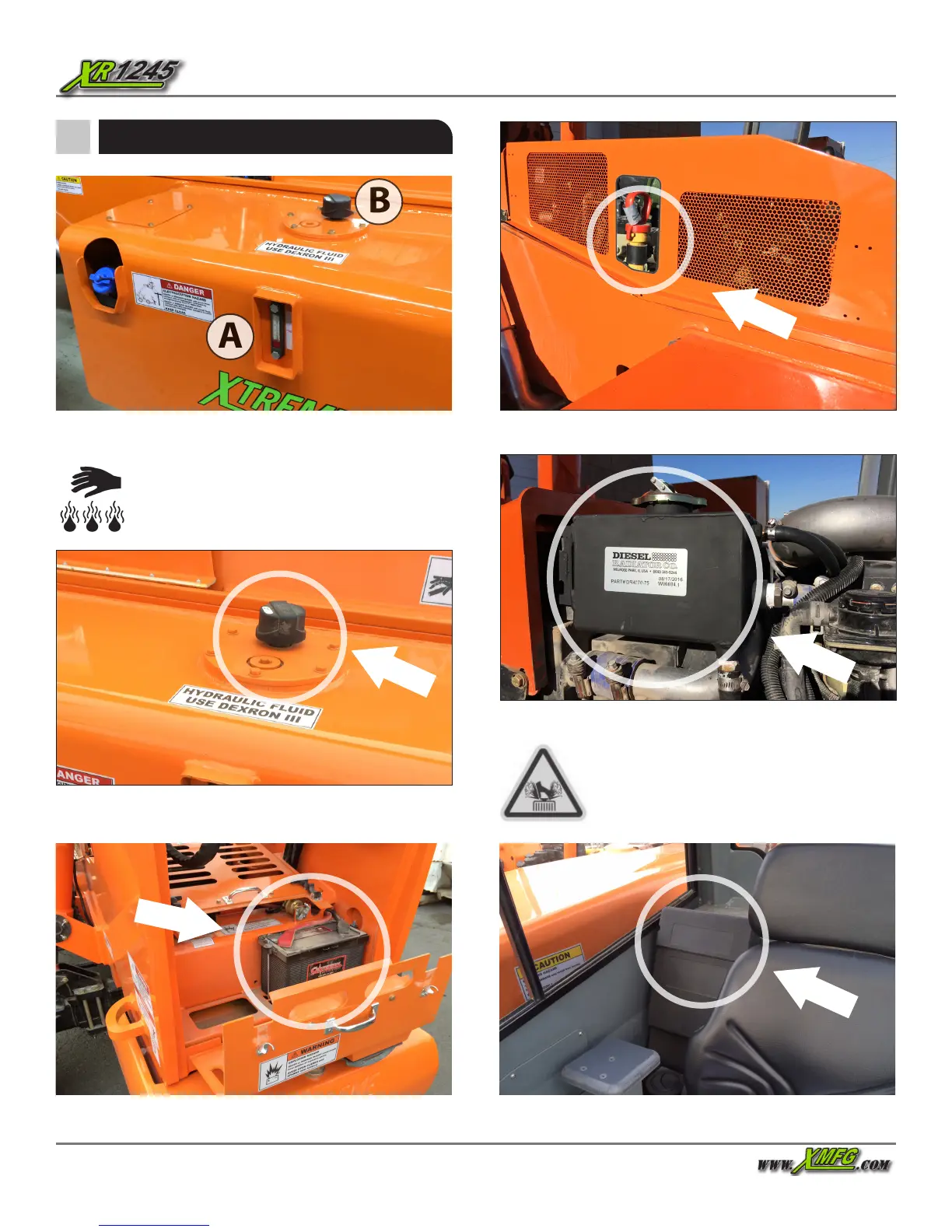

Figure 56. Add DEF (Diesel Exhaust Fluid) when the Low DEF Level
indicator is displayed.
Figure 55. Check Hydraulic Oil Sight Gauge (A); Add Hydraulic Oil, if Nec-
essary (B).
Operator Maintenance
Figure 58. Check Engine Oil Level. Add Engine Oil (API CJ-4), If Necessary.
Figure 57. Check Battery Case and Terminals
Figure 59. Check Coolant Reservoir Level. Add Coolant, if Necessary.
Figure 60. Store Operation Manual in Protective Case
A
B
DO NOT remove a hydraulic tank ller cap un-
less it is cool enough to touch with bare hands.
Warning! HOT COOLANT. Never remove the
radiator cap while the engine is hot. The
cooling system is under pressure. Hot cool-
ant could cause severe burns or eye injury.
Wear protective clothing and safety glasses.
